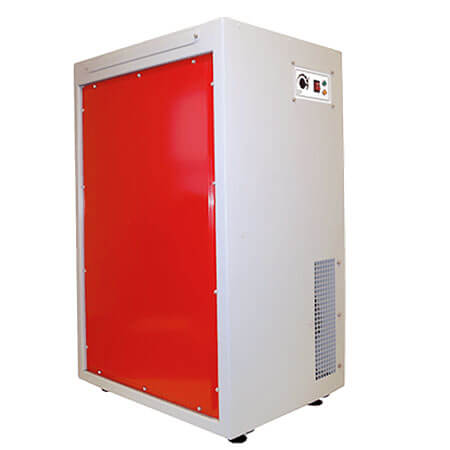

Ebac Freestar Air-to-Air Exchange Dehumidifier Removes 105 Pints per Day

The Ebac FreeStar Commercial and Industrial Dehumidifier Removes over 105 Pints of Moisture per Day as Humid, Ambient Air Circulates Through It.

The Ebac FreeStar low-temperature dehumidifier is a truly impressive air drying machine. It's a high capacity powerhouse capable of removing over 105 pints of moisture per day. It's effective in areas up to 1,800 square feet over a wide range of temperature and humidity levels. Its Air-to-Air heat exchange provides pre-cooling and drying allowing the unit to reduce the relative humidity by more than 20%. The high capacity backward curved fan will maximize air delivery over long distances. The Ebac FreeStar dehumidifier is a high capacity, high efficiency and quiet unit designed to suit your harshest HVAC needs.

Ebac FreeStar Commercial Dehumidifier Key Design Features

• High Capacity, High Efficiency (EER 10.8)
• Two-stage cooling & drying
• Low Amp Draw
• Washable Inlet Filter
• High Static Backward Inclined Fan
• Adjustable Feet
• Ground Fault Interrupter
• Internal High Capacity Condensate Pump
• Drying & Defrost Indicator Lamps
• Internal / External Humidistat Options
• Includes 25' detachable drainage hose
• Epoxy Powder Coated Chassis
• Ebac's unique "Reverse Cycle" defrosting system, for effective operation in low ambient temperatures

Ideal applications for the FreeStar Commercial and Industrial Dehumidifier include Warehouses - Basements - Factories - Sports Halls - Storage Areas - Laboratories - Oil Rigs - Agriculture - Kitchens - Pumping Stations - Motel / Hotel - Stadiums - Ships / Barges

How The Ebac FreeStar High Capacity Dehumidifier Works

The FreeStar dehumidifier, with its two-stage cooling process and temperature-sensitive, defrost control, ensures optimum performance throughout the units' full operating temperature range. Moisture is removed from the air by an efficient refrigeration process. Humid air is drawn into the dehumidifier and passes through an "Air to Air" Heat Exchange. This process pre-cools or dries the air, before being passed over the Evaporator Coil, which further cools the air below its dew point. Moisture forms on the evaporator coil and is collected in the condensate tray. This cool, dry air then passes back through the Air to Air Heat Exchange, in the opposite direction, providing cooling for the incoming air.

Once the air passes over the Condenser Coil, the air is re-heated and warmer, 'Super Dry Air' leaves the dehumidifier. As the air continuously circulates through the dehumidifier, it gradually reduces the relative humidity within the area.

Whether a flash flood, hurricane, heavy rains or water main break, it's vitally important to restore the damaged area as soon as possible to protect your property and more importantly, your health from microorganisms, mold, and bacteria. Without dehumidification, these harmful organisms will continue to grow and ultimately cause further damage.

Ebac FreeStar Air to Air Exchange High-Performance Dehumidifier Specifications

Dimensions	19" (H) x 24" (W) x 38" (D)
Weight	160 lbs.
Moisture Removal	105 pints per day (80°F, 60% RH)
Operating Temperature Range	33°F - 105°F
Effective Area Coverage	10,594 cubic feet
Refrigerant Type	R407C
Airflow	538 CFM
Noise Level	57 d(B)A
Compressor	Reciprocating
Electrical	115V, 60 Hz, 1 Phase | 8 Amps (max) | 900 Watts
Added Features	Air to Air Heat Exchanger Washable inlet filter Includes an Internal High Capacity Condensate Pump Includes 25' detachable drain hose
Ebac FreeStar Dehumidifier Owner's Manual
Ebac FreeStar Dehumidifier Product Brochure / Spec Sheet
What's In The Box?	Ebac FreeStar Dehumidifier Quick-release hose coupling 25 feet of PVC drainage tube Free issue socket Product Manual
Warranty	One-year unconditional warranty against any manufacturing defects in workmanship or material.
