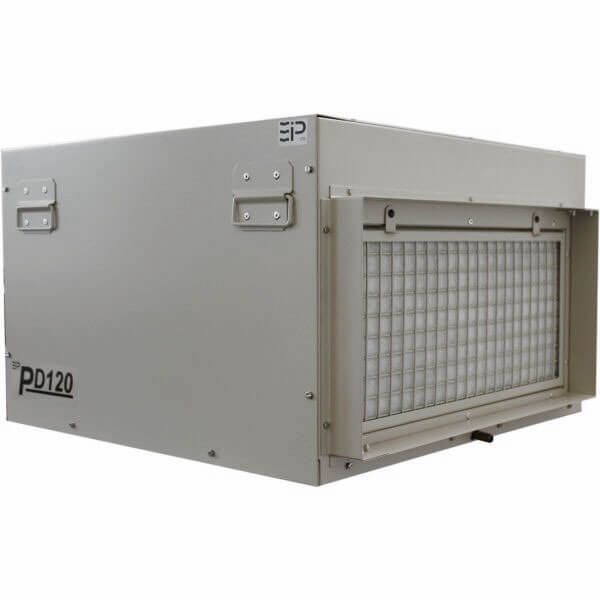

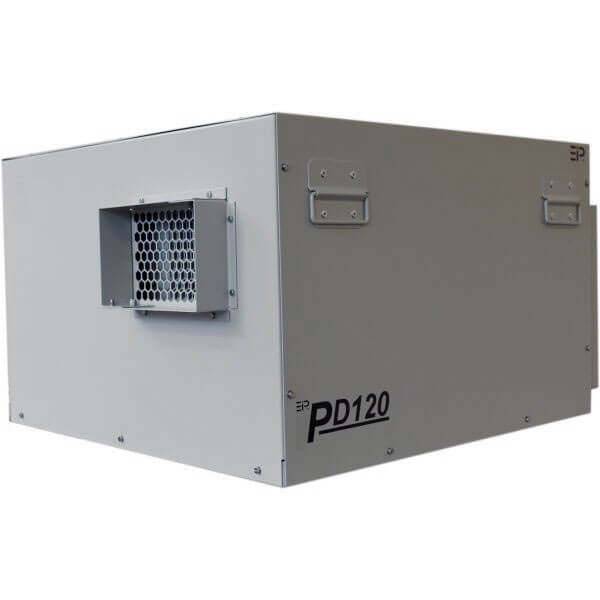

Ebac PD-120 Residential Pool and Spa Dehumidifier Removes 110 Pints per Day

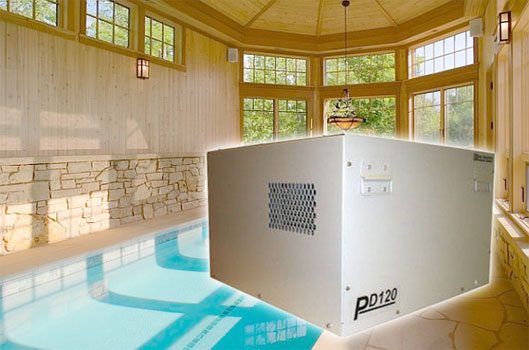

The Ebac PD120 Pool Dehumidifier is Designed for Residential Swimming Pools, Hot Tubs & Spas

The Ebac PD-120 heavy-duty pool dehumidifier is a versatile workhorse, designed to eliminate high humidity problems in damp, wet environments. Swimming pools, aerobics rooms, locker rooms, spas, etc., have all found this rugged dehumidifier to be more than adequate at removing high levels of indoor moisture. The impressive PD-120 swimming pool dehumidifier can be easily moved from site to site or can be permanently mounted and ducted to suit a variety of applications.

The Ebac PD120 swimming pool & spa dehumidifier removes over 110 pints of moisture in damp interior spaces. Chemicals and water vapor from your pool or spa continuously evaporate into the air increasing your humidity level. Humid air will soak its way through almost anything and will also condense on your walls, roof, floor, and windows causing corrosion, wood rot, mold, and bacteria growth - a very unhealthy environment. To protect your property investment, you need to dry out your home and keep it dry all year long with a properly sized spa or pool dehumidifier.

How the Ebac PD-120 Swimming Pool Dehumidifier Works

1. Humid air is drawn into the unit by a fan.
2. The moist air passes over a cold surface.
3. As the air is cooled, its moisture condenses.
4. Collected moisture drips into the container.
5. Air is warmed by the heat recovery system.
6. Air passes back into the room 2°C warmer and considerably dryer.
7. Defrost system automatically de-ices the unit as necessary.
8. The unit switches off automatically when the water container is full.
9. When the unit achieves the selected level of dryness, it switches off automatically.

Features of the Ebac PD-120 High Capacity Swimming Pool Dehumidifier

The Ebac PD120 Pool Dehumidifier is a high capacity dehumidifier equipped with several practical features. It's temperature-sensitive defrost ensures moisture removal across its wide operating temperature range. Underside runners, with pre-drilled mounting points, along with optional duct flanges ensures installation time is kept to a minimum.

• Adjustable control remote humidistat maintains the desired level of dryness. Because the PD-120 Swimming Pool dehumidifier is equipped with an external remote humidistat, it automatically switches on and off to save energy and expense by maintaining the desired level of humidity with intermittent operation.
• A convenient drain point for condensate collection with hose attachment.
• Ebac's unique "Reverse Cycle" defrosting system, for effective operation in low ambient temperatures.
• Quiet, 2-speed fan.
• Self-contained for quick and easy installation. No ductwork required.
• Can be ducted if desired
• Sturdy, military-type carrying handles.
• Completely enclosed coils in an epoxy-coated, heavy gauge steel case.
• Optional inlet/outlet duct flanges.
• On/Off Control (via the humidistat)
• Gravity Drain - 1/2" O/D
• Washable air filter

Ideal applications for the Ebac PD120 Swimming Pool Dehumidifier include Swimming Pool Areas - Residential Pools - Therapeutic Pools - Spas - Whirlpools - Health & Fitness Centers - Aerobic Rooms - Racquetball / Handball Courts - Workout Areas - Locker Rooms - Laundry Rooms - Aquariums - Shower Rooms

  > > Fill out our Dehumidifier Sizing Form Here < <

If you're interested in the Ebac PD-120 for your indoor pool room or spa, please have the following information ready when contacting us;

• What city and state is the room located?
• What are the dimensions of your poolroom (length times the width times the height of the ceiling)?
• Describe the quality of construction? (how well is it sealed, what material was used for the walls and ceiling)
• What is the present relative humidity in the room?
• What is the desired relative humidity to be achieved?
• What is the average air temperature in the room?
• What is the surface area of the pool? (square footage- length x width)
• What is the temperature of the water?
• Is the pool covered when not in use? (If it is, how many hours is it not covered)
• Besides a pool, is there a spa/hot tub in the room?
• If there is a spa, what is the surface area? (square footage- length x width)
• If there is a spa, what is the temperature of the water?
• If there is a spa, is it covered when not in use? (If it is, how many hours is it not covered)

Ebac PD-120 Residential Spa and Swimming Pool Dehumidifier Specifications

Dimensions	17.5" (H) x 27" (W) x 26" (D)
Weight	176 lbs.
Moisture Removal	107 pints per day (80°F, 60% RH) >20 gallons per day @ saturation
Operating Temperature Range	33°F (1°C) - 95°F (35°C)
Effective Coverage Area	2,000 square feet
Refrigerant Type	R407C
Airflow	Low - 261 CFM | High - 491 CFM
Noise Level	69 d(B)A
Compressor	Rotary
Electrical	110V, 60Hz, 1 Ph | 9.2 Amps (max) | 1,000 Watts
Added Features	Includes a Remote Humidistat Unit Can be Ducted Includes Carrying Handles
Ebac PD-120 Dehumidifier Owner's Manual
Ebac PD-120 Dehumidifier Product Brochure / Spec Sheet
What's in the Box?	Ebac PD120 Dehumidifier 10' PVC tube - 12mm I/D Jubilee clip Humidistat Product Manual
Warranty	One-year unconditional warranty against any manufacturing defects in workmanship or material.
