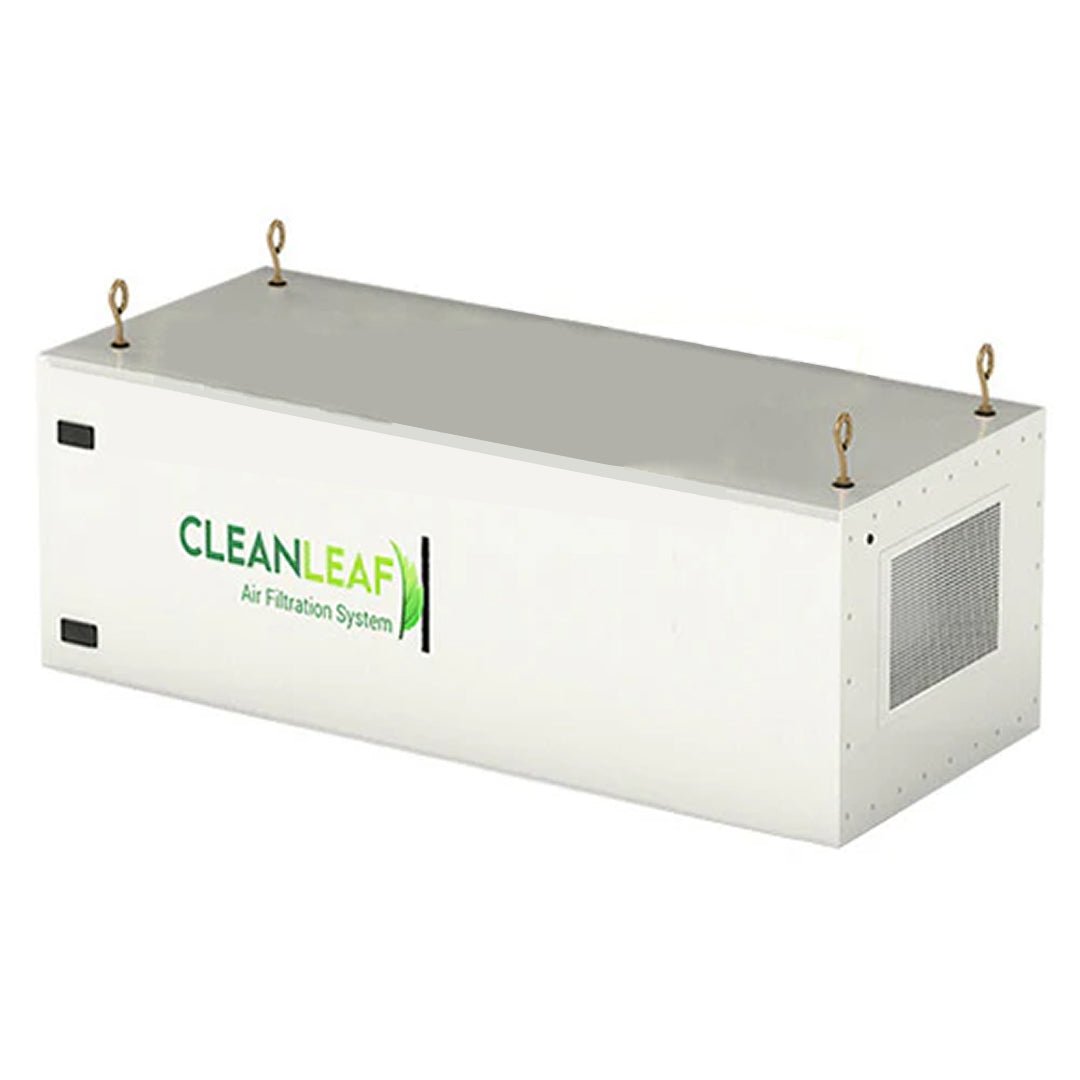

Easily Capture Dangerous Airborne Particles, including Mold, Mildew, Bacteria, Dust and other Microorganisms with the CleanLeaf CL-1100-H True HEPA Air Filtration System
Even the cleanest environments can harbor airborne micro-contaminants. Protect your clients and employees from breathing these harmful pollutants with a CleanLeaf CL-1100-H HEPA air filtration system.
The CleanLeaf CL-1100-H Air Filtration System will capture multiple airborne microorganisms including mold, fungi spores, bacteria, pollen, insect pests, VOC's and more. As the air flows through the pre-filter, (6) pocket bag filter, and 99.97% HEPA filter, you can rest assured that your air will be clear of these unwanted pollutants that can cause damage to your valuable crop.

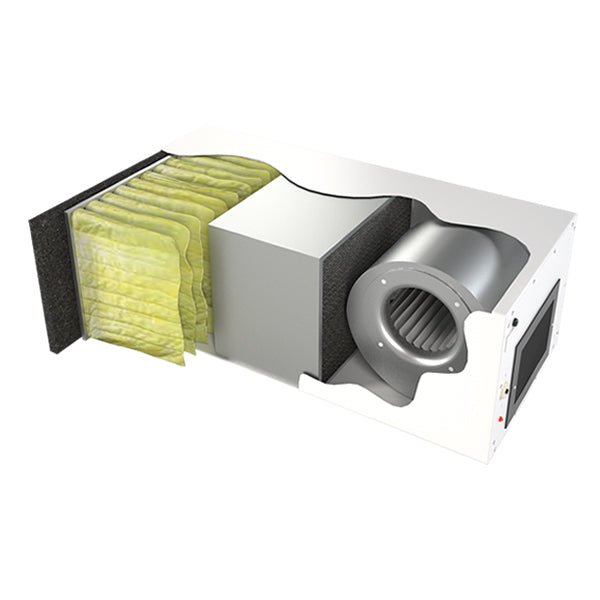

3 Stages of Filtration in the CleanLeaf CL-1100-H Air Filtration System
Each CleanLeaf CL-1100-H Air Filtration System comes fully equipped with (1) Pre-filter, (1) Bag Filter, and (1) 12-inch True HEPA Filter.
Stage 1 - Washable Pre-filter
1-inch 35% efficient, washable foam pre-filter traps dust and larger particles. This filter can be washed several times before replacement is needed.
Each CleanLeaf CL-1100-H is equipped with one washable foam pre-filter. Replace when pre-filter shows signs of wear and tear.
Stage 2 - 6-Pocket Bag Filter
12-inch, 6-pocket bag filter easily achieves 98% arrestance and 95% efficiency. The Bag Filter captures smoke and other sub-micron size particles from the air as it passes through. Its large surface area lasts a long time and captures super-small particles.
Each CleanLeaf CL-1100-H air cleaner is equipped with one 12-inch bag filter. Replace every 6-12 months or as needed.
Stage 3 - 99.97% HEPA After-Filter
12-inch 99.97% HEPA After Filter is used in medical clean rooms. True HEPA filters catch 99.97% of particles as small as 0.3 microns. These filters provide the ultimate in clean air filtration, especially in environments where dust & high particulate is a concern.
Each CleanLeaf CL-1100-H air cleaner is equipped with one 12-inch HEPA filter. Replace every 1-2 years or as needed.
Features of CleanLeaf CL-1100-H Air Filtration System
- Powerful 875 CFM blower for optimum airflow efficiency
- 16 gauge cold-rolled steel cabinet is finished with a light-reflective white polyurethane powder coat for durability.
- Each unit is self-contained to use individually or in groups.
- CleanLeaf systems come with a standard 3-year warranty on all parts excluding filters.
- Optional Silencer with Louver for 6-8 decibel noise reduction
- Optional Magnehelic Pressure Gauge indicates when to change filters
CleanLeaf CL-1100-H Air Filtration System Mounting Options

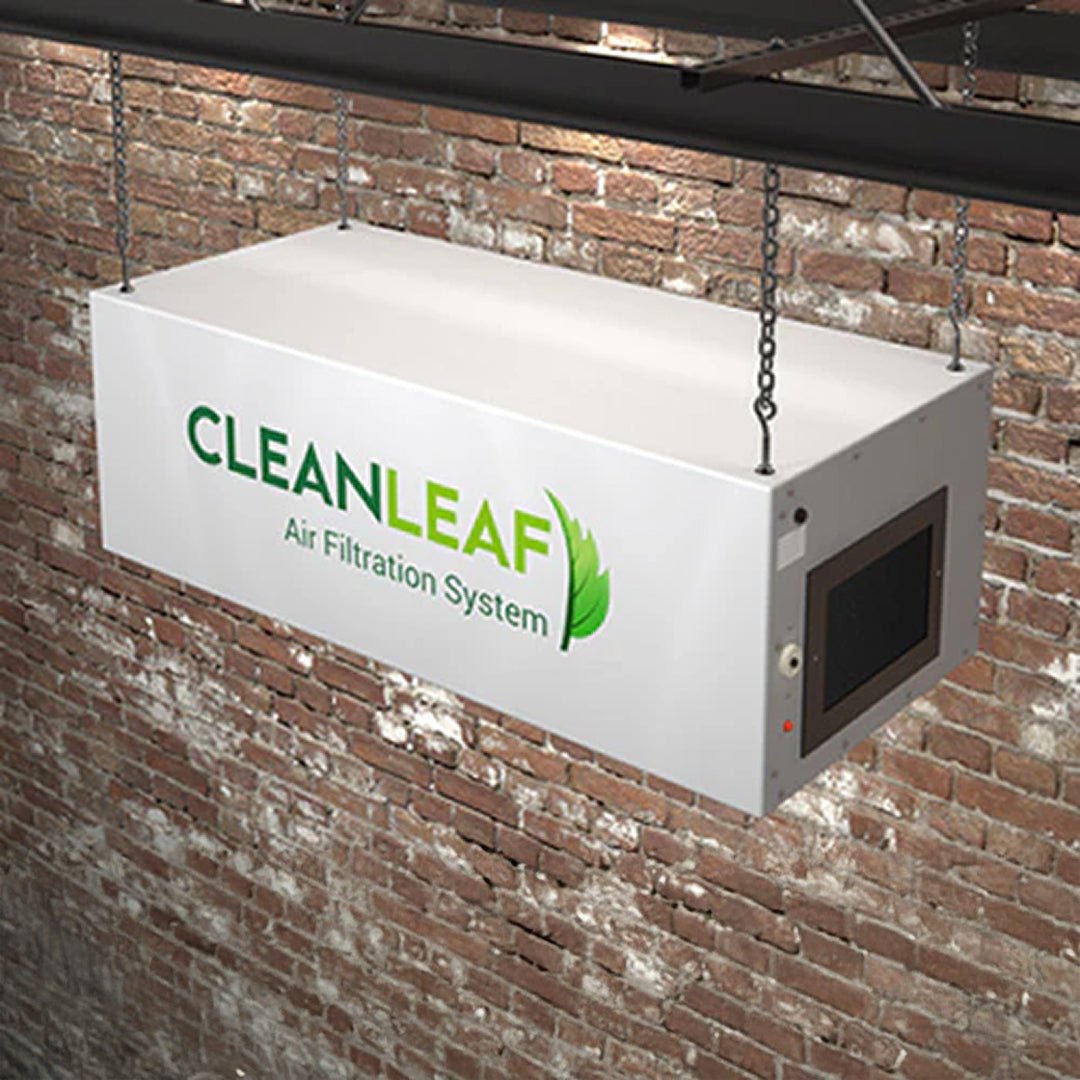

Ceiling Chain Mount
The Chain Mounting Kit option is an excellent choice for hanging your CleanLeaf air cleaner from the ceiling. Chains should be mounted to eyebolts in the ceiling rafters/joists which hook onto the factory-installed eye bolts. For this option, order the optional Mounting Kit which includes (4) 5-foot chains, (4) Q-links, and (4) eyebolts (used to screw into the rafters/joists).
Strut Channel Mount
The Strut Channel mounting option is an excellent choice for heavier single and multi-units. Industrial chain mounts to the rafters and hooks onto the eye bolts installed into an under-mounted channel strut (not included). For this option, order the Optional Mounting Kit separately under Filters and Accessories.

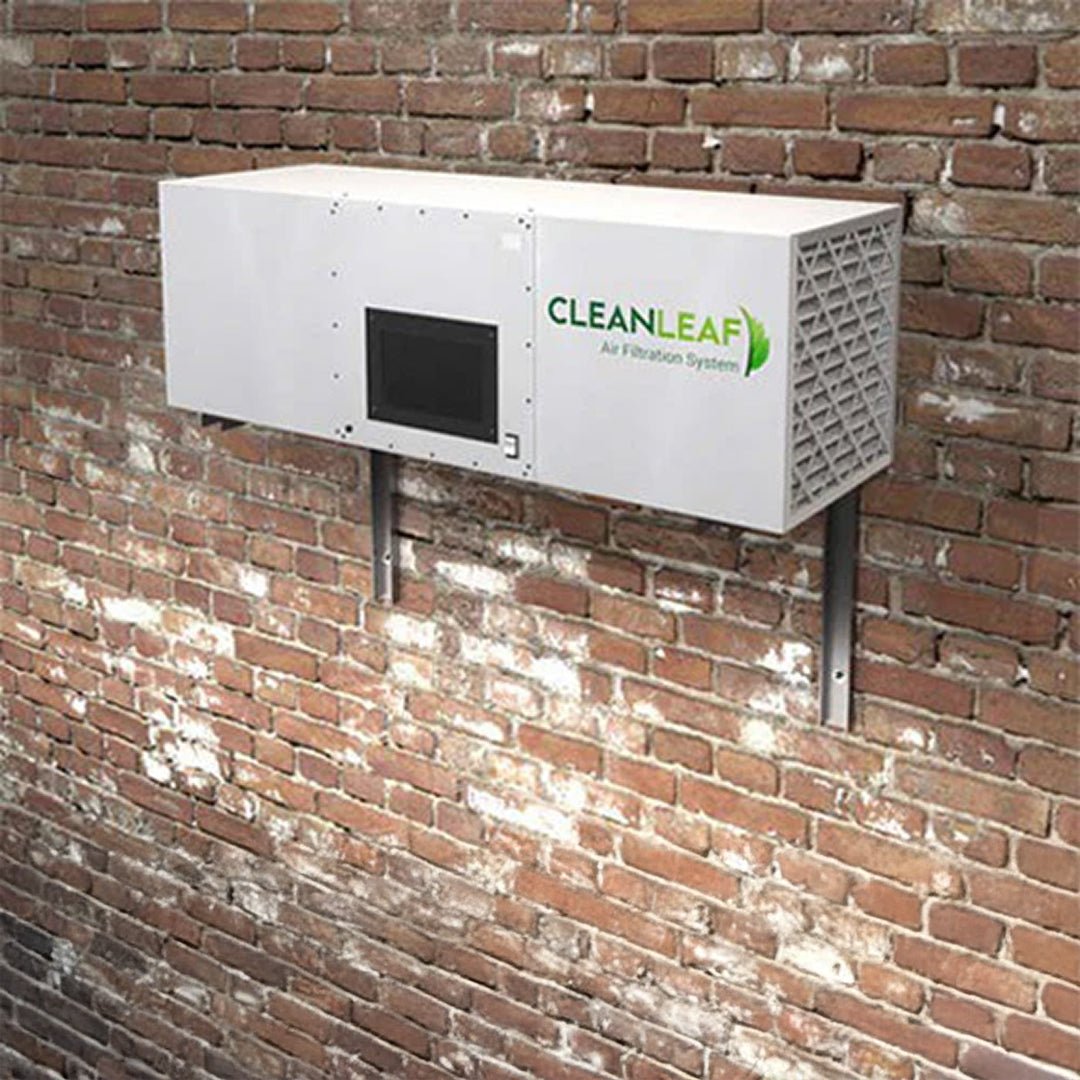

L-Bracket Wall Mount
If you have wall space available, the set of durable L-Brackets is an excellent mounting option for single configuration units. When ordering, choose the Include L-Brackets for Wall Mount installation option. If you decide later on down the road that you want to wall mount your CleanLeaf Air Cleaner, the Optional Wall Mounting Brackets can be ordered separately under Filters and Accessories.
CleanLeaf air filtration systems are designed to improve your indoor environment. The CL-1100-H easily collects dust, smoke, oil mist, oil smoke, and other atmospheric pollutants in industrial plants, shops, schools, and factories with high-efficiency filtration. It is a complete air filter packaged unit that can be installed easily and used as a free-hanging air filter unit to clean the ambient pollutants, smoke, odors, and haze.
