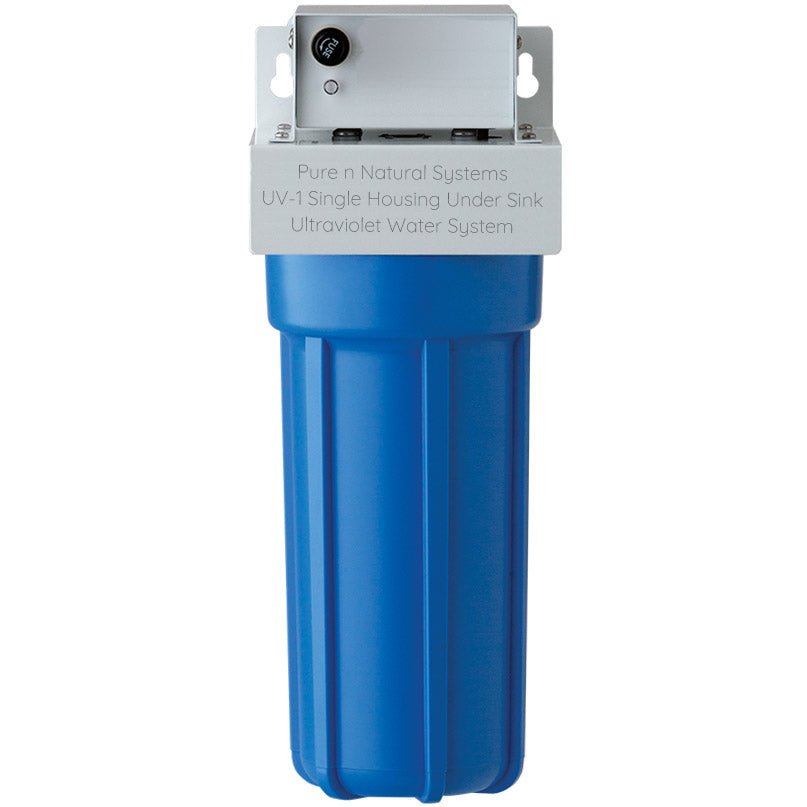

The PURE UV-1 is an Under Counter 2-Stage Ultraviolet Water Purifier that provides Clean, Fresh Drinking Water from your Kitchen Tap.
The PURE UV-1 Two-Stage Water Sterilizer is easy to install and provides clean, disinfected drinking water for any point-of-use application. 2 gallons per minute flow rate purifies your water with carbon and germicidal ultraviolet sterilization.  The Pure UV-1 Drinking Water System features Activated Carbon for removal of chlorine, taste, odors, etc., PLUS Ultraviolet Sterilization (UV) to remove waterborne bacteria, viruses, and other harmful microorganisms. A separate and dedicated faucet can be ordered to provide purified drinking water only when you need it!
Protect your drinking water from E. Coli, Shigella dysenteriae, Salmonella, and other outbreaks that occur from time to time, in both municipal and well water supplies. The space-saving design of The UV-1 under-counter ultraviolet water sterilizer includes two stages of filtration for disinfected, bacteria-free water.
-
Stage 1 - 0.5-micron Carbon Block Filter - As water enters the housing, it flows down through a 0.5-micron carbon block cartridge that removes heavy metals (such as lead, mercury, copper) and cysts (including crypto, giardia cysts) as well as chlorine, taste, odors, and chemical impurities from the water.
Replace the carbon block filter every 8-12 months.
-
Stage 2 - Germicidal Ultraviolet - The water then flows up through the center of the carbon block cartridge where the UV chamber is located. As water enters the stainless steel disinfecting chamber, it's exposed to high levels of ultraviolet light that attack harmful microorganisms, bacteria, viruses and sterilizes them. This process of purification works without chemicals and leaves no residual in the water supply. It is also more cost-effective than traditional methods of water disinfection, including chlorinating, distilling or boiling.
Replace the UV Lamp once per year.
NOTE: Stages 1 & 2 are combined in the same housing.
Ultraviolet disinfection is accepted by both the EPA and the FDA as a safe, effective method of bacteria control.
This compact, all-in-one drinking water system installs with ease and can be used anywhere that clean, clear, good tasting disinfected water is needed. The UV lamp and carbon filters are easily accessible for years of maintenance-easy performance. It's ideal for point-of-use applications including under the kitchen sink, office water coolers, water vending machines, boats, recreational vehicles, etc.
How Effective is UV?
Ultraviolet (UV) light from the sun has long been known for its ability to destroy microorganisms. However, it has only been in recent years that equipment producing UV light has been manufactured for residential use. UV energy is produced by low-pressure mercury vapor enclosed in a tubular lamp. While a UV lamp resembles a standard fluorescent lamp, it is similar in appearance only. The energy produced by the UV lamp has the ability to destroy microorganisms that can live in water. There are five major groups of microorganisms that are altered by a specific spectrum of ultraviolet light: viruses, bacteria, fungi, algae, and protozoa. When these microbes are exposed to the proper amount of UV energy, their DNA structure is scrambled, and they are unable to reproduce. Since the cell is now sterile or dead, it is no longer a threat.
Features and Specifications of the PURE UV-1 Under-Counter UV Water Filter and Sterilizer
Warranty |
1Â Year Warranty on unit and on electrical components |
Dimensions |
5.5" W x 5.5" D x 15" H |
Weight |
10 pounds |
Flow Rate |
2 GPM |
Inlet/Outlet Size |
3/8" NPT |
Faucet |
Optional long-reach chrome faucet available |
Bulb Life |
9,000 hours (approx. 1 year) |
Electronic Lamp Indicator |
LED |
Electric |
115V w/8' power cord |
Power |
14 watts |
CUL Listed |
Conditions For Use |
Feed Water Pressure |
20-75 psig (138 - 517kPa) |
Water pressure must not exceed 75 psig (517 kPa) or a pressure regulator must be installed. |
Feed Water Temperature |
38° - 105°F |
pH Range |
6.5 - 9.5 |
Total Dissolved Solids |
< 1500 mg/L |
Total Suspended Solids |
< 10 mg/L |
Turbidity |
< 5 NTU |
Chemical Parameters |
Max mg/L |
Hardness (CaCO3) |
< 120 (7 GPG) |
Iron (Fe) |
< 0.3 |
Manganese (Mn) |
< 0.05 |
