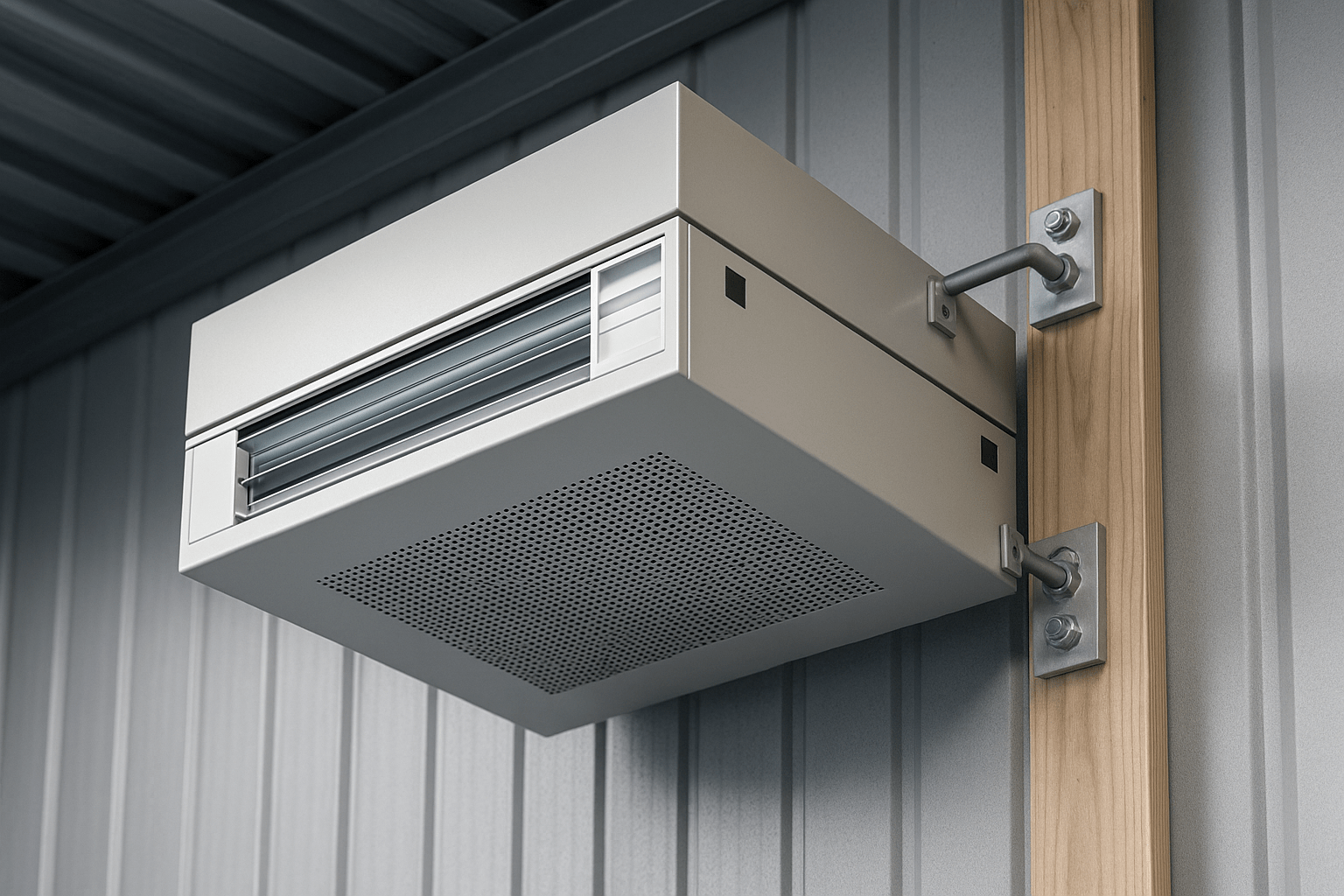

Wall Mounting your Smokemaster C-12 Surface Mount Electronic Air Cleaner for Tobacco Smoke

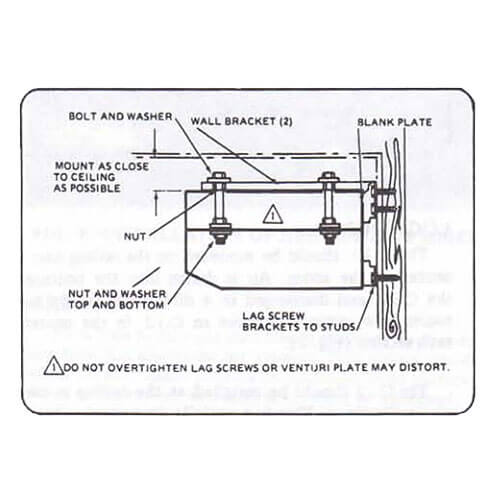

The Wall Mounting Kit includes two (2) wall mounting brackets, two (2) screws with nuts, and one (1) blank plate. Both brackets are used to support the C-12. The brackets must be mounted on the wall 16" between centers so that the long bolts will line up with the air cleaner mounting holes. The brackets should be securely fastened to the wall studs with lag screws. On masonry walls, use appropriate screw anchors. Use the blank metal plate to block off the louvered outlet on the side of the air cleaner that will face the wall. Use the 2 screws with nuts and washers to fasten this plate to the louvers.
For the following Smoke Eater models;
