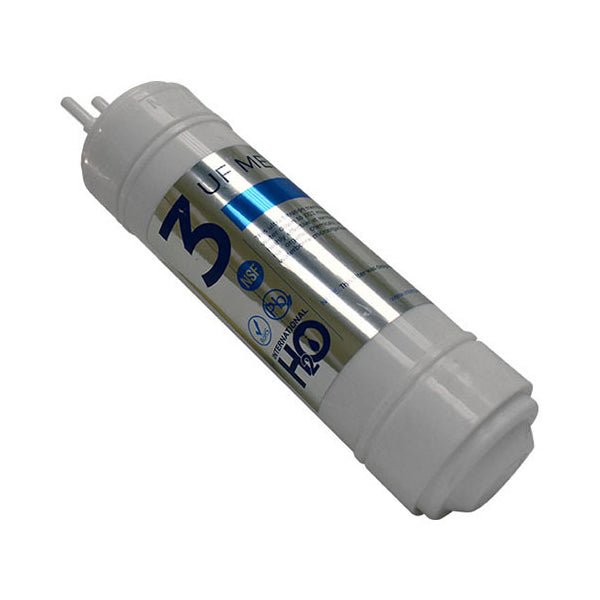

H2O Replacement UF Membrane

Name: H2O Replacement UF Membrane
Brand: International H2O
SKU: H2O-UF-U10
Price: 90.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

12-inch Quick-Connect U-Type

SKU: H2O-UF-U10

$90.00

Usually ships in 5 days; up to 10 for some models

Free Shipping

Bulk order? Request a quote

About this product

If you're looking for the purest drinking water without the hassle of RO, Ultra-filtration is the answer.

Unlike typical RO systems, Ultra-filtration (UF) does not require the need for a drain. Our Ultra Filtration membrane is super effective at filtering out waterborne micro-organisms and harmful organic chemicals, etc.

Maximum Flow - 1 GPM
Maximum Pressure - 70 PSI
Maximum Temperature - 113°F
Burst Pressure - 500 PSI
Service Life - 12 months (500 gallons)

The UF membrane will provide absolute filtration - it even eliminates bacteria and viruses. Ultra-filtration is the best choice for people who would like to remove heavy metals, and toxic constituents, while leaving healthy minerals such as salt, calcium, and magnesium behind.

> > Click here for a diagram on the difference between Inline and U-type filter connections.< <

Replace the 12" Ultra-filtration Membrane once per year.

Used in the following International H2O Bottleless Water Dispensers:

H2O-2200 3-Temperature Bottleless Water Dispenser
H2O-2500 High Capacity Hot & Cold Filtered Water Cooler Dispenser
H2O-2500P High-Performance Hot & Cold Bottleless Filtered Water Dispenser
H2O-500 Hot & Cold Point of Use Filtered Drinking Water Dispenser
H2O-400 Hot & Cold Bottle Free Office Drinking Water Dispenser (Discontinued)

Unused water filters do not expire. As long as they're not exposed to any moisture, there is no set shelf life for water filters.

Best for

Long-term water purification in International H2O bottleless dispensers
Offices, break rooms, clinics, and commercial hydration stations
Users wanting advanced ultrafiltration for cleaner, clearer water
Facilities that require removal of particulates and microorganisms from drinking water
Spaces where high-quality water improves taste and safety

Specifications

What's in the box

(1) Replacement U-Type UF (Ultra-filtration) membrane designed for International H2O systems

Installation tips

Turn Off Water Supply: Before servicing the unit, shut off the incoming water line.
Relieve System Pressure: Open a tap or drain pressure to avoid spills when accessing the filter area.
Access the UF Module Housing: Follow your system’s manual to open the ultrafiltration membrane chamber.
Remove Old Membrane: Take out the existing UF membrane carefully; avoid bending or damaging the housing.
Insert New U-Type UF Membrane: Slide or seat the new membrane exactly as instructed, ensuring proper orientation.
Secure Housing: Close and secure all housings and fittings according to the manufacturer’s guidelines.
Flush Before Use: After reinstalling, run water through the system for several minutes to remove air and any loose filter fines.
Record Replacement Date: Keep track of replacement dates to maintain optimal performance on schedule.

Frequently asked questions

What is the U-Type UF Ultra-filtration Membrane used for?
It is a replacement ultra-filtration membrane designed to remove very fine particulates, microbes, and contaminants from drinking water in International H2O filtration systems.

How often should the UF membrane be replaced?
Replacement frequency depends on water quality and usage, but most UF membranes last 1–2 years under normal residential or commercial use.

Can I install this membrane myself?
Yes. With basic tools and the system’s instructions, most users can replace the UF membrane on their own.

Will this improve water taste and clarity?
Yes. Ultrafiltration enhances water clarity and can improve taste by reducing microscopic contaminants and particulates.

What should I do after installing the new membrane?
After installation, flush the system with water for a few minutes to clear air and any residual media before regular use.
