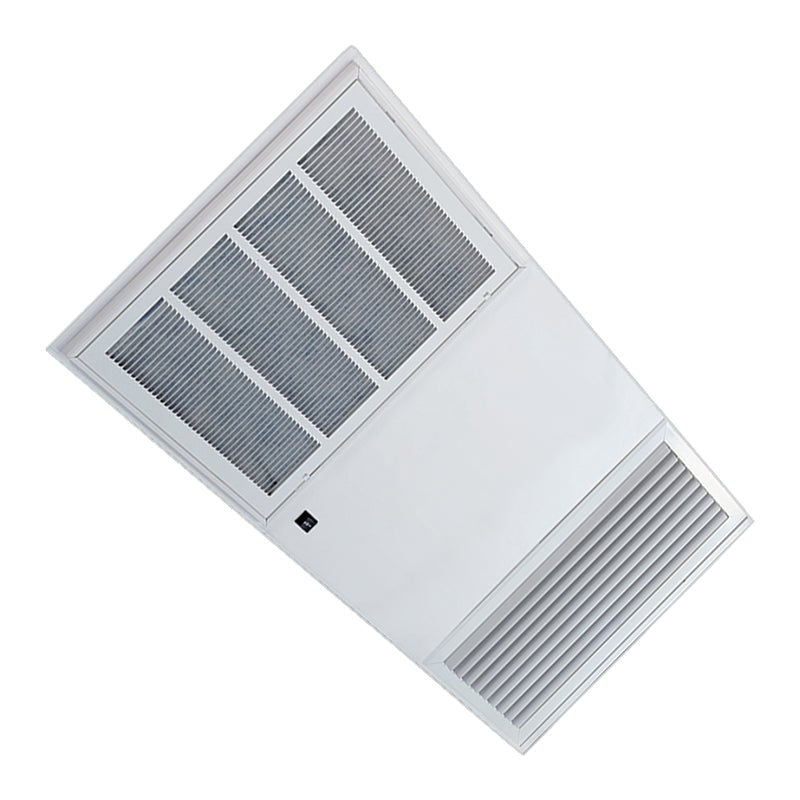

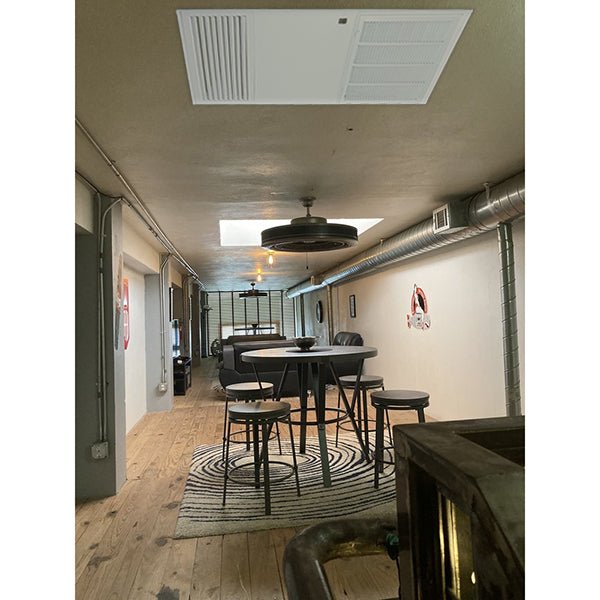

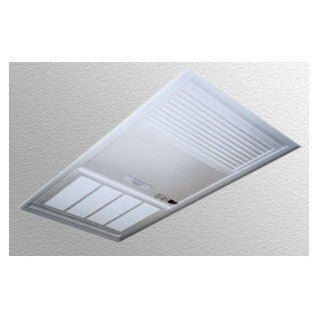

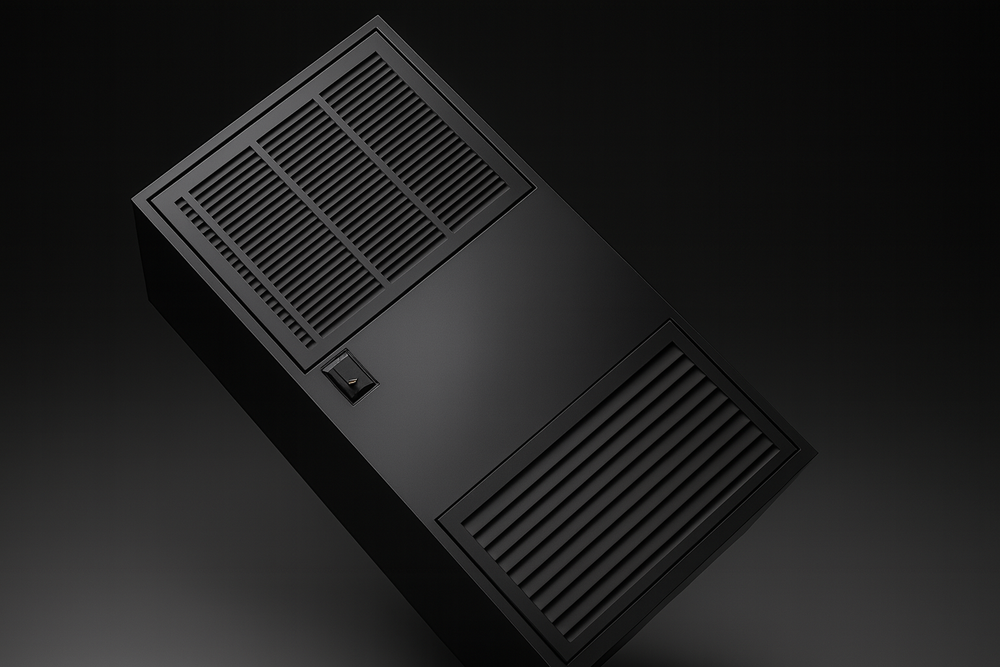

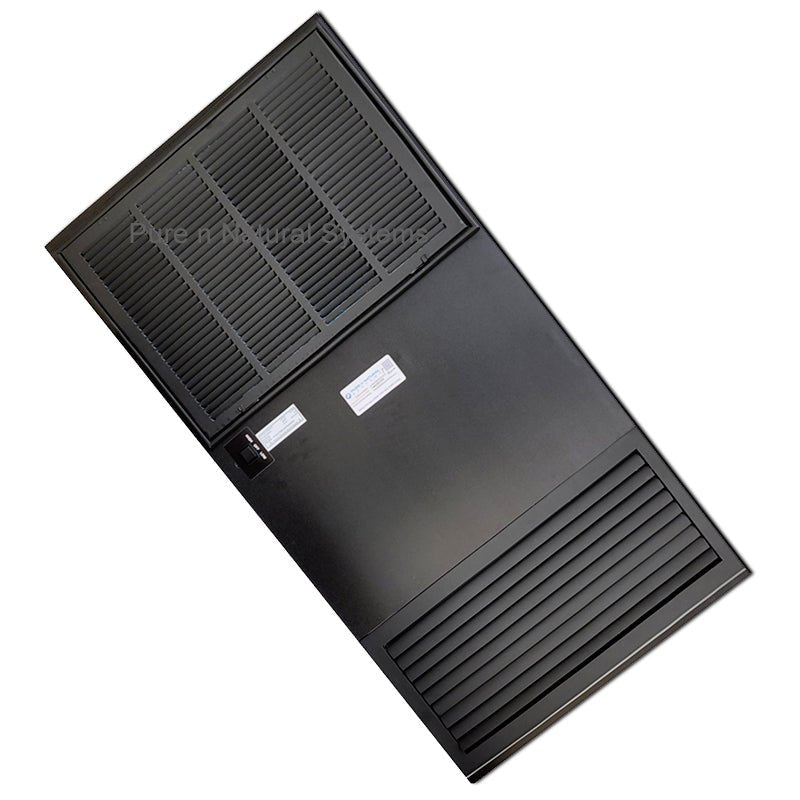

The powerful FM-22 Solid Ceiling Flush Mount Smoke Eater is Perfect for Your Entertainment Room, Game Room, Private Club or Bar
600 - 1200 CFM - The FM-22 Solid Ceiling Flush Mount Smoke Eater covers approximately 6,000 cubic feet. It includes installation hardware PLUS all filters needed for the first year!
The FM-22 solid ceiling flush mount smoke eater is perfect if you have a solid ceiling and you don't want a surface mounted air cleaner to hang down. The FM-22 air cleaner is designed for a dry-wall ceiling, flush-mount installation, with 24" on center joists. In order for the FM-22 to fit properly, a depth clearance of 13" is required above the solid ceiling. It is recommended that the FM-22 air cleaner be installed in areas with a ceiling height of 10 ft. or less. After the FM-22 smoke eater is installed, a finished molding is recommended for appearance. All filters in the FM22 smoke eater are easily accessible from the louvered doors on the front of the unit. 1 - FM-22 smoke eater covers approximately 6,000 cubic feet.
3-Filter System in the FM-22 Provides Excellent Clean Air Results
The FM-22 solid ceiling flush HEPA air cleaner uses a powerful blower to draw the air from smoke-filled areas. As the air is drawn through the filter media, 95% of the tobacco smoke particles are removed on each pass. The clean air that is constantly discharged into the area is refreshing and remarkably free of tobacco smoke and other contaminants. Clean air is beneficial in lounges and restaurants because it reduces the need for segregated smoking areas. Practically all of the dust, dirt, pollen, and other contaminant particles are removed from the air as they pass through the air cleaner, including microscopic airborne particles.
Stage 1 - Pre-Filter
The pre-filter is important because not only does it remove the larger particles, it also helps prolong the life of the HEPA filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system; therefore promoting better indoor air quality.
(12) Polyester pre-filters are included with each system. Pre-filters cannot be washed and must be changed on average once per month.
Stage 2 - Activated Carbon Filter
Activated Carbon removes odors by absorbing odors, gases & VOC's into the filter. Think of carbon as an "odor sponge". It can hold many times its weight in odor molecules. However, once carbon becomes "saturated" it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
(6) Activated Carbon filter pads are included with each unit. Carbon Filters cannot be washed and should be changed on average every 2 months.
Stage 3 - HEPA Filter
The HEPA filter removes the very small particles, such as smoke (tobacco, burning wood, oil, rosin), dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses just to name a few. The HEPA filter is extremely important for superior air filtration and when used and maintained properly it will dramatically improve your indoor air quality. We cannot stress enough the importance of the HEPA filter to our system and the fact the HEPA filter must be maintained in order to achieve the maximum results.
(1) 12-inch HEPA Filter is included with each unit. The HEPA filter cannot be washed and should be changed on average once per year.
OPTIONAL - Ultraviolet Germicidal Lamps
Why Optional Ultraviolet Germicidal Lamps in Commercial Air Cleaners?
It's well known that ultraviolet germicidal lamps can destroy any microorganism because of its powerful UV-C rays. As a microbe passes through UV-C, the light penetrates directly into the organism's nucleus which disrupts the molecular bonds of it's "DNA". This breakage renders the microbe unable to reproduce and shortly thereafter the organism dies. This method is recommended by the Centers for Disease Control for its germicidal effects. The use of UV-C along with a highly efficient filter media provides a truly clean, virus & bacteria-free environment.

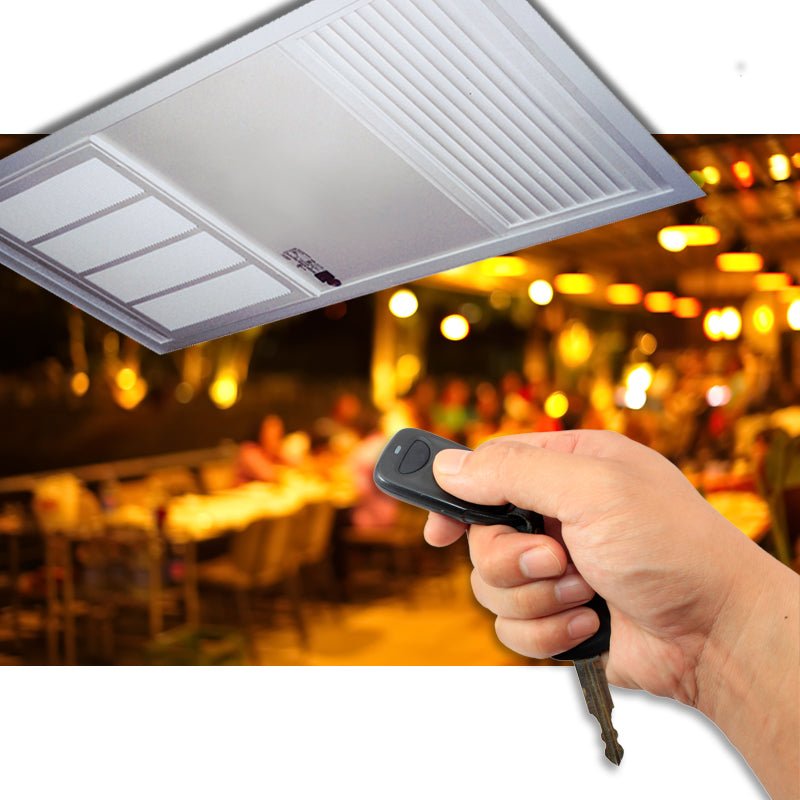

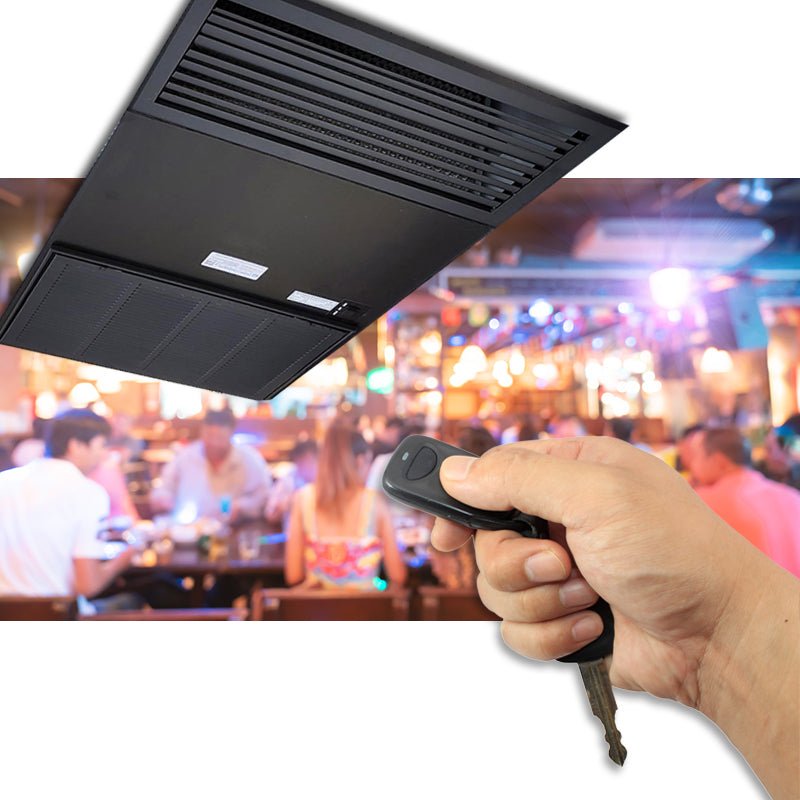

OPTIONAL - Remote Control
Easily control the settings on your FM-22 Smoke Eater with a handy Remote Control Key Fob. If your Smoke Eater is installed in an awkward area or is too high to reach, the remote control is an excellent choice. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) Receiver / Transmitter range is approximately 100 feet under normal operating conditions.
FM-22 Flush Mount Commercial Air Cleaner Specifications
|Capacity||Up to 1,200 Sq. Ft.|
|2-Speed||High - 1,200 CFM | Low - 600 CFM|
|Sound Level @ 5'||High - 67 dB | Low - 65 dB|
|Installation Options||Solid Ceiling Flush Mount - 24" on Center Joists|
|Dimensions||46-1/2" (L) x 22" (W) x 12" (H)
NOTE: 13" clearance above ceiling is required.
|Cabinet Construction||Aluminum - Available in Black or White|
|Shipping Weight||85 lbs|
|Electrical||4.2 amps | 120V|
|Power Cord||6' long, 3-prong grounded plug - Plug in or Hardwire|
|Three Filter System||Each unit includes the following filters;
(1) 12-inch HEPA Filter
(6) 1/2-inch Activated Carbon Filters
(12) 1/2-inch Pre-Filters
|Warranty||All Systems carry a lifetime Blower/Motor Warranty*|
|Certifications||Fan motor and all electrical components are UL Listed and CSA Certified|
|FM-22 Owner's Manual|
|FM-22 Brochure / Cut Sheet|
|*Lifetime Blower/Motor warranty applies if filters are changed as required and are purchased from Pure n Natural Systems, Inc.|
|This item ships by LTL freight. Please refer to our shipping policy by clicking here.|
|This unit is NOT a stock item. It's built to order up and can take up to several weeks to ship. Please consider this when scheduling your project.|
