481170-0480 Quick-Connect Nozzle Flange Kit

Name: 481170-0480 Quick-Connect Nozzle Flange Kit
Brand: Spot Coolers
SKU: 481170-0480
Price: 199.95 USD
Availability: InStock

for MovinCool Office Pro Series

$199.95

Usually ships in 5 days; up to 10 for some models

Free Shipping

Bulk order? Request a quote

About this product

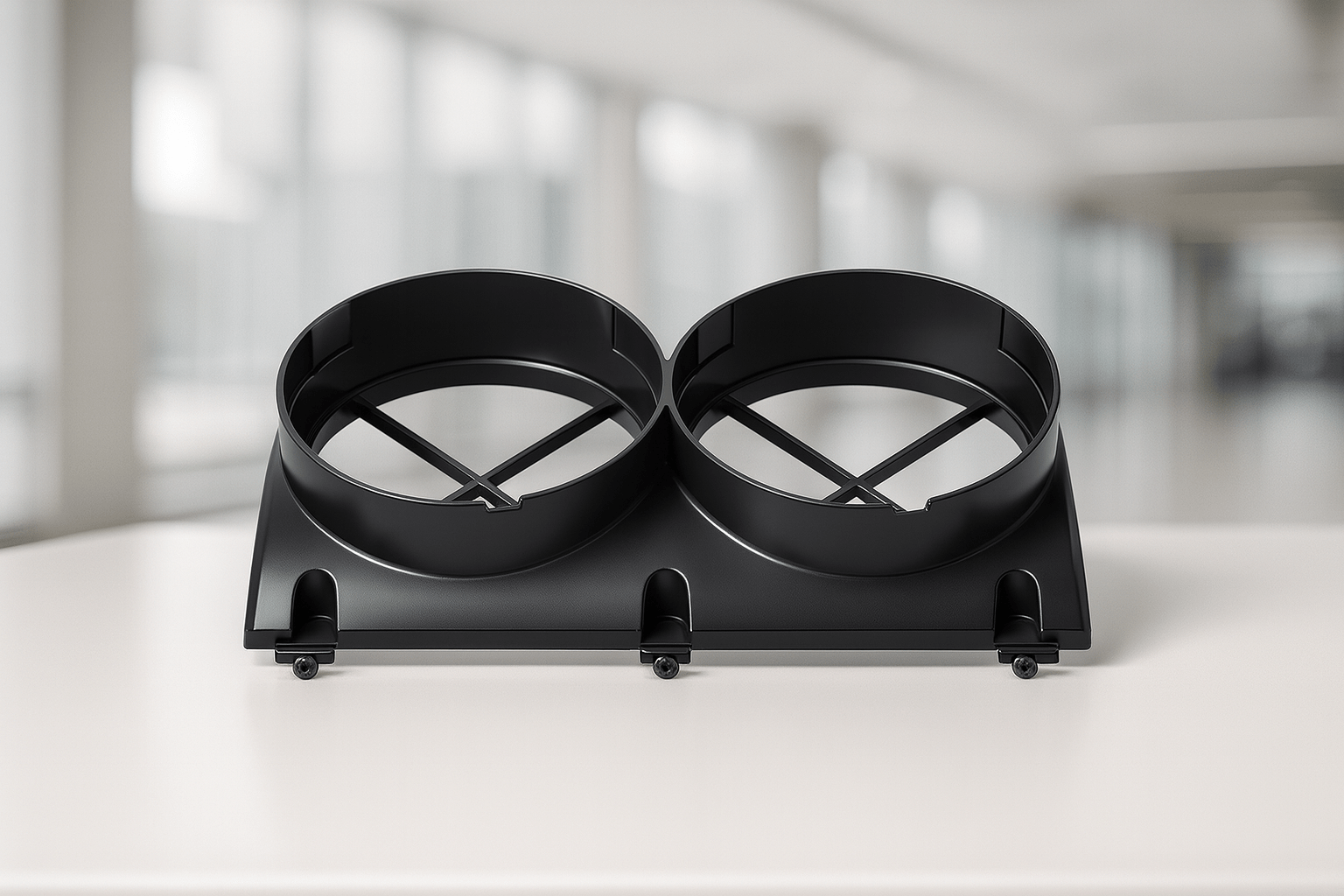

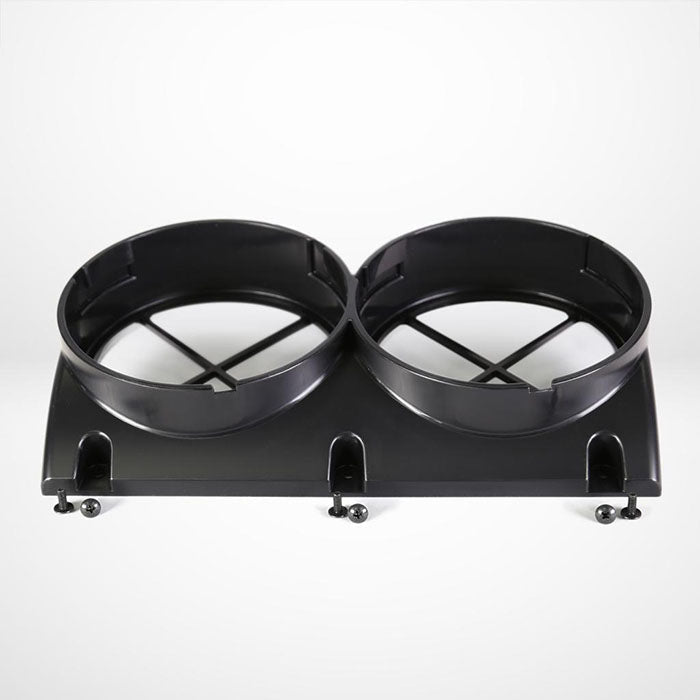

Designed for the MovinCool Office Pro / Climate Pro series, this quick-connect flange kit lets you attach circular 5″ diameter nozzles or flexible ducting directly to your unit’s supply-air opening. The kit includes two 5-inch round molded flanges, twist-lock tabs for fast attachment/removal and the mounting hardware (wire clamp + screws).

Quickly retrofit your spot-cooler or portable A/C to deliver targeted supply-air – ideal when you want to direct air exactly where it’s needed.

For use in the following MovinCool Portable Spot Coolers;

Best for

Facility managers who need to redirect cooled air from a MovinCool portable unit into remote or congested areas (telecom closets, server niches, high-bay mezzanines).
HVAC professionals installing or upgrading the MovinCool Climate Pro or Office Pro series and needing an easy connect/disconnect ducting solution.
Cigar lounges, schools, manufacturing spaces or any commercial environment where you already have a MovinCool unit and want to add flexible duct/nozzle capability easily.

Specifications

Model / Part Number	481170-0480
Compatibility	MovinCool Climate Pro K12, K18, K24, D12, D18; also listed for Office Pro series.
Diameter	Two (2) 5″ diameter round flanges
Connection Type	Quick-Connect (twist-lock tabs) for nozzle or duct attachment
Weight (approx)	~1.75 lbs
Warranty	1-Year Guarantee

Certifications

This is an accessory for a certified HVAC equipment product line; however, this accessory itself does not carry a separate UL listing or certification number in published data.
Compatible with the MovinCool Climate Pro / Office Pro line which meets applicable commercial portable A/C standards - Base unit certified under UL 60335 / UL 60335-2-40.

What's in the box

(2) Round quick-connect flanges (5″ diameter)
(1) Wire clamp
Mounting screws (quantity sufficient for installation)

Installation tips

Always disconnect power to the MovinCool unit before installing accessories.
Remove the existing louvers or standard supply-air frame on the unit’s front panel as directed in the MovinCool accessory manual.
Align each 5″ flange into the supply-air opening(s) and secure using the provided screws. Ensure flanges seat properly with no gap around edges.
Use the quick-connect twist-lock tabs to attach the nozzles or flexible ducts (e.g., part 484209-0480) into the flanges.
Verify airflow direction, ensure the ducts or nozzles aren’t restricted and maintain clear path for discharge.
After installation, test the unit at full speed and observe that the new supply path is secure and flush with no leakage.
Document the upgrade in your service records (including part number, date installed, installer name).

Frequently asked questions

Is this flange kit compatible with flexible ducting?
Yes, the kit includes 5″ round flanges designed for quick-connect nozzles or flexible duct-fit. Use with the MovinCool 484209-0480 Quick-Connect Nozzle Kit, or suitable 5″ diameter duct.

Does this work with my MovinCool Office Pro 24 unit?
Yes, the product page lists compatibility with the Office Pro / Climate Pro K12/K18/K24/D12/D18 series. If you have a later “Office Pro 24,” please confirm the supply-air opening is 5″ and matching hardware.

How many units come in the kit?
The kit contains two (2) 5″ diameter flanges plus clamps and screws — one kit supports two supply-air outlets.

How long does installation take?
Typical field installation can be completed in under 15 minutes per unit if power is shut off and the supply-air opening is clear.

Will this void my unit warranty?
This is a genuine MovinCool accessory designed for the series. If installed properly, it should not void the unit’s existing warranty. Always record the accessory installation per your service agreement.

Do I need the nozzle kit as well?
Yes, the flange kit allows attachment of nozzles or ducts. For proper directed airflow, pairing with the Quick-Connect Nozzle Kit (part 484209-0480) is recommended.
