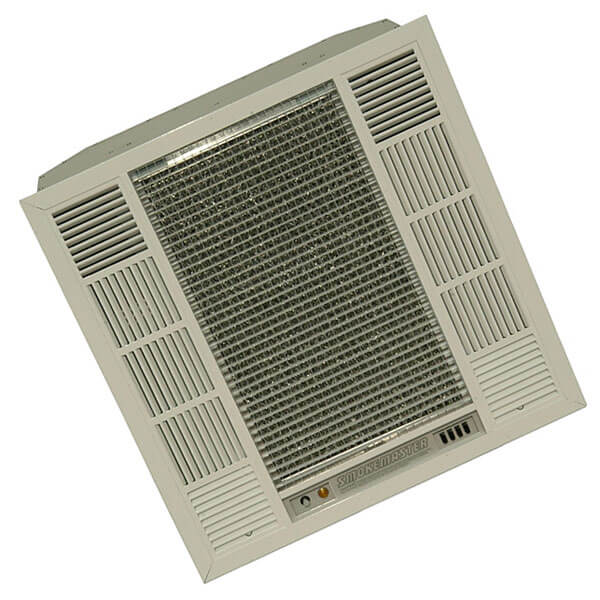

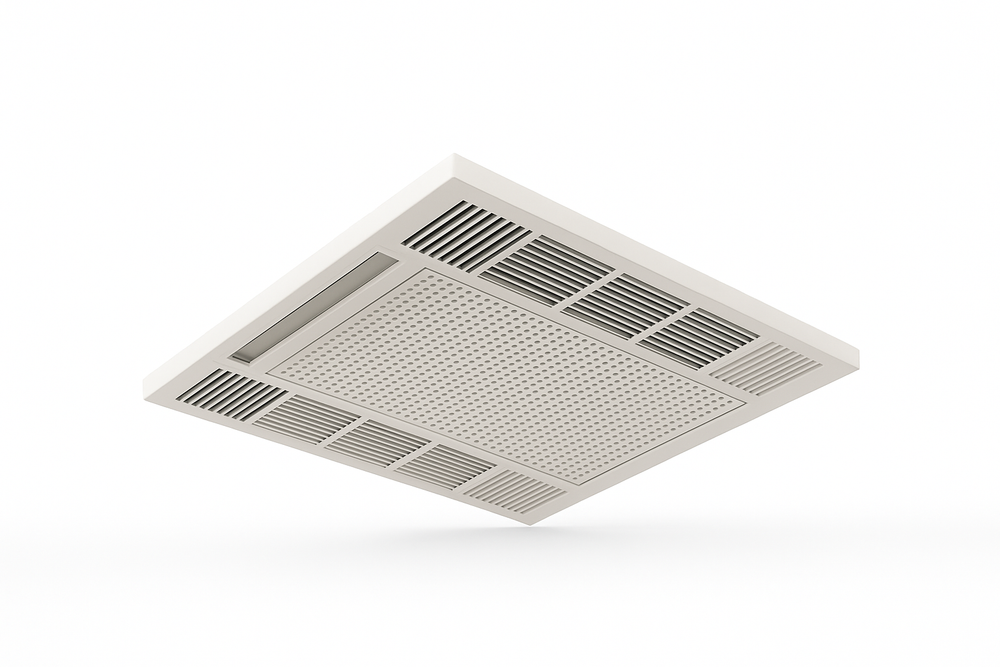

The Smokemaster X-400 Electronic Air Cleaner fits flush mounted into any 2' x 2' drop ceiling tile. Ideal for office or residential smoking areas up to 400 square feet.
175-400 CFM | Electronic Flush Mount Smoke Eater - The Smokemaster X-400 quietly captures both airborne particles and gaseous odors and contaminants. It's ideal for cigarette smoke removal in homes, offices, meeting rooms, employee lounges or beauty salons.

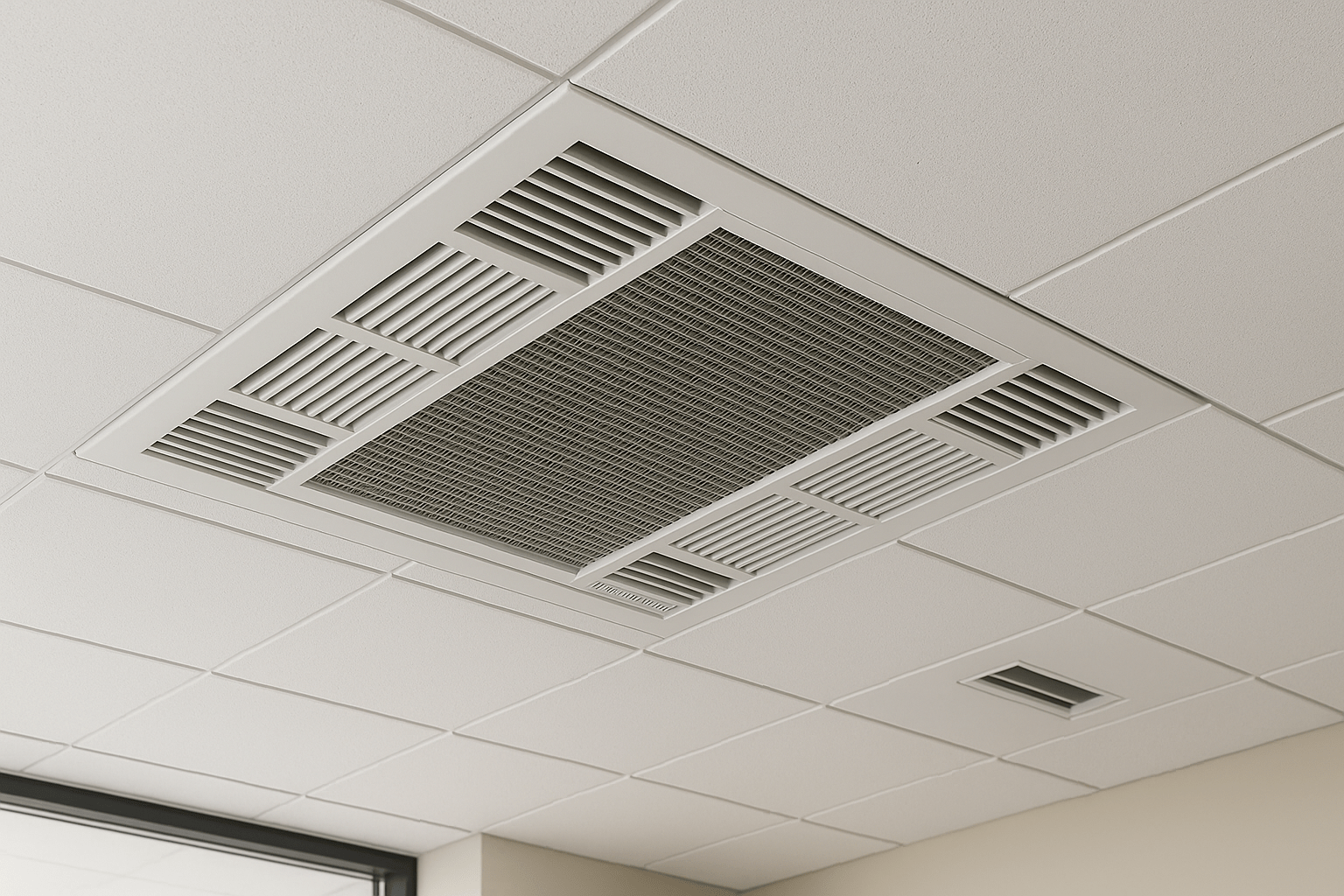

The X-400 air cleaner features a high efficiency electrostatic cell designed to capture both particulate and gaseous contaminants. The attractive grille fits flush with the ceiling and is completely inconspicuous. The cabinet is hidden in the space above a single 2' x 2' drop ceiling tile.
How does the Smokemaster X-400 Electronic Air Cleaner work?...
Stage 1 - Metal Mesh Pre-Filter - The X400 prefilter captures large particles such as hair, lint & pollen before they can enter the electronic cell.
The pre-filter is washable, but should be replaced after repeated use.
Stage 2 - Electronic Cells - A process called “Electrostatic Precipitation” traps over 97% of airborne contaminants on each pass through the X400. The ionizing section of the electronic cell electrically charges individual pollution particles. The electrostatic charge forces them to adhere to the oppositely charged collector plates.
The electronic cells must be washed periodically to maintain efficient performance.
Stage 3 - Carbon Post Filters - Carbon enhances odor removal and helps to remove odors, VOCs and gases providing a cleaner, odor-free air discharge. The X-400 includes 2 carbon filters.
Carbon cannot be washed - filters should be replaced every 4-6 months.
Airflow is important for Air Cleaning Success!
The X-400 success is due to the "Coanda Aerodynamic Principle". Effective 360° airflow gently and evenly distributes clean air and returns dirty air to the unit. The unique 4-way method of air re-circulation gets the maximum amount of contaminated air to the machine most efficiently. More air reaches the Smokemaster while eliminating annoying drafts. This eliminates "stuffy" air pockets and creates people comfort as well as much better air cleaning results!
Ideal applications include - Lobby/Reception areas, Sales Offices, Conference Rooms, Computer Rooms, Executive Offices, Clerical Areas, Cafeterias, Phone or Reservation Areas, Employee Lounges, Showrooms, Lounges, Salons, and more!
How does the Smokemaster X400 Electronic Air Cleaner work?
Features & Benefits of the Smokemaster X-400 Electronic Air Cleaner
- High Efficiency - Removes dust, smoke, pollen and other particles using high efficiency electronic collector cells.
- Quiet - Three-speed controller is standard and allows for quiet operation without sacrificing effectiveness. It's ideal for private offices, conference rooms or other areas where noise may be a concern.
- Easy Installation - Special mounting brackets simplify the installation and do not require any additional space above the cabinet height of 13-5/8".
- Economical - Permanent electronic collector cells assure low operating cost by eliminating costly filter replacements. Moreover, because collector cells offer no airflow restriction, only limited horsepower is necessary, thus reducing noise and electrical draw.
- Comprehensive - Includes 2 Carbon Post Filters for odor control.
Smokemaster X-400 Smoke Eater Specifications
PLEASE NOTE: The X-400 has not been tested for compliance to California Air Resource Board requirements and may not be shipped to California.
(This item cannot be shipped to CA, CT, MA, ME, NH or RI.)
|Capacity||Up to 400 Sq. Ft.|
|3 Speed||High - 400 CFM | Medium - 275 CFM | Low - 175 CFM|
|Installation Options||Flushmount - Fits into 1 - 2' x 2' ceiling tile|
|Dimensions||24" x 24" x 13-5/8"|
|Cabinet||Sturdy, corrosion resistant steel - Off-White|
|Weight||Shipping - 54 lbs. | Unit - 44 lbs.|
|Electrical||120V, 60 Hz|
|Current & Power Consumption||High - 80W, .8 Amps | Medium - 65W, .6 Amps | Low - 50W, .4 Amps|
|Sound Level dB(A)||High - 56.5 | Medium - 50.5 | Low - 45|
|Electronic Cell Collection Area||52.9 square feet|
|Efficiency||Up to 97% per ASHRAE|
|Warranty||1 year limited warranty|
|Certifications||UL & CSA Listed|
|NOTE: 14" clearance above drop ceiling required. Install by removing ceiling tile and dropping unit in. Plug in or hard wire.|
|Installation hardware included - 2 - support bars, 6 - #8 self-tapping sheet metal screws, 2 - flat washers, 2 - wire connectors|
