Smokemaster Replacement Electronic Collector Cell

Name: Smokemaster Replacement Electronic Collector Cell
Brand: Air Quality Engineering
SKU: 07316
Price: 640.0 USD
Availability: InStock

Smokemaster Models: C-12, X11Q, X-400

SKU: 07316

$640.00

Usually ships in 5 days; up to 10 for some models

Free Shipping

Bulk order? Request a quote

About this product

Restore capture performance in minutes

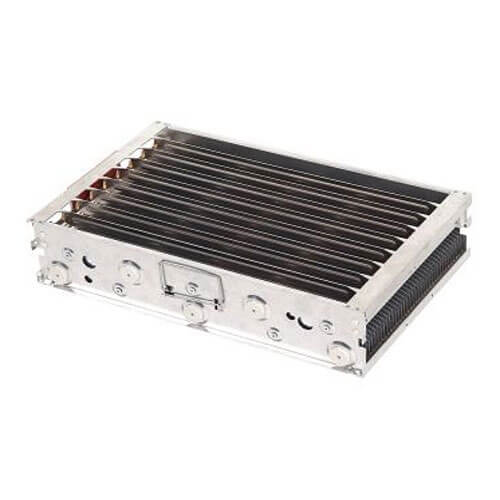

Heavy-duty electronic cell manufactured with ceramic insulators, heavy-duty collector plates, and sturdy fin supports providing an "industrial-grade" cell design for commercial applications. The compact electronic cell measures 20" x 4-1/2" x 12-1/2" and removes easily with sturdy grip handles.

Care & Maintenance

Wash regularly to maintain performance (the manual specifies cells must be washed periodically). Use dedicated cell detergents and, optionally, a wash container.
Consider cell coat after cleaning to help future cleanings go faster.

For the following Electronic Smoke Eaters:

Smokemaster C-12 Surface Mount Electronic Air Cleaner for Tobacco Smoke
(2 cells are required for each C-12 unit)
Smokemaster X11Q Flush Mount Commercial Electronic Smoke Eater
(2 cells are required for each X11Q unit)
Smokemaster X-400 Flush Mount Electronic Office Air Cleaner
(1 cell is required for each X400 unit)

Best for

Owners of SmokeMaster X-Series or CM-Series electronic air cleaners needing a full replacement collector cell
Cigar lounges, vape shops, and smoking rooms maintaining strong smoke-removal performance
Restaurants, bars, and hospitality spaces relying on electrostatic filtration for airborne particles and tobacco smoke
Commercial settings where the existing collector cell is damaged, worn out, or no longer holding a charge
Facilities wanting to restore like-new efficiency without replacing the entire SmokeMaster unit

Specifications

What's in the box

Electronic collector cell (factory-assembled replacement)
Protective packaging for safe transport
Basic handling and maintenance instructions

Installation tips

Install (summary): Power OFF → open grille/panel → remove old cell using handles → insert new cell with arrow UP and ensure the contact board seats properly → reinstall prefilter/carbon (if used) → power ON → press test button (listen for “snap”).

Confirm that no wires or connectors obstruct the cell’s position before closing the panel.
After installation, run the unit briefly to ensure proper airflow, no vibration and verify all 3 fan speeds.
Clean the pre-filter and surrounding components during installation for best performance.

Frequently asked questions

Is 07316 the same as 38001?
Yes. 07316 is the current SKU for the electronic cell and replaces legacy 38001.

Do I have to replace or can I clean?
Cells are designed to be cleaned. If plates are bent, insulators cracked, or the unit won’t pass the test‑button “snap” after cleaning and wire checks, replacement is recommended.

How do I know when my collector cell needs replacement?
If the cell no longer holds a charge, produces weak collection efficiency, has broken fins, or causes recurring arcing even after thorough cleaning, it is time for a full replacement.

Do I need any tools to replace the collector cell?
No. The cell is designed to slide in and out of the SmokeMaster housing without tools. Just unplug the unit and remove the access panel.

Will this fit all SmokeMaster models?
This replacement cell is designed for specific SmokeMaster X-Series and CM-Series models. Check your model number before ordering.
