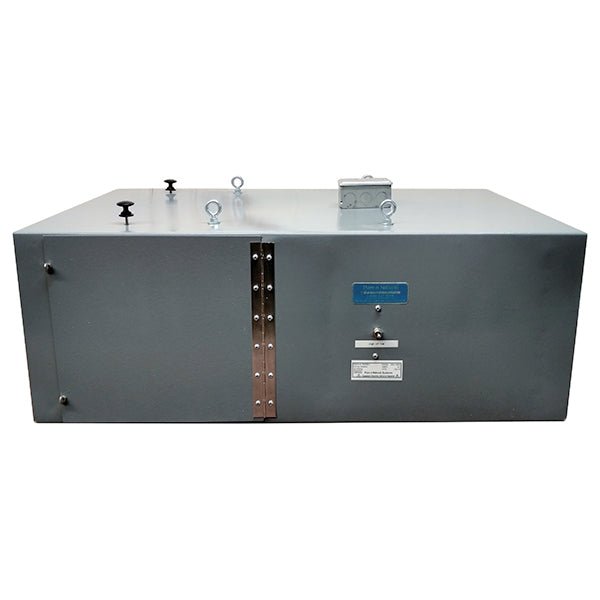

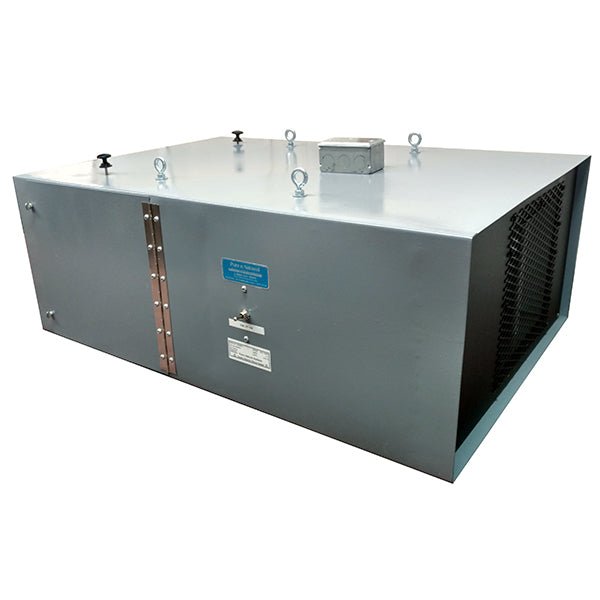

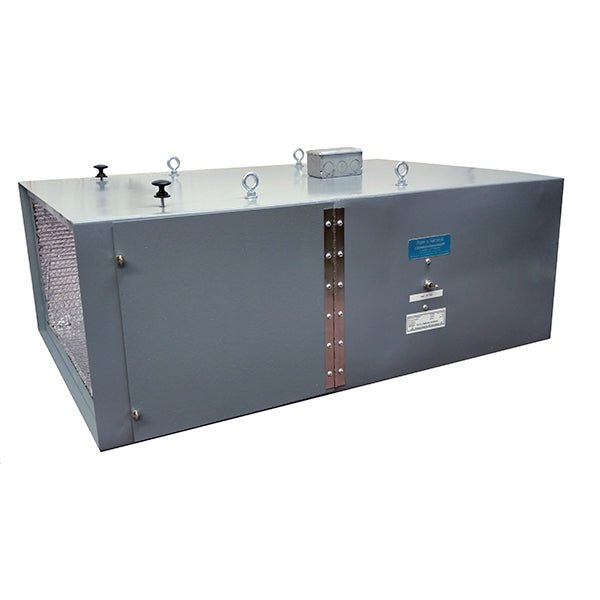

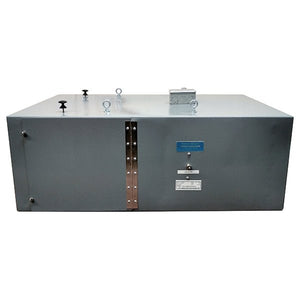

The SED-1000 Whole House Air Cleaner is designed to work independently from your HVAC system.
650 - 850 CFM (2-speed) for areas up to 1,000 sq. ft.
HEPA filter plus carbon easily captures airborne particles and reduces odors.
Includes installation hardware PLUS all filters needed for the first year!
Designed for unobtrusive, ducted installation, the SED series serves an entire home or office’s air filtration requirements with a single unit. The SED Air Cleaner is suitable for homes, offices or commercial establishments and can be used with hydronic or radiant heating and/or cooling systems.
Installation options for the SED-1000 include;
- Above a solid ceiling or suspended ceiling
- In a basement, attic or crawl space
- In a utility room, furnace room, closet, etc.
Inflow and outflow air circulation can be customized to your specifications. Consult your HVAC contractor for installation and required ducting (not included). Its efficient multistage HEPA/Carbon filtering assures quality indoor air year round. All 3 filters on the SED1000 air cleaner are easily accessible. 1 unit recommended for every 1,000 square feet.
3-Filter System provides Excellent Air Filtration Results
Stage 1 - Pre-Filter - The pre filter is important because not only does it remove the larger particles, it also helps prolong the life of the HEPA filter in the system. Essentially, the pre filter is the first line of defense in maintaining your system; therefore promoting better indoor air quality.
12 Polyester pre filters are supplied with each system. Pre-filters cannot be washed and must be changed monthly.
Stage 2 - Activated Carbon Filter - Activated Carbon removes odors by absorbing odors, gases & VOC's into the filter. Think of carbon as an "odor sponge". It can hold many times its weight in odor molecules. However, once carbon becomes "saturated" it looses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
6 Activated Carbon Filters pads are supplied with each system. Carbon Filters cannot be washed and should be changed every 2 months.
Stage 3 - HEPA Filter - The HEPA filter removes the very small particles, such as smoke (tobacco, burning wood, oil, rosin), dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner and most viruses just to name a few. The HEPA filter is extremely important for superior air filtration and when used and maintained properly it will dramatically improve your indoor air quality. We cannot stress enough the importance of the HEPA filter to our system and the fact the HEPA filter must be maintained in order to achieve the maximum results.
1 - 12" HEPA Filter is supplied with each SED-1000 air cleaner. The HEPA filter cannot be washed and should be changed annually.
Features and Benefits of the SED-1000 Whole House HEPA Filter System
- Powerful 2-Speed Blower – Effectively draws the air from polluted areas.
- High Efficiency Filter Media – Over 95% of the airborne particles are removed on each pass.
- Refreshingly Clean Air – Virtually all of the smoke, pollen, dust and other particles are removed from the air that pass though the SED-1000, including microscopic airborne particles .
- Reduced Discomfort – Discharged air is cleaned of the many pollutants that can cause headaches, eye irritation, discomfort and stuffiness.
- Reduced Odors – Offensive odors including smoke residue that absorb into clothing, furniture and carpeting are reduced.
- Reduced Allergies & Asthma – Lowering the pollen, spores and fungi count helps to reduce allergies and asthma that may be caused by these contaminants.
SED-1000 Whole House Air Cleaner Specifications
|Capacity||Up to 1,000 Sq. Ft.|
|Two Speed (Toggle Switch)||High - 850 CFM | Low - 650 CFM|
|Installation Options||Joist or Wall Mount|
|Dimensions||36" L x 24-1/4" w x 13" H|
|Cabinet Construction||16 gauge gray steel cabinet|
|Shipping Weight||125 lbs.|
|Electrical||4.2 amps | 120V*, 1/4 Hp|
|Three Filter System||Includes 1 Year Supply of Filters;
1 - 12" 95% HEPA Filter
6 - 1/2" Activated Carbon Filters
12 - 1/2" Pre-Filters
|Warranty||10 year warranty. Warranty is effective as long as filters are changed as required on a regular basis.|
|Certifications||All electrical components and fan motor are UL Listed and CSA Certified|
|NOTE: The SED-1000 is equipped with 4 eye bolts installed on each system. Also included are 4 "S" hooks, 4 eye lags and 20' industrial hanging wire.|
|NOTE: The SED series is designed for whole-house contractor-installed ducted use. Mounting is joist or wall (specify at time of order). For optimal air quality it is recommended that a supply air diffuser be located in every room of the home. At minimum there should be at least one supply and one return per floor. Contact a local HVAC Contractor for installation and required ducting (not included).|
|* The SED-1000 Whole house air purification system is designed to be wired to a 120 VAC power source that is interlocked with the HVAC system blower. Wiring connections are located in the junction box. All wiring shall meet local codes.|
