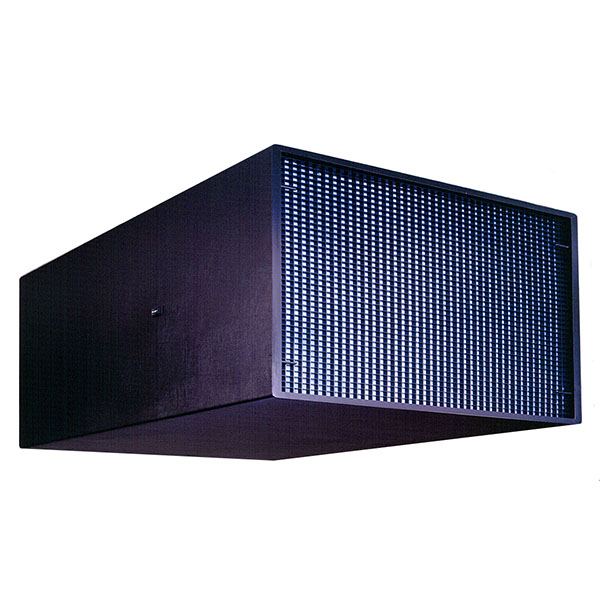

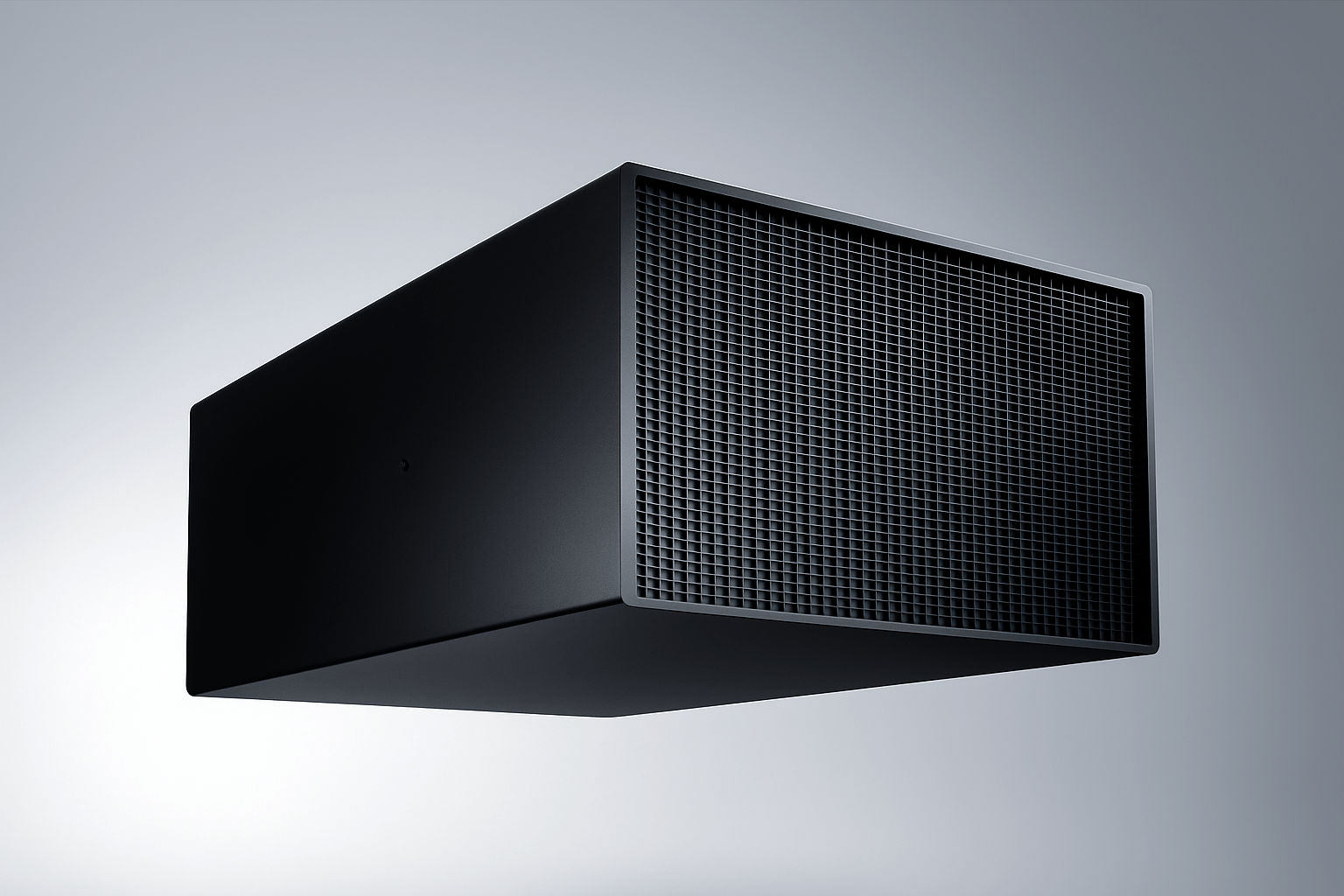

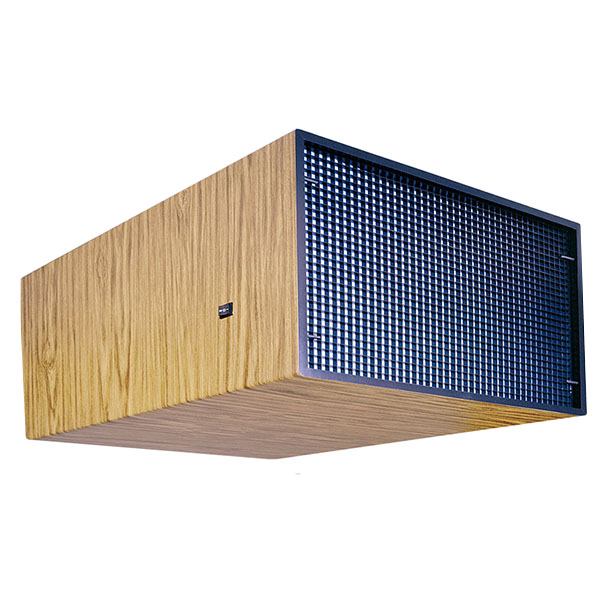

The MARK-10-V Heavy-Duty Smoke Eater & Air Purifier Is The Best Smoke, Odor & Airborne Contaminant Removal Machine For Places With 9-10 Foot Ceilings
One MARK-10V covers approximately 4,000 cubic feet at 650-850 cubic feet per minute.
Includes installation hardware and all filters needed for the first year.
The MARK-10-V smoke eater and heavy-duty commercial air purifier is recommended for tobacco smoke, musty odor, and airborne contaminant removal in areas with 9-10 foot high ceilings such as halls, restaurants, bars, lounge, taverns, electrical rooms, salons, shops, hospitals, labs, and much more.
The High Efficiency filter and 18-pound Carbon V-Bank filter in the MARK-10V commercial smoke eater is a superior combo for removing offensive odors and gases. It's also ideal for removing molecular contaminants in commercial buildings, airports, nursing homes, VFWs, and stadiums, as well as many other commercial and light industrial applications. The V-Bank filter will hold up in areas with higher humidity and in corrosive atmospheres.
3-Filter Smoke Elimination System Provides Superior Air Results
In addition to providing a 95% High Efficiency filter media, The MARK10V Commercial Smoke Eater utilizes 18 pounds of activated carbon in a V-Bank housing. Since High Efficiency filters alone cannot remove gases, odors, or particles smaller than .3 microns, activated carbon is a necessary requirement for truly clean air. Activated carbon will adsorb 'some of almost any vapor'. It has a large capacity for organic molecules, especially solvents. Activated carbon is also capable of adsorbing and retaining a wide variety of odors, chemicals - including cigar smoke smells and cigarette smoke smells - and works extremely well under a wide range of temperature and humidity conditions.
Stage 1 - Pre-Filter
The 1/2-inch polyester pre-filter removes large particles such as lint, hair, dust, and pollen. The pre-filter is important because it helps prolong the life of the High Efficiency filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system.
(12) Polyester pre-filters are included with each unit. Pre-filters cannot be washed and must be changed monthly.
Stage 2 - 18 Pound Carbon V-Bank Filter
The 18 lb Carbon V-Bank Filter in the MARK-10-V is an excellent choice when the need to control tobacco smells is required - including cigar & cigarette odors, and marijuana odors. Activated Carbon removes odors by absorbing gases & VOCs into the porous carbon granules. Think of carbon as an odor sponge. It can hold many times its weight in odor molecules. However, once carbon becomes saturated it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
(1) 18 Pound Carbon V-Bank is included with each unit. The Carbon V-Bank Filter cannot be washed and should be changed annually.
Stage 3 - High Efficiency Filter
The High Efficiency filter removes very small particles, such as smoke from tobacco (including hookah, cigarette, cigar & marijuana smoke), burning wood, oil, rosin, dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses, just to name a few. As you can see, the High Efficiency filter is an extremely important filter. When used and maintained properly, it will dramatically improve your indoor air quality.
(1) 6-inch High Efficiency Filter is supplied with each MARK-10/V Smoke Eater. For best results, the High Efficiency filter cannot be washed and should be changed annually.

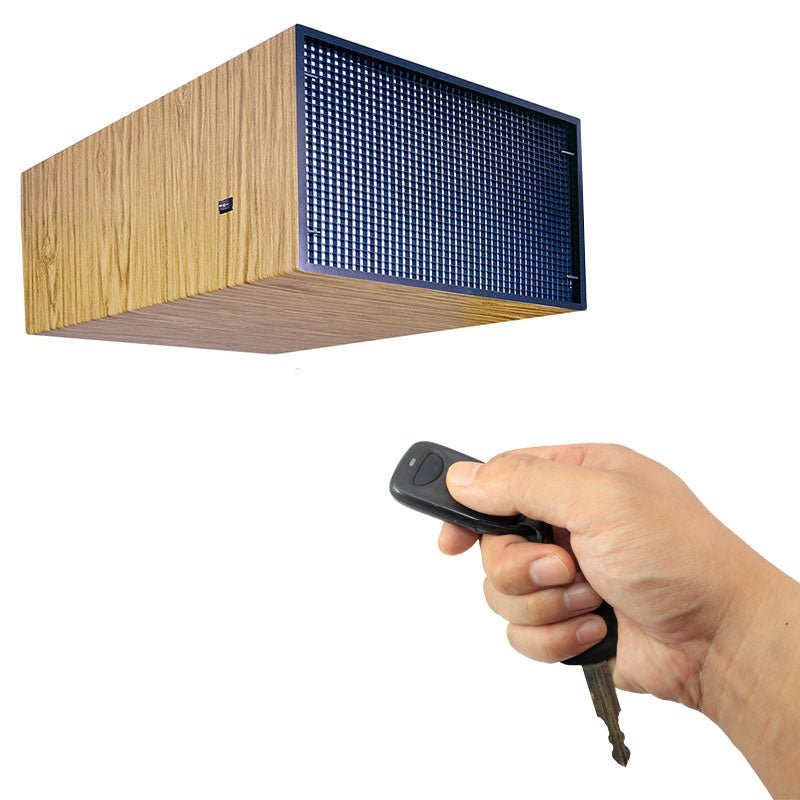

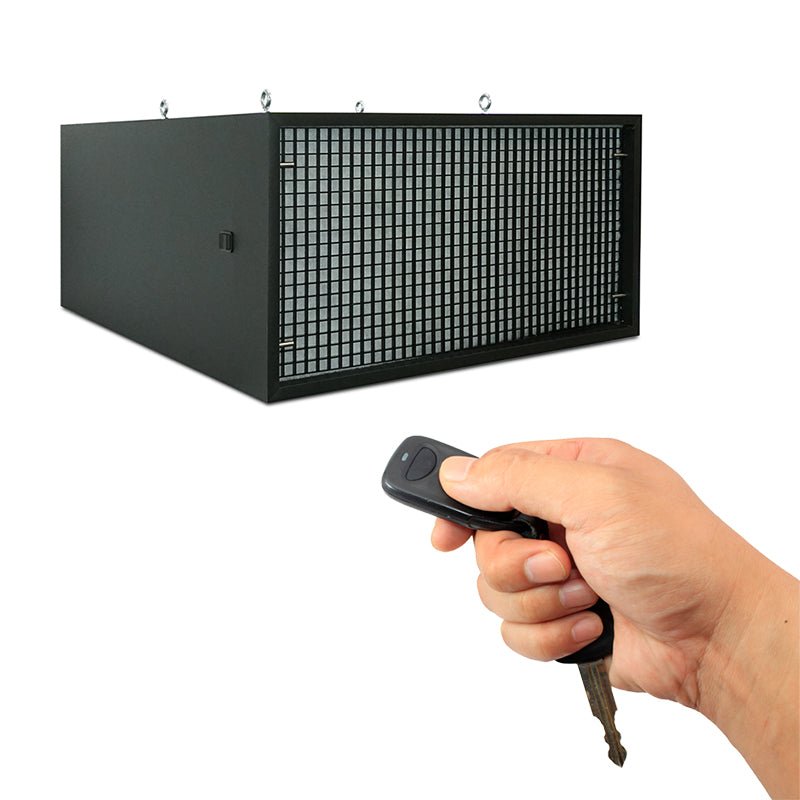

OPTIONAL - Remote Control
Easily control the settings on your MARK-10-V Smoke Eater with a handy Remote Control Key Fob. If your Smoke Eater is installed in an awkward area or is too high to reach, the remote control is an excellent choice. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) Receiver / Transmitter range is approximately 10 feet under normal operating conditions.
Partial list of gases that can be removed with activated carbon:
- Organic Compounds - Acids, Alcohols, Aldehydes
- Chlorinated Hydrocarbons - Esters, Ethers, Ketones, Mercaptans, Amines
- Inorganic Compounds - Halogen Acids, Halogens, Sulphuric Acid, Sulphur Dioxide, Phosgene
- Miscellaneous Odors From - Humans, Animals, Foods, Smoking, Cooking, and Waste Processes
Applications for the MARK 10V Include:
- Airports, libraries, hospitals, research facilities, office buildings, computer rooms
- Clean rooms, electrical rooms, microelectronic applications
- Retail stores, print shops, nail salons, stadiums, auditoriums, municipal buildings
- Lounges, restaurants, bars, bingo halls, VFW halls, nightclubs, cigar lounges, hookah bars, marijuana growing facilities
- Homes, pet hospitals, pet groomers, medical laboratories, nursing homes, and health care facilities.
Reducing airborne contaminants can provide a more effective work area and will help to keep your employees, customers, and family happier!
It is recommended that the MARK-10-V Heavy Duty Air Cleaner be installed in areas that have 9-10 ft. ceilings heights. The MARK-10-V is equipped with 4 eye bolts 16-inch on center on top of each system for easy installation. The installation hardware also includes 4 S-hooks, 4 eye lags, and industrial hanging wire. 1 unit recommended for every 4,000 cubic feet.
