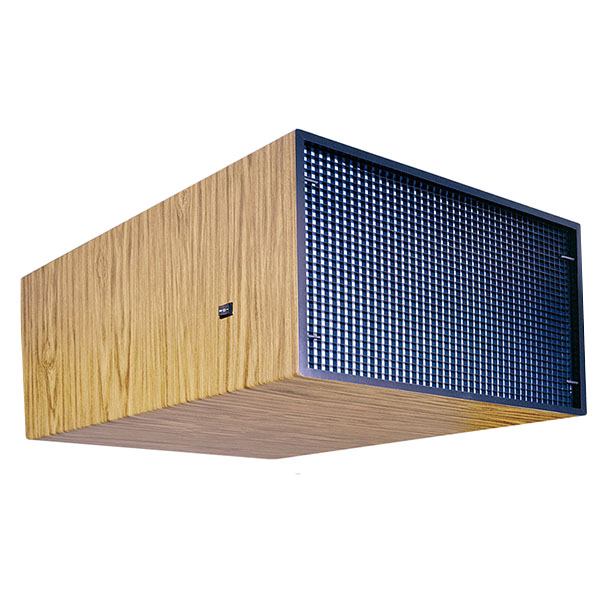

Superior Quality, Performance, and Filtration Make the Mark-10 Commercial Air Cleaner and Smoke Eater the Best in the Industry
600-1000 CFM - (1) MARK10 covers approximately 6,000 cu. ft.
Includes installation hardware PLUS all filters needed for the first year!
The Mark-10 is best suited for cigar smoke, cigarette smoke removal, musty odors and any type of indoor air quality issue in Bingo Halls, VFW Halls, Restaurants, Bars, Smoking Lounge, Taverns, Billiard Halls, Meeting Rooms and more. Recommended ceiling height should not exceed 10'. 1 unit recommended for every 6,000 cu. ft.
3 Filter System Provides Excellent Clean Air Results
The MARK10 ceiling mounted HEPA Filter System uses a powerful blower to draw the air from smoke-filled areas. As the air is drawn through the high-efficiency filter media, 95% of the tobacco smoke particles are removed on each pass. The clean air that is constantly discharged into the area is refreshing and remarkably free of tobacco smoke and other contaminants.
Stage 1 - Pre-Filter
The pre-filter is important because not only does it remove the larger particles, it also helps prolong the life of the HEPA filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system; therefore promoting better indoor air quality.
(12) Polyester pre-filters are supplied with each system. Pre-filters cannot be washed and must be changed monthly.
Stage 2 - Activated Carbon Filter
Activated Carbon removes odors by absorbing odors, gases & VOC's into the filter. Think of carbon as an "odor sponge". It can hold many times its weight in odor molecules. However, once carbon becomes "saturated" it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
(6) Activated Carbon Filters pads are supplied with each system. Carbon Filters cannot be washed and should be changed every 2 months.
Stage 3 - HEPA Filter
The HEPA filter removes the very small particles, such as smoke (tobacco, burning wood, oil, rosin), dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses just to name a few. The HEPA filter is extremely important for superior air filtration and when used and maintained properly it will dramatically improve your indoor air quality. We cannot stress enough the importance of the HEPA filter to our system and the fact the HEPA filter must be maintained in order to achieve the maximum results.
(1) 12-inch HEPA Filter is supplied with each Mark-10 air cleaner. The HEPA filter cannot be washed and should be changed annually.
OPTIONAL - Ultraviolet Germicidal Lamps
Why Optional Ultraviolet Germicidal Lamps in Commercial Air Cleaners?
It's well known that ultraviolet germicidal lamps can destroy any microorganism because of its powerful UV-C rays. As a microbe passes through UV-C, the light penetrates directly into the organism's nucleus which disrupts the molecular bonds of it's "DNA". This breakage renders the microbe unable to reproduce and shortly thereafter the organism dies. This method is recommended by the Centers for Disease Control for its germicidal effects. The use of UV-C along with a highly efficient filter media provides a truly clean, virus & bacteria-free environment.
OPTIONAL - Remote Control

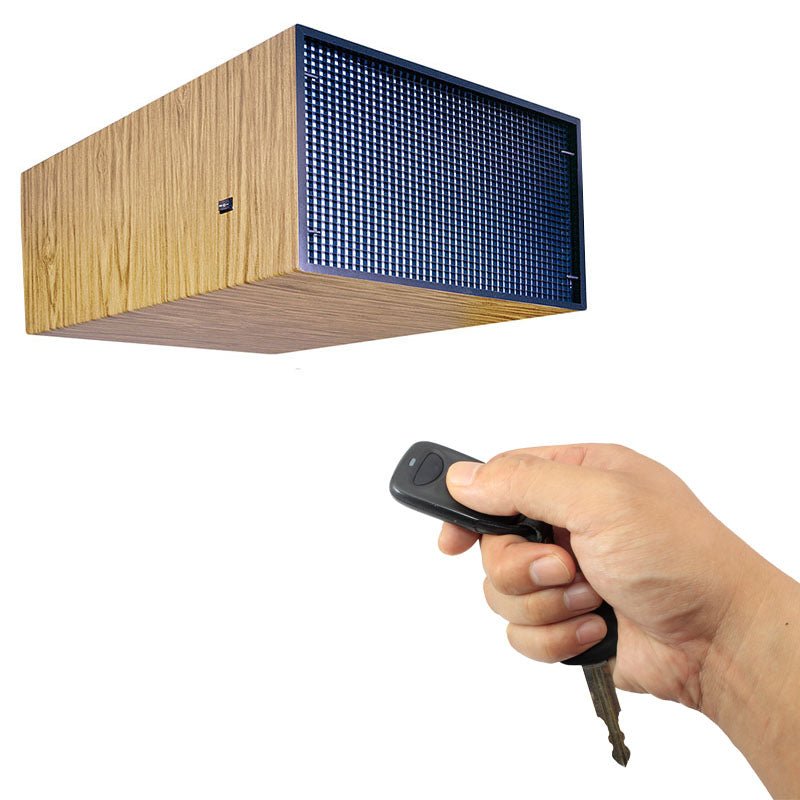

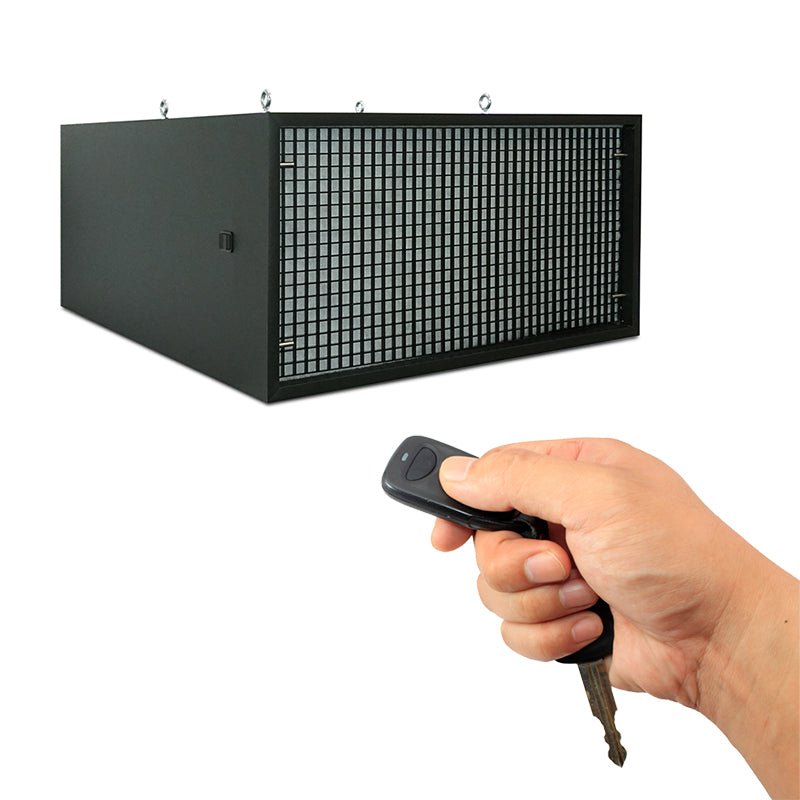

Easily control the settings on your MARK-10 Smoke Eater with a handy Remote Control Key Fob. If your Smoke Eater is installed in an awkward area or is too high to reach, the remote control is an excellent choice. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) Receiver / Transmitter range is approximately 100 feet under normal operating conditions.
Because of the superiority of our systems, we are the 1st Smoke Elimination System ever to be approved by the BPAA Quality Connection Program (Bowling Proprietors Association of America).
MARK-10 Ceiling Mount Commercial Air Cleaner Specifications
|Capacity||Up to 1,000 Sq. Ft.|
|Two Speed||High - 1000 CFM | Low - 600 CFM|
|Sound Level @ 5'||High - 68 dB | Low - 64 dB|
|Installation Options||Ceiling Mount or Wall Mount|
|The MARK-10 is equipped with (4) eyebolts installed 16" on center on top of each unit for easy installation. Installation hardware also includes (4) "S" hooks, (4) eye lags and 20' of industrial hanging wire.|
|Dimensions||35-1/2" (L) x 25-1/2" (W) x 13" (H)|

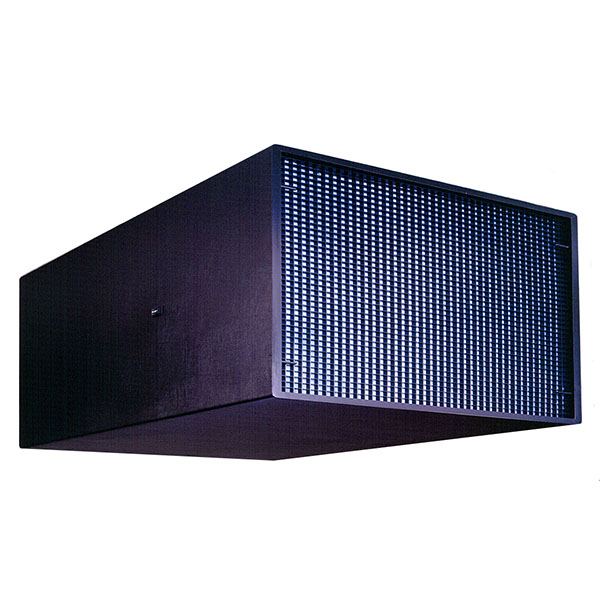

|Cabinet Options||Black | White | Woodgrain (Oak) | Cherry Finish|
|Shipping Weight||100 lbs.|
|Electrical||120V | 4.2 amps|
|Power Cord||10' long | 3-prong grounded plug - Plugin or Hardwire|
|Three Filter System||Includes 1 Year Supply of Filters;
(1) 12-inch HEPA Filter
(6) 1/2-inch Activated Carbon Filters
(12) 1/2-inch Pre-Filters
|Warranty||All Systems carry a lifetime Blower/Motor Warranty*|
|Certifications||Fan motor and all electrical components are UL Listed and CSA Certified|
|MARK-10 Owner's Manual|
|MARK-10 Brochure / Cut Sheet|
|*Lifetime Blower/Motor warranty applies if filters are changed as required and are purchased from Pure n Natural Systems, Inc.|
|This item ships by freight truck. Please refer to our shipping policy by clicking here.|
|This unit is NOT a stock item. It's built to order up and can take up to several weeks to ship. Please consider this when scheduling your project.|
