18 Pounds of Carbon in the MARK-20-V Commercial Air Cleaner for Tobacco Smoke and Odors Make it the Best Smoke Eater and Odor Removal System in the Industry.
1250-1650 CFM - One MARK-20-V Commercial Air Cleaner for Tobacco Smoke and Odors covers approximately 8,000 cubic feet.
Includes installation hardware PLUS all filters needed for the first year!
The MARK-20-V heavy-duty air cleaner is recommended for cigar smoke, cigarette smoke removal, musty odors, and any type of indoor air quality issue in large areas with high ceilings such as Bingo Halls, VFW Halls, Restaurants, Bars, Smoking Lounge, Taverns, Billiard Halls, Meeting Rooms and more. The 18 pound Carbon V-Bank Filter in the MARK-20/V Commercial Smoke Eater is superior at removing offensive odors and gases. It's also ideal for removing molecular contaminants in commercial buildings, airports, hospitals, VFW, and bingo halls, as well as many other commercial and light industrial applications. The V-Bank filter will hold up in areas with higher humidity and in corrosive atmospheres.
How does the MARK-20-V Commercial Air Cleaner for Tobacco Smoke and Odors Work?
In addition to providing a 95% high-efficiency HEPA filter media The MARK20V Commercial Smoke Eater utilizes 18 pounds of activated carbon in a V-Bank housing. Since HEPA filters alone cannot remove gases, odors, or particles smaller than .3 microns, activated carbon is a necessary requirement for truly clean air. Activated carbon will adsorb some of almost any vapor. It has a large capacity for organic molecules, especially solvents. Activated carbon is also capable of adsorbing and retaining a wide variety of odors, chemicals - including cigar smoke smells and cigarette smoke smells - and works extremely well under a wide range of temperature and humidity conditions.
3 Filter System Provides Superior Air Cleaning Results
Stage 1 - Pre-Filter
The 1/2-inch polyester pre-filter removes large particles such as lint, hair, dust, and pollen. The pre-filter is important because it helps prolong the life of the HEPA filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system.
(12) Polyester pre-filters are included with each unit. Pre-filters cannot be washed and must be changed monthly.
Stage 2 - 18 Pound Carbon V-Bank Filter
The 18 pound Carbon V-Bank Filter in the MARK-20/V is an excellent choice when the need to control tobacco smells is required - including cigar & cigarette odors, and marijuana odors. Activated Carbon removes odors by absorbing gases & VOCs into the porous carbon granules. Think of carbon as an odor sponge. It can hold many times its weight in odor molecules. However, once carbon becomes saturated it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
(1) 18-Pound Carbon V-Bank is included with each unit. The Carbon V-Bank Filter cannot be washed and should be changed annually.
Stage 3 - HEPA Filter
The HEPA filter removes very small particles, such as smoke from tobacco (including hookah, cigarette, cigar & marijuana smoke), burning wood, oil, rosin, dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses, just to name a few. As you can see, the HEPA filter is an extremely important filter. When used and maintained properly, it will dramatically improve your indoor air quality.
(1) 6-inch HEPA Filter is supplied with each MARK-20-V Smoke Eater. For best results, the HEPA filter cannot be washed and should be changed annually.

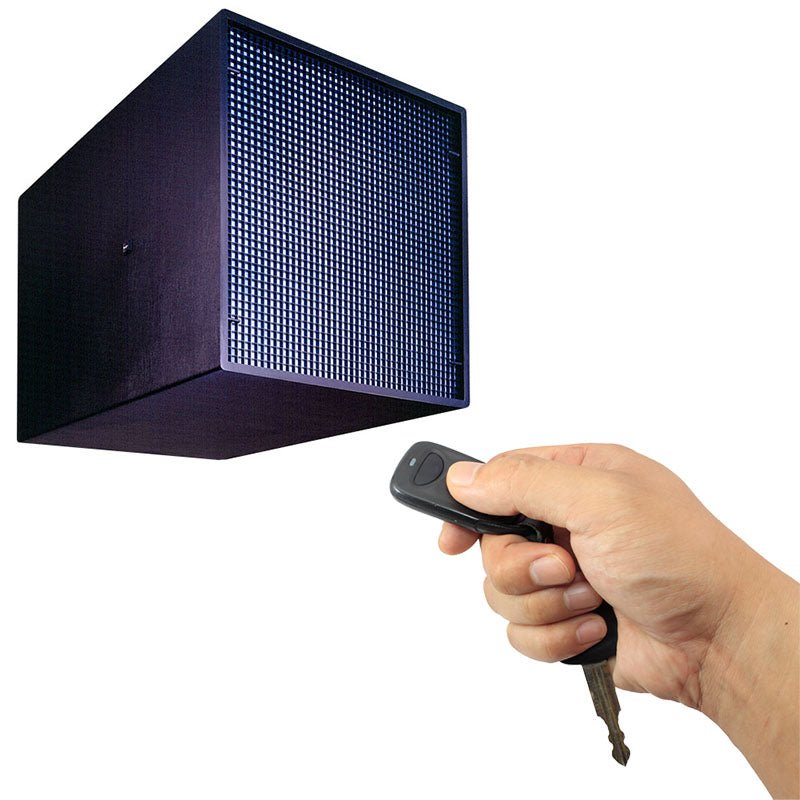

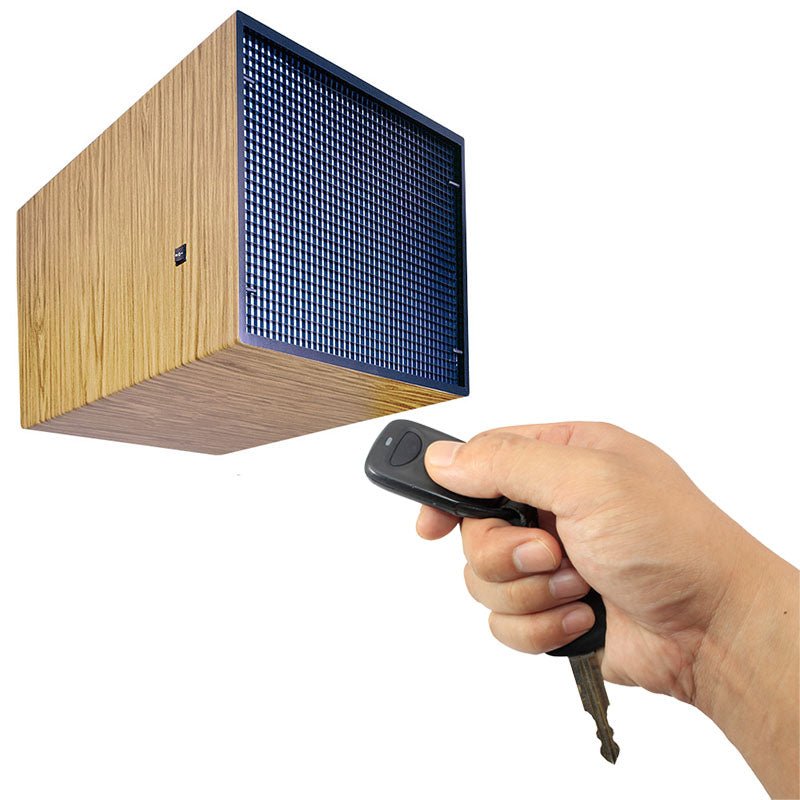

OPTIONAL - Remote Control
Easily control the settings on your MARK-15/V Smoke Eater with a handy Remote Control Key Fob. If your Smoke Eater is installed in an awkward area or is too high to reach, the remote control is an excellent choice. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) Receiver / Transmitter range is approximately 100 feet under normal operating conditions.
The following is a partial list of gases that can be removed with activated carbon:
- ORGANIC COMPOUNDS - Acids, Alcohols, Aldehydes
- CHLORINATED HYDROCARBONS - Esters, Ethers, Ketones, Mercaptans, Amines
- INORGANIC COMPOUNDS - Halogen Acids, Halogens, Sulphuric Acid, Sulphur Dioxide, Phosgene
- MISCELLANEOUS ODORS FROM - Humans, Animals, Foods, Smoking, Cooking, and Waste Processes
Applications for the MARK-20/V Include;
- Airports, libraries, hospitals, research facilities, office buildings, computer rooms
- Clean rooms, electrical rooms, microelectronic applications
- Retail stores, print shops, stadiums, auditoriums, municipal buildings
- Lounges, restaurants, bars, bingo halls, VFW halls, night clubs, cigar lounges, hookah bars, marijuana facilities
- Homes, pet hospitals, pet groomers, medical laboratories, nursing homes, and health care facilities.
Reducing airborne contaminants can provide a more effective work area and will help to keep your employees, customers, and family happier!

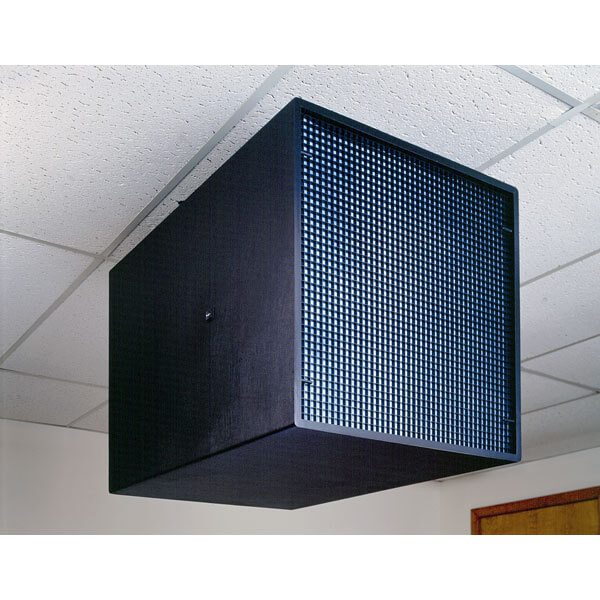

It is recommended that the MARK-20-V Commercial Air Cleaner for Tobacco Smoke and Odors be installed in areas that have 12 ft. ceilings or higher. The Mark 20/V commercial air purifier is equipped with 4 eye bolts positioned 16-inch on center on top of each system for easy installation. The installation hardware also includes: 4 S-hooks, 4 eye lags, and industrial hanging wire. 1 unit recommended for approximately 8,000 cubic feet.
MARK-20-V Commercial Air Cleaner for Tobacco Smoke and OdorsSpecifications
|Capacity||Up to 8,000 Cubic Feet|
|Two Speed||Low - 1,250 CFM | High - 1650 CFM|
|Installation Options||Ceiling Mount or Wall Mount|
|The MARK-20/V is equipped with (4) eyebolts installed 16-inch on center on top of each unit for easy installation. Installation hardware also includes (4) S-hooks, (4) eye lags and 20' of industrial hanging wire.|
|Dimensions||36" (L) x 25" (W) x 25" (H)|
|Cabinet Color Options||Black | White | Woodgrain (Oak) | Cherry|
|Shipping Weight||187 lbs|
|Electrical||120V | 60 Hz | 9.0 Amps|
|Power Cord||8-foot long, 3-Prong Grounded Plug - Plugin or Hardwire|
|Three Filter System||Includes 1 Year Supply of Filters;
(1) 6-inch HEPA Filter
(1) 6-inch Carbon V-Bank Filter (18 lb. Carbon Filter)
(12) 1/2-inch Pre-Filters
|Warranty||All Systems call a lifetime Blower/Motor Warranty*|
|Certifications||Fan motor and all electrical components are UL Listed and CSA Certified|
|MARK-20V Owner's Manual|
|MARK-20V Cut Sheet / Brochure|
|*Lifetime Blower/Motor warranty applies if filters are changed as required and are purchased from Pure n Natural Systems, Inc.|
|This item ships by LTL freight. Please refer to our shipping policy by clicking here.|
|This unit is NOT a stock item. It's built to order up and can take up to several weeks to ship. Please consider this when scheduling your project.|
