Keep your bar, VFW hall, hotel, truck stop, beauty salon, retail shop, bowling center, restaurant or lounge area smoke-free with our flush/ceiling mount commercial HEPA filter smoke eater systems!
1250-1650 CFM - The FM-2000 Commercial Smoke Eater covers approximately 8,000 cubic feet.
The FM-2000 includes installation hardware PLUS all filters needed for the first year!

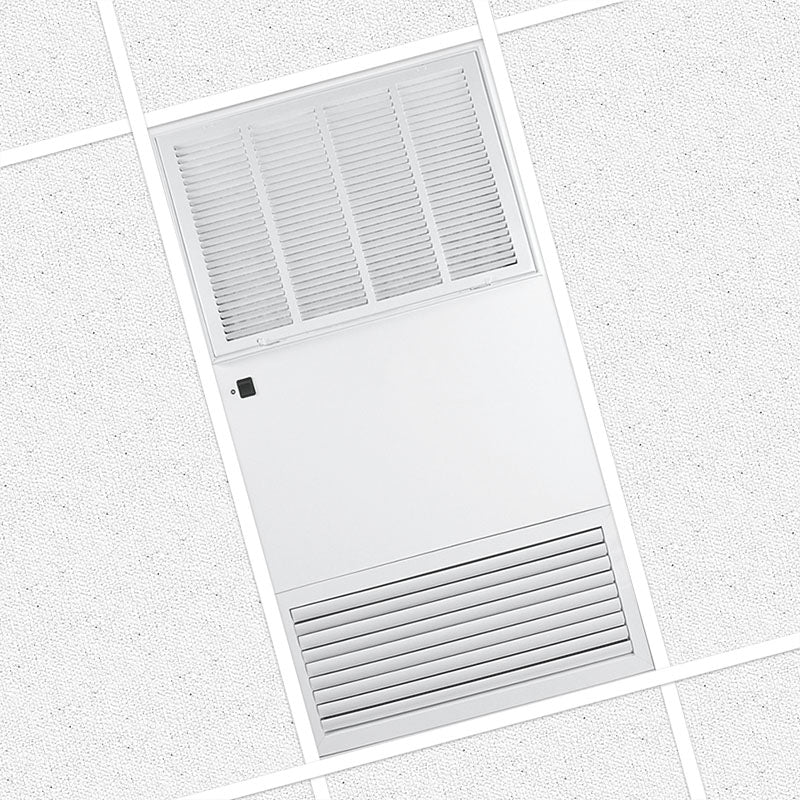

The FM-2000 is a powerful flush mount air cleaner that's designed to drop into a suspended ceiling. It replaces either (1) 2' x 4' tile or (2) 2' x 2' tiles from the suspended ceiling. The clearance above the suspended ceiling needs to be at least 18-inches and it's recommended that the air cleaner is installed in areas that do not exceed a 12-foot ceiling height. The weight of the system does not rest on the ceiling grids but is secured above the suspended ceiling to a permanent structure such as a joist or beam. All filters in the FM2000 smoke eater commercial air cleaner are accessible from the door on the face of the system. 1 unit is recommended for approximately every 8,000 cubic feet.
3-Filter System Provides Excellent Clean Air Results
The FM-2000 uses a powerful blower to draw the air from smoke-filled areas. As the air is drawn through the high-efficiency filter media, 95% of the tobacco smoke particles are removed on each pass. The clean air that is constantly discharged into the area is refreshing and remarkably free of tobacco smoke and other contaminants. This is particularly beneficial in lounges and restaurants because it reduces the need for segregated smoking areas. Practically all of the dust, dirt, pollen and other contaminant particles are removed from the air passing through the air cleaner. Even the microscopic airborne particles are trapped.
Stage 1 - Pre-Filter
The pre-filter is important because not only does it remove the larger particles, it also helps prolong the life of the HEPA filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system; therefore promoting better indoor air quality.
Twelve polyester pre-filters are included with each system. Pre-filters cannot be washed and must be changed on average every month.
Stage 2 - Activated Carbon Filter
Activated Carbon removes odors by absorbing odors, gases & VOCs into the filter. Think of carbon as an odor sponge. It can hold many times its weight in odor molecules. However, once carbon becomes saturated it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
Six activated carbon filters are included with each unit. Carbon Filters cannot be washed and should be changed on average every 2 months.
Stage 3 - HEPA Filter
The HEPA filter removes the very small particles, such as smoke (tobacco, burning wood, oil, rosin), dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses just to name a few. The HEPA filter is extremely important for superior air filtration and when used and maintained properly it will dramatically improve your indoor air quality. We cannot stress enough the importance of the HEPA filter to our system and the fact the HEPA filter must be maintained in order to achieve the maximum results.
One 12-inch HEPA filter is included with each unit. The HEPA filter cannot be washed and should be changed on average once per year.
OPTIONAL - Remote Control

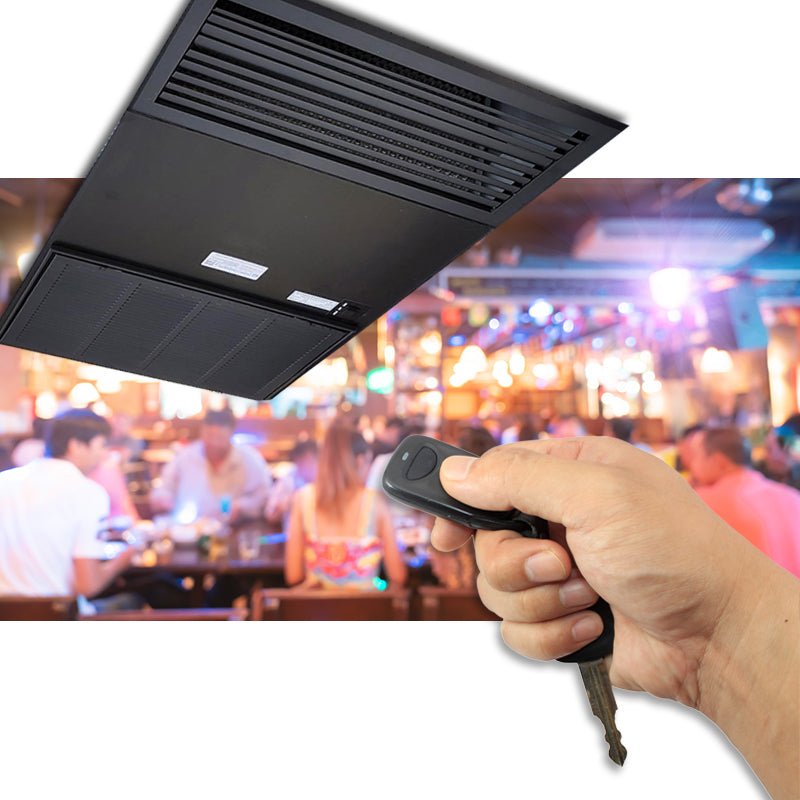

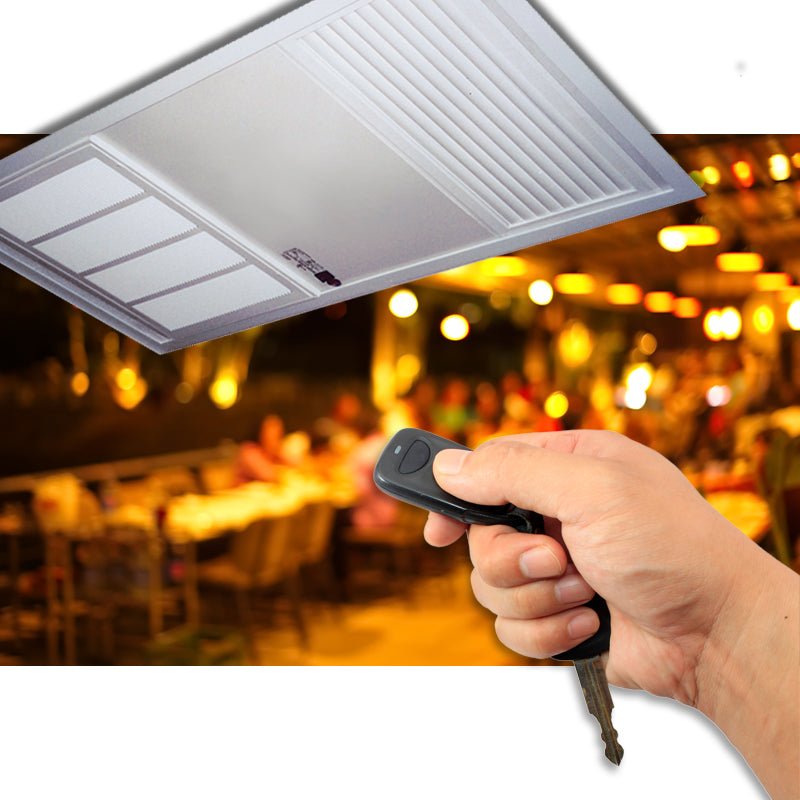

Easily control the settings on your FM-2000 Smoke Eater with a handy Remote Control Key Fob. If your Smoke Eater is installed in an awkward area or is too high to reach, the remote control is an excellent choice. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) The receiver / Transmitter range is approximately 100 feet under normal operating conditions.
FM-2000 Commercial Flush Mount Air Filter and Smoke Eater Specifications
|Capacity||Up to 8,000 Cubic Feet|
|2-Speed||High - 1,650 CFM | Low - 1,250 CFM|
|Sound Level @ 5'||High - 67 dB | Low - 66 dB|
|Installation Options||Flushmount - Fits into (2) 2' x 2' or (1) 2' x 4' ceiling tile|
|Install by removing a ceiling tile and fitting the unit in. The weight of the system does not rest on the ceiling grids but is secured above the suspended ceiling to a permanent structure such as a joist or beam. Installation hardware included - (2) eyebolts, (2) eye lags, industrial hanging wire.|
|Dimensions||46-1/2" (L) x 23-3/4" (W) x 17" (H)
NOTE: 18" clearance above the drop ceiling is required

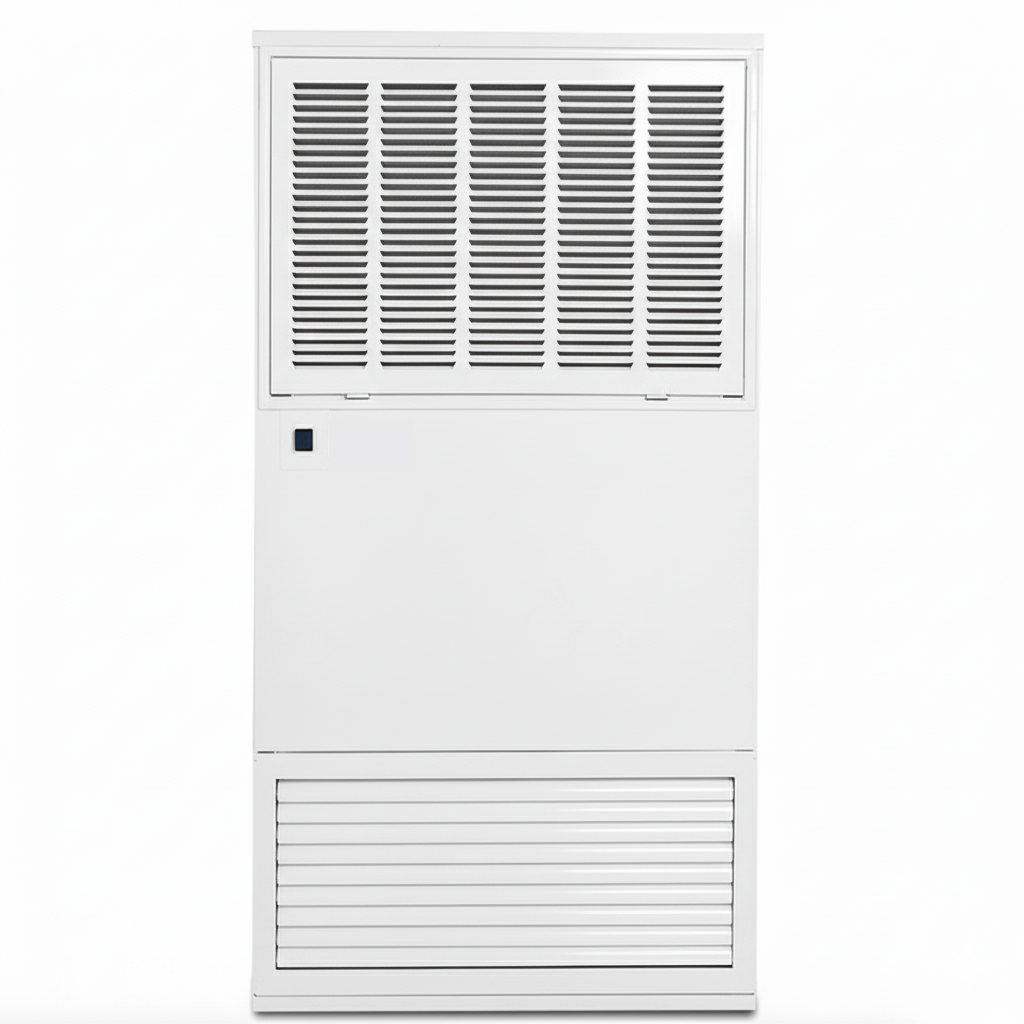

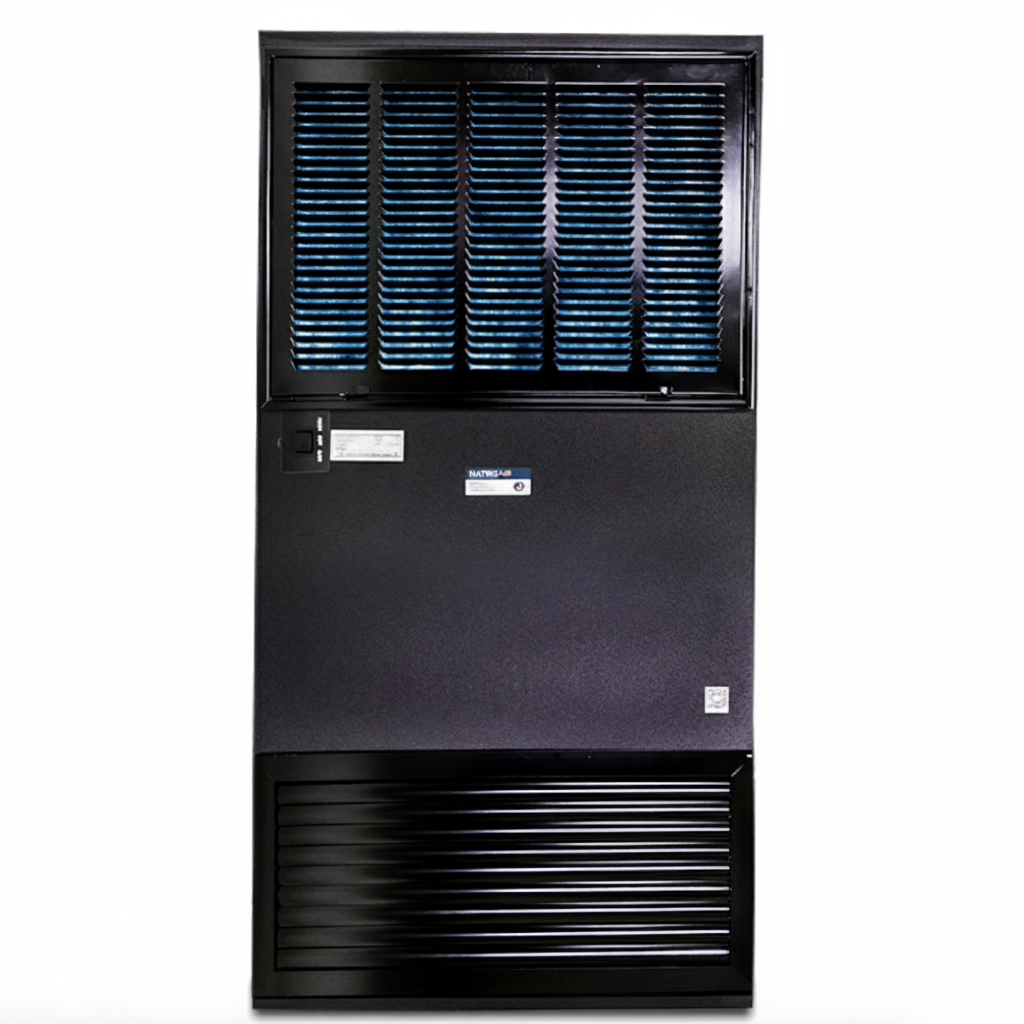

|Cabinet Construction||Aluminum - Available in Black or White|
|Weight||Actual - 135 lbs | Shipping - 175 lbs|
|Electrical||9.2 amps | 120V|
|Power Cord||8-foot long, 3-prong grounded plug - Plug-in or Hardwire|
|Three Filter System||Each unit includes the following filters;
(1) 12-inch HEPA Filter
(6) 1/2-inch Activated Carbon Filters
(12) 1/2-inch Pre-Filters
|Warranty||1 Year Manufacturer's Warranty|
|Certifications||Fan motor and all electrical components are UL Listed and CSA Certified|
|FM-2000 Owner's Manual|
|FM-2000 Brochure / Cut Sheet|
|This unit has not been tested for compliance with California Air Resource Board requirements and cannot be shipped to California.|
|This item ships by LTL freight. Please refer to our shipping policy by clicking here.|
|This unit is NOT a stock item. It's built to order up and can take up to several weeks to ship. Please consider this when scheduling your project.|
