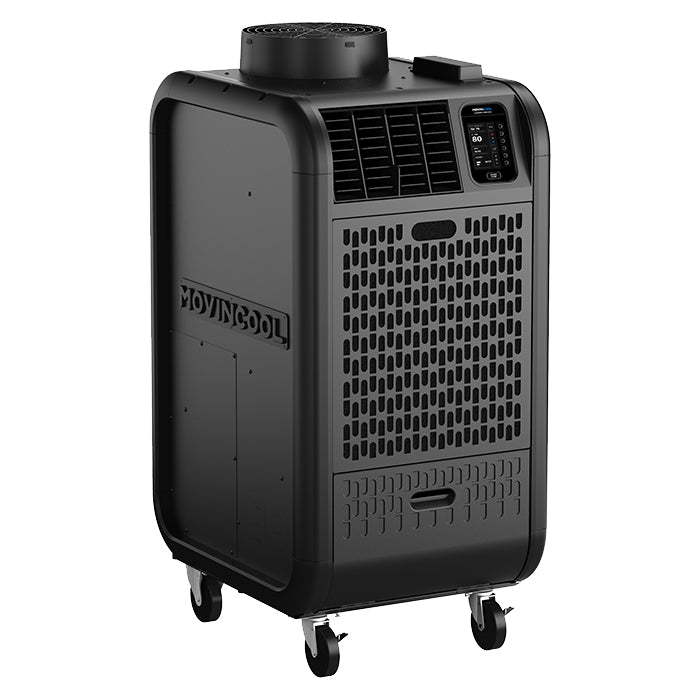

The Climate Pro K12 Portable Air Conditioner is Specifically Designed for Cooling your Office or Computer Room
The newly redesigned Climate Pro K12 Portable Air Conditioner is ready to provide cool air to any office or server room environment. The Climate Pro K12 features a color-enhanced, easy-to-read LED control panel for simplified operation. Its stylish and modern matte-black cabinet includes edge bumpers for safer handling and portability. Easily & swiftly move your Climate Pro K12 around your facility with its large smooth-rolling casters. On-board features include a built-in electrical cord compartment to safely keep the power cord out of the way, plus built-in flanges provide a quick-connect design for exhaust air.
The Climate Pro K12 from MovinCool is ideal for...Offices - Server & Telecom Rooms - Hospitals - Schools - Laboratories - Banks - Emergency Back-up - Supplemental Cooling - After-hours Cooling - Retail Spaces
Air-cooled portable air conditioners are most often the system of choice for end-users and industry professionals looking for effective spot cooling systems. The fact that air-cooled portable air conditioning units can be installed almost anywhere - usually in minutes - explains their popularity as server room air conditioners, data center air conditioners, and cooling systems for a wide range of other applications.
Climate Pro K12 Portable Air Conditioner Features
- Digital temperature control - allows you to set the desired temperature and walk away.
- Auto Operation - allows 24/7 programmable back-up of central systems.
- Operates on standard 115V power.
- 12,000 BTU/h of cool, dry air. Efficient cooling for your specific size space.
- Provides effective cooling - down to 65°F - in the warmest areas up to 95°F.
Additional Specifications
| MovinCool Climate Pro K12 Owner's Manual |  |
| MovinCool Climate Pro K12 Product Spec Sheet |  |
| (NOTE: 12,000 BTUs = 1 ton of cooling / 1 ton of cooling covers 400-500 sq ft) | |
| NOTE: Specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models also feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. All models are 50 Hertz (Hz) compatible with a slight performance decrease from the specifications listed above. |
|
MovinCool Climate Pro K-12 Installation and Accessory List
All accessories are sold separately.
All accessories are sold individually unless otherwise noted.
Exhaust duct required in most cases.
1. Quick Connect Two Hole Adapter/Flange - 481170-0480
Base Plate has two 5-inch diameter Quick Connect holes with molded flanges. Includes wire clamp and mounting screws.
(Use with #2 quick connect nozzle(s).)
NOTE: #3 Two Hole Base Plate is required to install the Quick-Connect Adapter Flange.
2. Quick Connect Nozzle - 484209-0480
5-inch diameter Quick-Connect Nozzle extends up to 2-ft in length. Includes trim ring.
(Use with #1 quick-connect adapter/flange base plate.)
3. Nozzle Adapter Kit - Two Hole Base Plate - 481769-0280
The base plate has two 5-inch diameter holes to convert the airflow from factory-installed louvers to nozzles or air ducts.
4. Supply Air Flange Kit - 481170-0450
5-inch diameter flange kit includes wire clamp and mounting screws. (Used to attach the self-supported cold air duct to the two-hole base plate.)
5. Self-Supported Cold Air Duct - LA481744-0420
5-inch diameter self-supported duct extends from 6.5-ft to 10-ft in length. Provides specific, directional airflow.
6. Trim-Ring - 481851-0200
5-inch diameter Trim Ring mounts on the end of the self-supported duct.
(Not required, but the trim ring prevents sharp edges and/or unraveling and completes the look.)
7. Outdoor Air (Heat Exchanger) Plenum - 484350-1160
For Negative Pressure Rooms - When balanced airflow is required, attached the outdoor heat exchanger plenum with a 12-inch diameter duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative pressure. It attaches to the condenser intake side of the unit and is hinged for filter cleaning.
(Use with 12-inch Self-Supported Duct #8 or 12-inch Flexible Duct #10.)
8. Self-Supported Warm Air Duct / Negative Pressure Condenser Intake Air Duct - LA481744-0410
12-inch diameter Self-Supported Exhaust Duct extends up to 10-ft in length.
(Used as a warm air exhaust duct or intake duct with negative pressure air plenum.)
9. Ceiling Tile Exhaust Kit - HDK-12
MovinCool makes it easy to remove exhaust air. Simply replace your existing ceiling tile with the HDK-12 Ceiling Tile Exhause Kit. Place the Exhaust Flex Duct on top of the MovinCool unit and insert it into the specially cut ceiling tile.
Includes 1) 2-ft x 2-ft Ceiling Tile with 8-ft of 12-inch diameter Flexible Exhaust Duct.
10. Flexible Duct – LAY45771-0060 (not pictured)
12-inch diameter x 8-ft Flexible Air Duct. Can be used in place of a Self-Supported duct.
11. Condensate Pump 115V - 484789-0210
No need to bother with manually emptying the tanks. The condensate pump will remove the water automatically to any remote drain. Maximum lift – 17-ft. Includes 3/8-inch diameter x 20-ft length drainage hose + installation hardware.
12. Storage Cover - LA484420-0840
Durable black nylon oxford unit storage cover.
