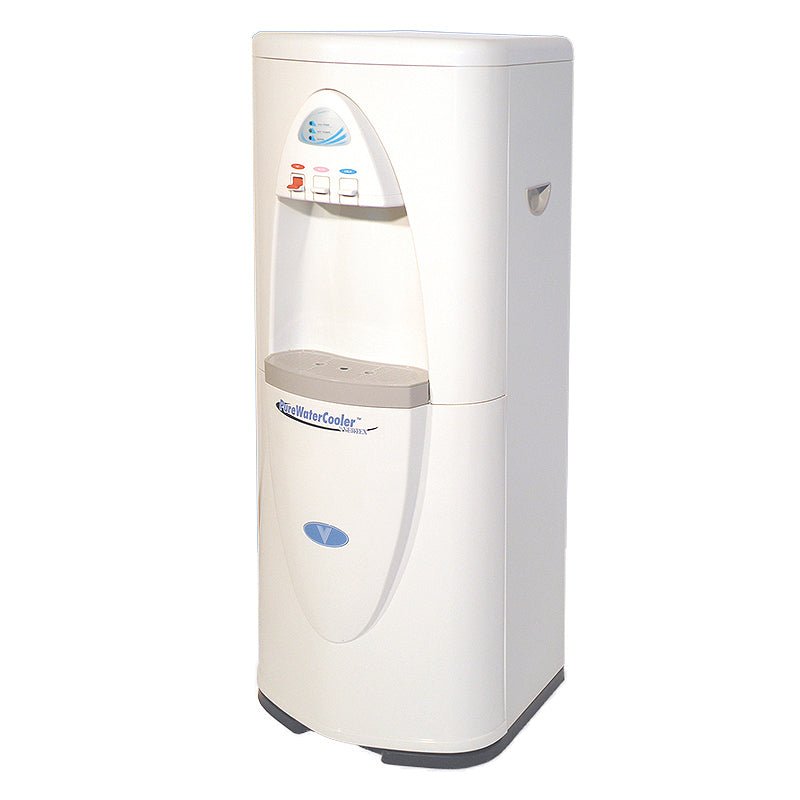

PWC-3500 | Vertex 3-Temperature High Capacity Bottleless Filtered Water Dispenser

The Vertex PWC-3500 High Capacity Bottleless Filtered Water Dispenser delivers steaming hot, ice-cold, or room temperature water.

The PWC-3500 Super Deluxe High Capacity filtered water dispenser features a large 4-gallon water storage capacity for offices or factories of up to 60 people. Deluxe model features include a taller dispensing height area for large carafes sports bottles and a flat top for placing coffee brewers or storing cups and utensils.

Say goodbye to the expense and bulky storage problems of 5 gallon bottled water jugs. Easily connect the PWC-3500 to a 1/4-inch water source and plug it into the nearest outlet. You'll have a constant supply of fresh & filtered steaming hot, ice-cold, or room temperature water. With its completely sealed, stainless steel cold water reservoir and hot water tank, you can count on clean, bacteria-free water anytime.

PWC-3500 3-Temperature High Capacity Bottleless Filtered Water Dispenser Filtration Options

No Filtration
This option may be desirable for homes, businesses, or offices that use Point of Entry filtration.

2-Stage Sediment & Carbon Filtration

• Stage 1 - 5 Micron Sediment Filter - Removes suspended particles, rust, and pipe scale down to 5 microns (about 1/10 the size of a human hair.)
• Stage 2 - 10 Micron Granular Activated Carbon Filter- GAC filter removes chlorine, bad tastes & odors plus other common, earthy, fishy, musty tastes and odors

2-Stage Sediment & Carbon Filtration PLUS 75 GPD (Gallon per Day) RO - Reverse Osmosis
Reverse Osmosis removes an average of 95% of dissolved minerals and other contaminants. RO membranes filter at the molecular level equivalent to 0.0001 microns. With the increasing pollution of our surface and groundwater with contaminants such as lead, mercury, and chromium-6, as well as the naturally occurring harmful contaminants such as arsenic, fluorides, and sulfides found in some areas of the country, it is more important than ever to have a way to remove these contaminants at the point of use.

(If Reverse Osmosis is preferred in the PWC-3500, there is an additional post carbon filter for further water polishing and purifying. When replacing the filter, please refer to filter kit - FK-108 when choosing this option.)

IMPORTANT - Coolers equipped with Reverse Osmosis require an outlet drain. The hot and cold tanks in bottleless water coolers with RO filtration take approximately 1-1/2 - 2 hours to fill from empty.

Optional UV Sanitizer - Germicidal Ultraviolet
UV light kills 99.9% of harmful bacteria in point-of-use filter systems and is FDA approved for disinfecting filtered water. The UV lamp radiates at 253.7 nanometers with a power flux of 40,000 microwatt-seconds per square centimeter. UV energy at 254 nm kills 99.9% of various microorganisms. As the water flows around the lamp (which is encased in a quartz sleeve), it is irradiated by the UV light. Water flow is restricted to .5 GPM to allow time for the UV light to be effective. 9,000 hour lifetime - replace annually.

NOTE - The UV stage is recommended for well water in rural areas, or in towns and villages that have uncertain chlorination. If your water is being supplied from a well or spring you should consider Ultraviolet. Or, if you're not sure that your municipality is sufficiently chlorinating the water supply, you may want to consider adding UV as a final stage in your purification process.

Optional In-Tank Ozone Sanitizer
The Optional Ozone Sanitizer helps to eliminate biological growth in Bottleless Water Cooler tanks by automatically dispersing micro-bubbles of chemical-free ozone into the water of the reservoir tank. The system auto-activates for 10 minutes every 24 hours. Algae, mold, mildew, and bacteria cannot survive ozone. Ozone quickly disperses and does not alter the taste of the water. With the in-tank ozone sanitizer installed, the frequency of cleaning tanks is reduced. NOTE: The ozone generator system is a factory-installed option.

Features and Benefits of the PWC-3500 Tri-Temperature High Capacity Bottleless Filtered Water Cooler

• Three Temperature System - Cold - 37-50°F, Adjustable | Hot - 180°F Autocontrol | Room Temperature
• Separate hot/cold power switch
• Indicator Lights (Power 'ON' | Keep Warm | Heating)
• High efficiency sealed compressor cooling system with adjustable cold water thermostat, 37-50°F
• Completely sealed stainless steel cold reservoir and hot tank
• Easy to clean, large capacity, room temperature reservoir
• Safety lock for hot water faucet
• The built-in filtration system is front door accessible for easy filter replacement
• A separate water shutoff valve for easy filter service
• Automatic tank full control

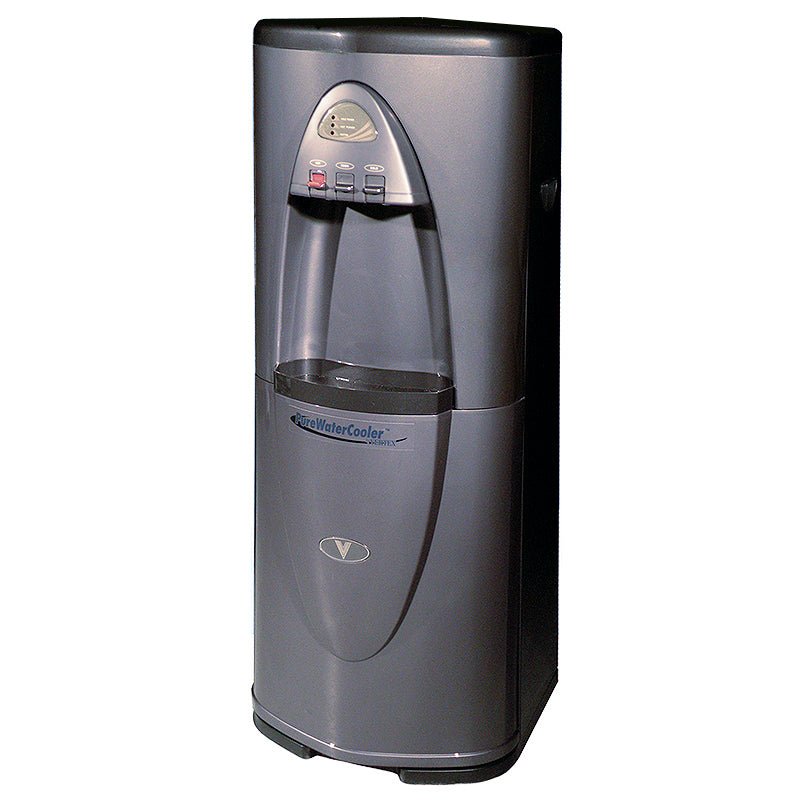

• Cabinet available in White or Executive Gray
• Connection hardware included
• Meets Energy Star Requirements!

Advanced Features of the Vertex PWC-3500 Include...

• Larger hot and cold reservoirs - 1-gallon cold water tank | 0.8-gallon hot water tank
• Taller dispensing area height and larger 10-inch opening for easy refills
• Flat top supports coffee makers or other beverage supplies
• Dual safety Shut-off; solenoid shut-off valve with a redundant mechanical float valve

	The Vertex PWC-3500 3-Temperature High Capacity Bottleless Water Cooler is ADA Compliant
	The Vertex PWC-3500 3-Temperature High Capacity Bottleless Water Cooler Conforms to UL Standard 399 and is ETL Listed.
	All water-bearing materials in the Vertex PWC-3500 3-Temperature High Capacity Bottleless Water Cooler comply with the Safe Water Drinking Act amendment of 1996 and are in compliance with NSF standard 61, section 9.

Specifications of the Vertex PWC-3500 3-Temperature High Capacity Bottleless Filtered Water Cooler
