PreVent Cooling Tower Filter System

Pulley Mount for Large Cooling Towers

$1,665.94

Usually ships in 5 days; up to 10 for some models

Free shipping on orders over $100

Free shipping on orders over $100

Bulk order? Request a quote

30-Day Money-Back Promise

About this product

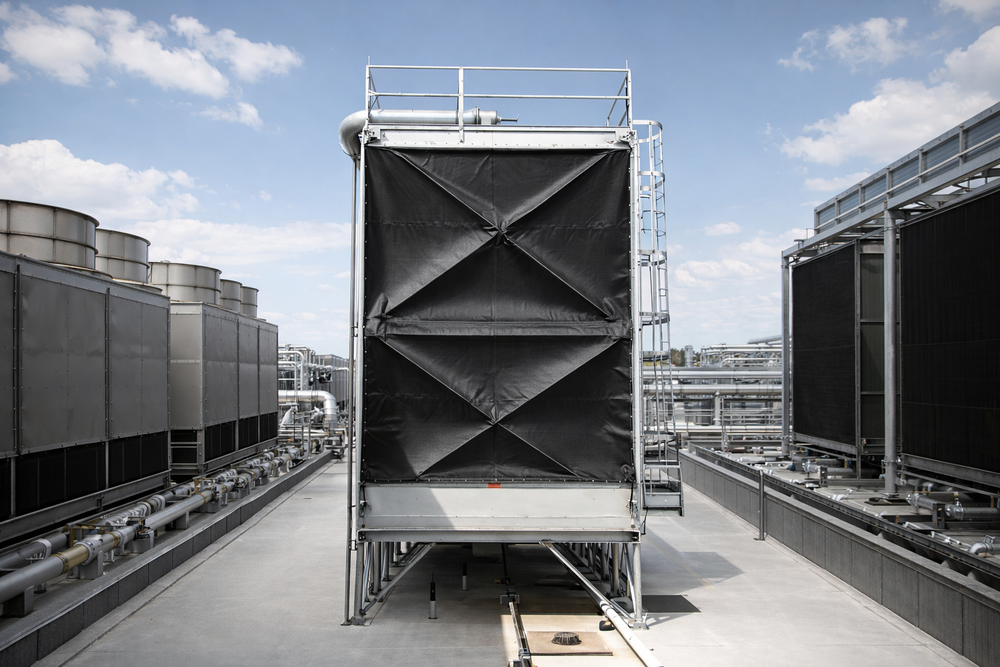

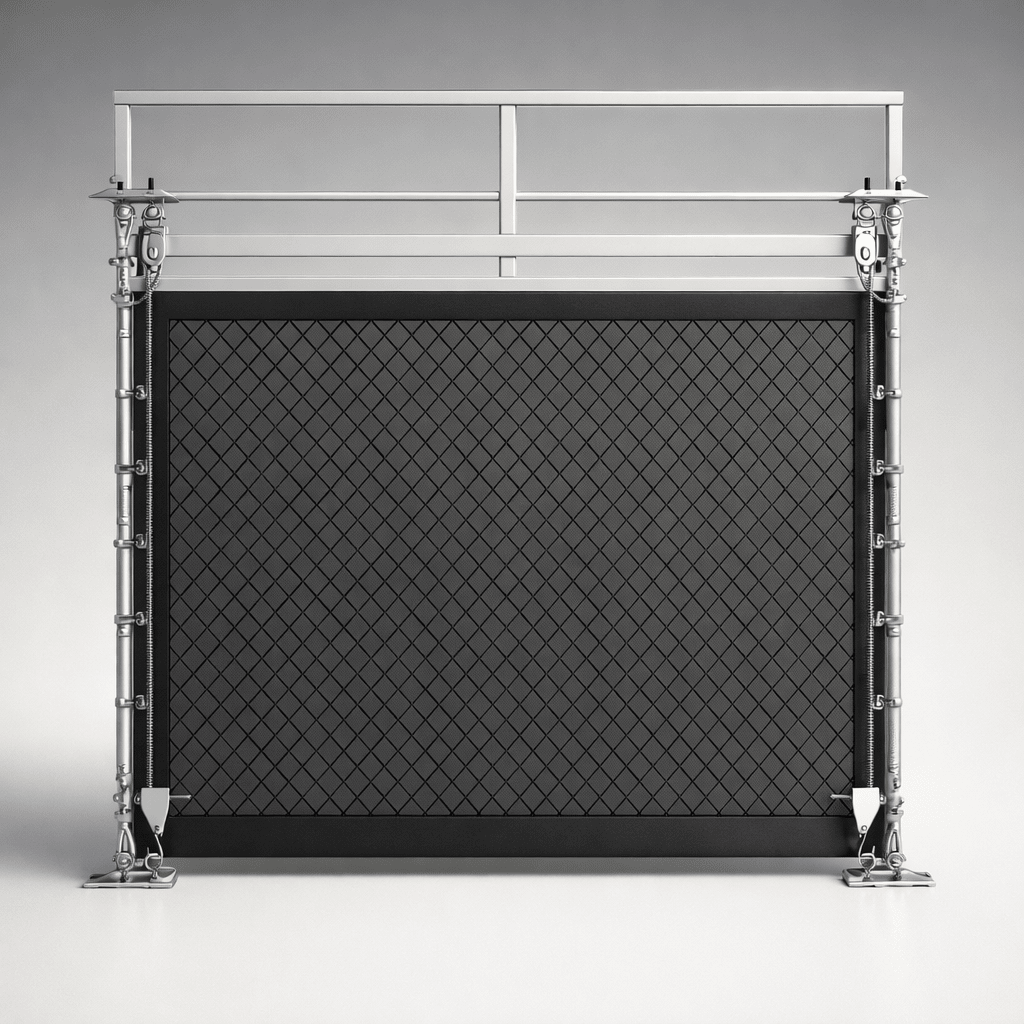

The PreVent Cooling Tower Filter System (CTFS) is a pulley-mounted filtration system designed to make maintaining extra-large cooling tower air intake filters simple and safe. Instead of climbing towers or removing large screens, the pulley system allows operators to lower the PreVent BHA filter screen for cleaning and raise it back into place in minutes.

By capturing airborne debris before it enters the cooling tower, the system helps reduce maintenance, protect tower fill media, and keep cooling equipment operating efficiently.

This mounting kit is engineered specifically for large installations where traditional mounting methods are difficult or unsafe, making it ideal for industrial and commercial facilities that rely on continuous cooling tower operation.

Best for

The PreVent CTFS system is designed for facilities that operate large cooling towers or oversized air intake filtration systems, including:

  • Data centers with continuous cooling requirements
  • Manufacturing plants and processing facilities
  • Hospitals and healthcare campuses
  • Universities and large commercial buildings
  • Power generation facilities
  • Industrial HVAC systems with large air intakes

It is especially valuable in environments where cottonwood, insects, dust, or debris frequently clog cooling tower components.

Specifications
Model

PREVENT-CTFS
Mount Type

Pulley-mounted filter lifting system
Compatible Filters

PreVent Model BHA Air Intake Filter Screens
Application

Large cooling tower air intakes
Maintenance Method

Lower filter screen for cleaning, raise back into place
Cleaning Method

Brush, vacuum, or rinse filter screen
Installation Type

External mount pulley system
Material Compatibility

Designed for outdoor industrial HVAC environments
Required Component

1" galvanized metal pipe (cut to size)

Certifications

UL Flammability (Filter Media – PreVent System): UL900 Classified [Needs Verification for CTFS mount]

ASHRAE Application Context: Supports HVAC maintenance and filtration best practices

CARB Compliance: Not applicable (no ozone-producing technology)

What's in the box

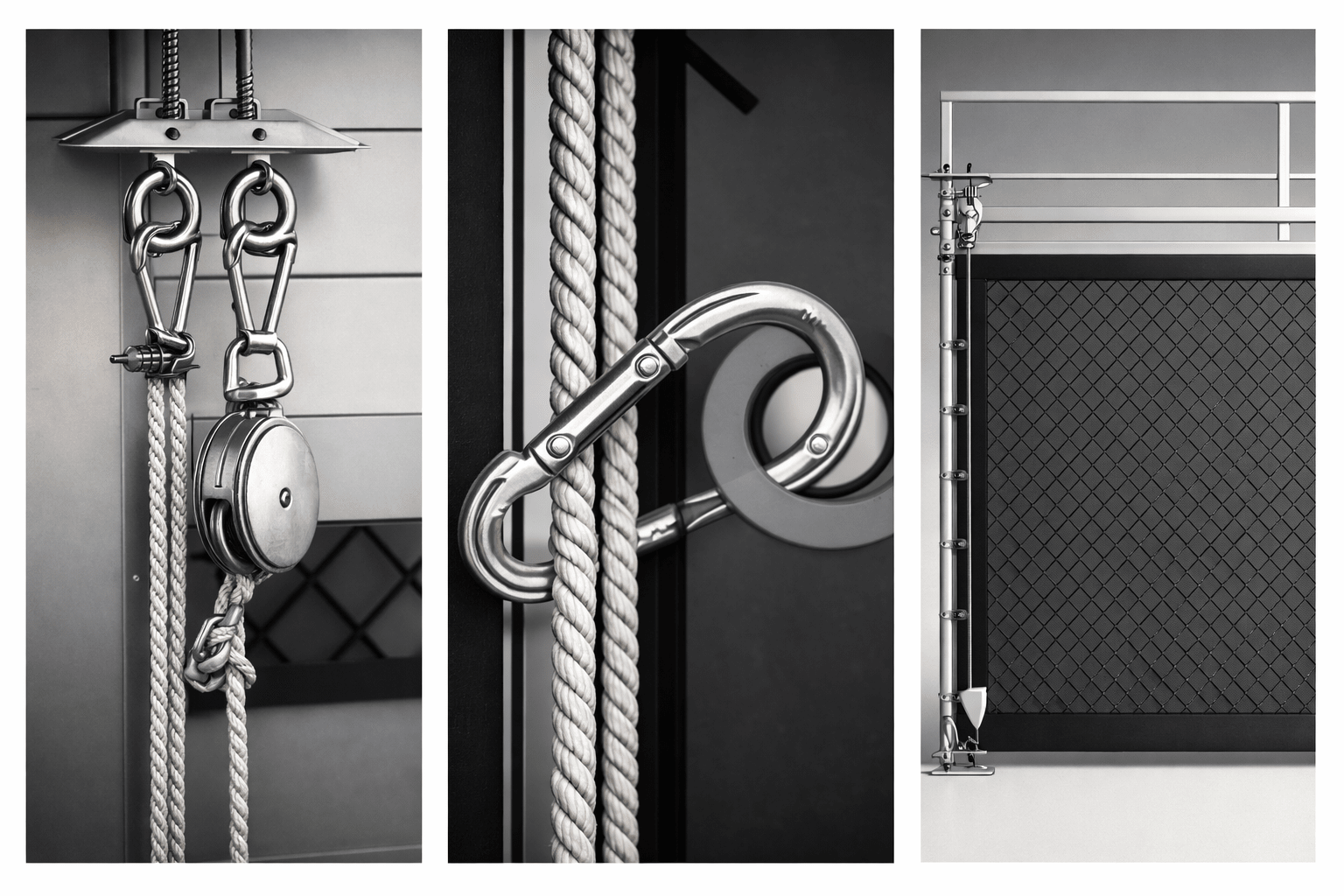

The CTFS pulley mount kit includes the components required to install and operate the system:

  • (2) 2" single eye pulleys with eye bolts
  • (6) clamp sets for wire rope (top and bottom)
  • (30) 1½" carabiner clips for wire rope side guides
  • (2) 2" carabiner clips for eyebolt and pulley connection
  • (2) rope ratchets with hooks
  • (8) eye bolts
  • (16) hex nuts
  • (8) ¼" × 1" sheet metal screws
  • (4) predrilled corner brackets
  • (2) 3/8" × 50 ft poly braid ropes
  • (1) 1/8" × 12 ft wire rope
  • (2) 1/8" × 20 ft wire ropes

Required but not included

  • 1" galvanized metal pipe (cut to required size)

Installation tips
  • Measure the cooling tower intake opening before selecting the compatible PreVent BHA filter size.
  • Install the corner brackets and pulley hardware securely on the tower structure to support the lifting system.
  • Ensure the wire rope guides keep the filter screen aligned during raising and lowering.
  • Use the rope ratchet system to easily control the lifting and lowering process.
  • Leave sufficient clearance so the filter screen can be lowered safely for cleaning without obstruction.
  • Clean the filter screen regularly by brushing debris off or rinsing with water while lowered.

For full instructions, follow the official installation guide.

Frequently asked questions

What does the PreVent Cooling Tower Filter System do?

It provides a pulley-mounted system that allows large PreVent BHA air intake filter screens to be lowered and raised for easy maintenance on cooling towers.

Why use filtration on cooling tower air intakes?

Cooling towers draw in large volumes of outdoor air that often contain cottonwood, insects, leaves, and dust, which can clog fill media, strainers, and spray nozzles if not filtered.

How do you clean the filter with the CTFS system?

Simply lower the filter screen using the pulley system, brush or rinse the debris off, and lift the screen back into place.

Does this system include the filter screen?

No. The CTFS kit is a mounting and maintenance system designed for use with PreVent Model BHA filter screens.

How often should the screen be cleaned?

Cleaning frequency depends on environmental conditions. Areas with cottonwood, insects, or high airborne debris may require more frequent cleaning.

Will this system affect airflow to the cooling tower?

The PreVent screen system is designed to maintain low airflow resistance while preventing debris entry, minimizing impact on system performance.
