Powerful odor control after the bag filter
- 7 lb activated carbon knocks down smoke smells and VOCs.
- Stage‑3 after‑filter for CleanLeaf 1100 Series units.
- Simple upkeep: replace about once per year (use dependent).
Best for: CleanLeaf CL‑1100‑C7 (1 filter) and CL‑1100‑C21 (3 filters) used in cigar lounges, grow rooms, vape shops, and workshops needing strong odor reduction.
In the box & installation
- Included: (1) 7‑lb carbon post filter for CleanLeaf 1100 Series.
-
Install overview: Power off → open service door → slide out used carbon → insert new module (match airflow/orientation) → close door → power on and confirm odor reduction. (Follow your CleanLeaf manual.)

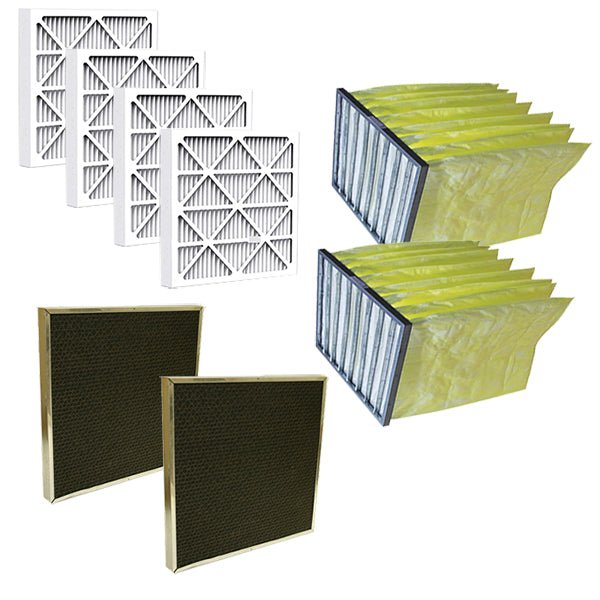

One year annual kit includes the following;
-
Four (4) - Pleated Prefilters
This medium-efficiency pleated pre-filter catches any large particulate that may exist in your environment. The primary purpose of a pre-filter is to increase the lifetime of the subsequent filters. A MERV 10 efficiency provides the best balance between restriction and capture rate.
Change quarterly -
Two (2) - Bag Filters
A whopping 28 inches of bag filtration captures dust and other fine particles. The major elements affecting your grow environment include mold, powdery mildew, and pollen. All of these elements exceed a micron size of 2. The bag filter captures 95% of particles that are 1 micron in size, but it is 100% efficient at 2 microns or larger. All molds, powdery mildew, and pollen will be captured by this filter.
Change semi-annually -
Two (2) - Carbon Afterfilters
Carbon has been consistently proven to be the only safe method for removing odors from the air. Each of the CleanLeaf units can be equipped with up to 30 lbs of carbon. When applied in series, this generates an airflow pattern that circulates your air through hundreds of pounds of carbon, removing virtually all odors and VOCs.
Change semi-annually
Filter configurations and change-out times are based on standard recommendations.
For use in the following CleanLeaf Air Filtration Systems;
FAQs
How many do I need?
CL‑1100‑C7 uses one carbon module. CL‑1100‑C21 uses three (total 21 lb carbon).
When should I replace it?
Most sites replace about every 12 months; heavy smoke or 24/7 use may require earlier changeouts. Watch odor return and pressure readings (if equipped).
Does this remove smoke particles too?
Carbon targets gases/odors. Smoke particles are mainly captured by the bag filter (Stage‑2) and any downstream HEPA stage (CL‑1100‑H). Pair fresh carbon with a current bag/HEPA.
