- Product Overview
The SED-1500 Ducted High Efficiency Air Filter System is Designed for Discreet and Concealed Clean Air
1,250 CFM (2-speed) for areas or rooms up to 1,200 sq. ft. Includes installation hardware PLUS all filters needed for the first year!

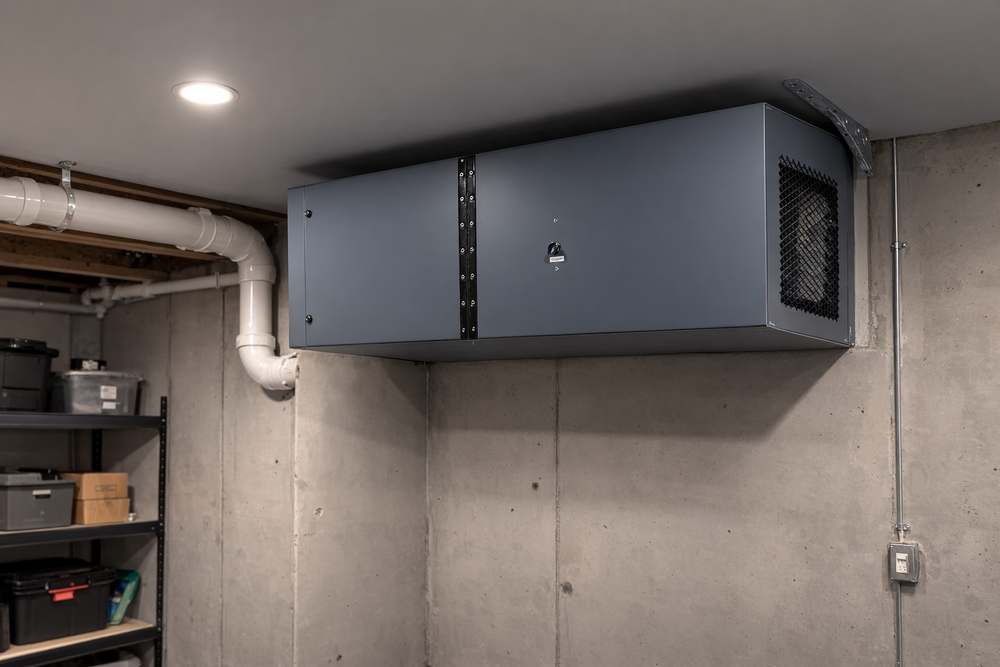

Designed for unobtrusive, ducted installation, the SED-1500 serves up to 1,200 square feet with a single unit. The SED Air Cleaner is suitable for homes, offices, or commercial establishments. The SED-1500 is installed independent of existing HVAC ducting.
Installation options for the SED-1500 include;
- Above a solid ceiling or suspended ceiling
- In a basement, attic, or crawl space
- In a utility room, furnace room, closet, etc.
Inflow and outflow air circulation can be customized to your specifications. Consult your HVAC contractor for installation and required ducting (not included). Its efficient multistage High Efficiency/Carbon filtering assures smoke, odor, and dust-free indoor air year-round. All 3 filters on the SED1500 air cleaner are easily accessible. 1 unit is recommended for every 8,000 cubic feet.
3 Filter System Provides Excellent Clean Air Results
The SED-1500 Ducted High Efficiency Air Cleaning System uses a powerful blower to draw the air from smoke-filled areas. As the air is drawn through the high-efficiency filter media, 95% of the tobacco smoke particles are removed on each pass. The clean air that is constantly discharged into the area is refreshing and remarkably free of tobacco smoke and other contaminants.
Stage 1 - Pre-Filter
The pre-filter is important because not only does it remove the larger particles, but it also helps prolong the life of the High Efficiency filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system; therefore promoting better indoor air quality.
Twelve Polyester pre-filters are supplied with each system. Pre-filters cannot be washed and must be changed monthly.
Stage 2 - Activated Carbon Filter
Activated Carbon removes odors by absorbing odors, gases & VOCs into the filter. Think of carbon as an 'odor sponge'. It can hold many times its weight in odor molecules. However, once carbon becomes saturated it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
Six Activated Carbon Filters pads are supplied with each system. Carbon Filters cannot be washed and should be changed every 2 months.
Stage 3 - High Efficiency Filter
The High Efficiency filter removes the very small particles, such as smoke (tobacco, burning wood, oil, rosin), dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses just to name a few. The High Efficiency filter is extremely important for superior air filtration and when used and maintained properly it will dramatically improve your indoor air quality. We cannot stress enough the importance of the High Efficiency filter to our system and the fact that the High Efficiency filter must be maintained in order to achieve maximum results.
One 12-inch High Efficiency Filter is supplied with each SED-1500 air cleaner. The High Efficiency filter cannot be washed and should be changed annually.
OPTIONAL - Factory Installed Remote Control
Easily control the settings on your SED-1500 Concealed Smoke Eater with a handy Remote Control Key Fob. It's an excellent choice for concealed systems. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) The receiver / Transmitter range is approximately 100 feet under normal operating conditions.
Features and Benefits of the SED-1500 Whole House High Efficiency Filter System
- Powerful 2-Speed Blower – Effectively pulls air from polluted areas.
- High-Efficiency Filter Media – Over 95% of the airborne particles are removed on each pass.
- Refreshingly Clean Air – Virtually all of the smoke, pollen, dust, and other particles are removed from the air that passes through the SED-1500, including microscopic airborne particles.
- Reduced Discomfort – Discharged air is cleaned of the many pollutants that can cause headaches, eye irritation, discomfort, and stuffiness.
- Reduced Odors – Offensive odors including smoke residue that absorb into clothing, furniture, and carpeting are reduced.
- Reduced Allergies & Asthma – Lowering the pollen, spores, and fungi count helps to reduce allergies and asthma that may be caused by these contaminants.
SED-1500 Ducted High Efficiency Air Cleaner Specifications
|Up to 1,200 Sq. Ft.
|High - 1250 CFM
|36" (L) x 24-3/4" (W) x 17" (H)
|18 gauge gray steel cabinet
|120V** | 6.2 Amps | 1/3 Hp Motor
|Three Filter System
|Includes 1 Year Supply of Filters;
(1) 12-inch 95% High Efficiency Filter
(6) 1/2-inch Activated Carbon Filters
(12) 1/2-inch Pre-Filters
|1 Year Manufacturer's Warranty
|Fan motor and all electrical components are UL Listed and CSA Certified
|This unit has not been tested for compliance with California Air Resource Board requirements and cannot be shipped to California.
|** The SED-1500 concealed air cleaner is designed to be wired to a 120 VAC power source. Wiring connections are located in the junction box on top of each unit. All wiring shall meet local codes.
|NOTE: The SED series is designed for contractor-installed ducted use. At a minimum, there should be at least one supply and one return per unit. Contact your local HVAC Contractor for installation and required ducting (not included).
|NOTE: The SED-1500 is equipped with 4 eye bolts installed on each system. Also included are 4 "S" hooks and 20' industrial hanging wire.
|This item ships by freight truck. Please refer to our shipping policy by clicking here.
