Product Overview

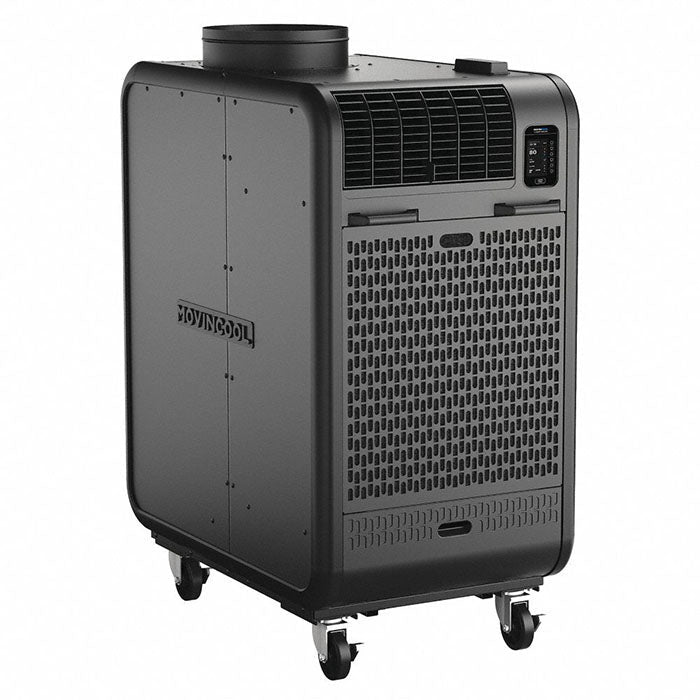

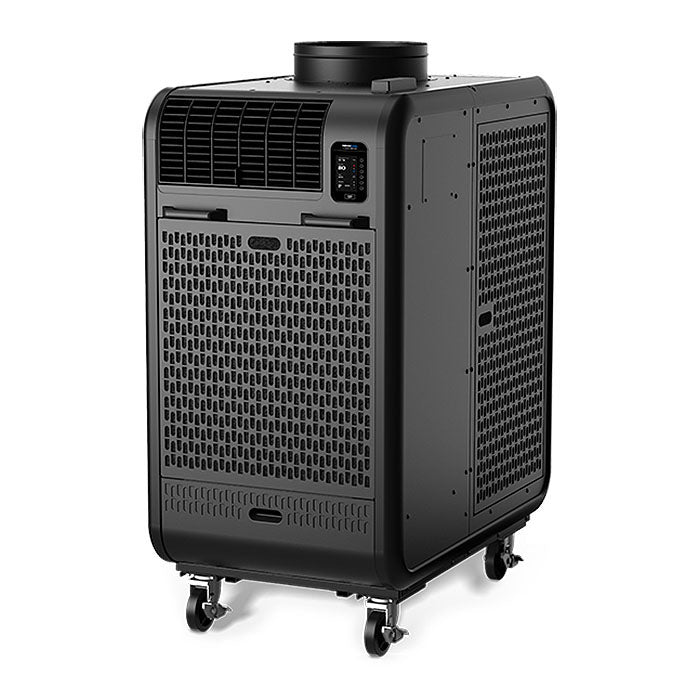

The MovinCool Climate Pro K63 High Capacity Spot Cooler is a 460V Portable Air Conditioner for Large Scale Office Applications
Don't put your sensitive data and expensive equipment at risk! Large server rooms and offices with heat-generating electronics need reliable spot cooling. MovinCool's Climate Pro K63 portable spot cooler provides instantaneous computer cooling without costly installation or expensive operation. At 60,000 BTU/hr, the Climate Pro K63 is the ultimate portable A/C for large-scale office applications.
The MovinCool Climate Pro K63 is perfect for Server Rooms, Healthcare Facilities, Libraries, Museums, Data Centers, Schools, Universities, and so much more!
Designed as an ideal computer room air conditioner, the Climate Pro K63 protects heat-generating equipment from expensive meltdowns that can interrupt daily operations and hurt your bottom line. The Climate Pro K63 also keeps employees cool and protected. This helps to improve office morale and maintain productivity. Best of all, the self-contained, portable MovinCool Climate Pro K63 is ready to cool from the get-go: just roll it in, plug it in and turn it on.
Air-cooled portable air conditioners are most often the system of choice for end-users and industry professionals looking for effective spot cooling systems. The fact that air-cooled portable air conditioning units can be installed almost anywhere - usually in minutes - explains their popularity as server room air conditioners, data center air conditioners, and cooling systems for a wide range of other applications. They can be used as a Temporary Air Conditioning System as needed.
MovinCool Climate Pro K63 Portable Computer Room Air Conditioner Features
- Color LCD control panel simplifies operation, clearing of codes, and is easier to read.
- Matte black cabinet brings stylish utility to the workplace.
- Added bumpers enable safer handling and movement around your facility.
- Larger casters make rolling and navigation easier.
- A Built-in cable compartment keeps the power cord securely out of the way.
- Hinged tank cover. Keeps drain tank secure.
- Condensation pump included. Pumps water to remote drain for uninterrupted operation.
- Ergonomic drain tank design. Makes for easier handling and emptying.
- Built-in flanges. Standard on all models — no add-ons needed.
- Powerful performance. Runs on 460 V 60 Hz with 20 amp circuit and consumes 6.6 kW.
- Dual condensers provide cooling support effective in conditions from 65° to 105°F.
- Moderately quiet. At highest speed with condenser duct, sound level 69 dB(A).
The powerful Climate Pro K63 portable computer room air conditioner can save you money while protecting your company's investment in equipment, employees, and customers. Self-contained and portable, the MovinCool Climate Pro K63 requires no costly installation - simply roll it in, plug it in and turn it on.
MovinCool Climate Pro K63 Powerful and Portable Spot Cooler Technical Specifications
| Cooling Capacity | 60,000 BTU/hr (95°F @ 60% RH) |
| Electronic Features | Programmable Control Panel Electronic Thermostat Control |
| Electrical | 460V, 3 Phase | 6.6 kW | 12.2 Amps Recommended Fuse Size - 20 Amps Min/Max Voltage - 440 / 480 V |
| Power Cord | 12 AWG (3-core) - 6 feet |
| NEMA Plug Configuration | L16-20 - See Chart Here |
| Fan Motor Output (kW) | Evaporator - 0.56 Condenser - 0.30 x 2 condensers |
| Evaporator | Fan Type - Centrifugal Max Airflow (CFM) - 1770 (H) / 1710 (M) / 1650 CFM (L) Max External Static Pressure - 0.9 IWG |
| Condenser | Fan Type - Centrifugal Max Airflow (CFM) - 2400 CFM Max External Static Pressure - 0.85 IWG |
| Compressor | Hermetic Rotary - 3.45 kW Output |
| Refrigerant | R-410A |
| Dimensions | 31" (W) x 55" (D) x 64" (H) |
| Weight | Net - 659 lbs. | Shipping - 743 lbs. |
| Condensate Tank Capacity | Auto Pump Included |
| Operating Temperatures | 65°F (min) - 105°F (max) @ 50% RH |
| Max Duct Length | Cold Duct Hose - 40 ft. Hot Duct Hose - 100 ft. |
| Sound Level |
With Condenser - 69 (H) | 68 (M) | 67 (L) Without Condenser - 71 (H) | 70 (M) | 69 (L) |
| MovinCool Climate Pro K63 Owner's Manual |  |
| MovinCool Climate Pro K63 Product Spec Sheet |  |
| What's In The Box? |
|
| Warranty | MovinCool's Office Pro, Classic, Classic Plus, and Climate Pro models come standard with 1-year parts and labor coverage. Registered products are eligible to receive full 3-year parts and labor coverage including the compressor. |
| NOTE: All specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. All models are 50 Hertz (Hz) compatible with a slight performance decrease from the specifications listed above. |
|
MovinCool Climate Pro K63 Installation Accessories
MovinCool Climate Pro K-63 Installation and Accessory List
All accessories are sold separately.
All accessories are sold individually unless otherwise noted.
Exhaust duct required in most cases.
Two-Nozzle Installation
1. Two Hole Adapter/Flange Base Plate – 481769-0300
2-Piece Metal Base Plate has two 8-inch diameter holes to convert airflow from louvers to self-supported or flexible air ducts.
2. (8-inch) Supply Air Flange Kit - 481170-0470
8-inch diameter flange kit includes wire clamp and mounting screws. Used to attach the self-supported cold air duct to the two-hole base plate.
(Use with 8-inch diameter self-supported duct or 8-inch diameter flex-duct.)
3. Self-Supported Cold Air Duct – LA481744-0430
8-inch diameter self-supported duct extends from 6.5-ft to 10-ft in length. Provides specific, directional airflow.
4. Flexible Duct – LAY45810-0030
8-inch diameter x 25-ft Flexible Air Duct Includes Clamp. This flexible duct can be used to provide cool air to areas up to 25 feet away.
Four-Nozzle Installation
5. Four Hole Adapter/Flange Base Plate – 481769-0290
Metal Base Plate has four 6-inch diameter holes to convert airflow from louvers to quick-connect, self-supported, or flexible air ducts.
6. Quick-Connect Flange Kit – 481170-0490
6-inch diameter quick-connect flange kit includes wire clamp and mounting screws. Used to attach the quick-connect nozzles to the four-hole base plate.
(Use with #7 quick-connect nozzles)
7. Quick-Connect Nozzle – 484209-0490
6-inch diameter Quick-Connect Nozzle extends up to 2-ft in length. Includes trim ring.
(Use with #6 quick-connect adapter flange kit.)
8. (6-inch) Supply Air Flange Kit – 481170-0460
6-inch diameter flange kit includes wire clamp and mounting screws. Used to attach the self-supported cold air duct to the two-hole base plate.
(Use with #9 6-inch diameter self-supported duct.)
9. Self-Supported Cold Air Duct - LA481744-0400
6-inch diameter self-supported duct extends from 6.5-ft to 10-ft in length. Provides specific, directional airflow.
10. Trim-Ring – 481769-0210
6-inch diameter Trim Ring mounts on the end of the self-supported duct.
(Not required, but the trim ring prevents sharp edges and/or unraveling and completes the look.)
11. Indoor Air (Heat Exchanger) Plenum – 484350-1210
The plenum attaches to the front of the unit for return air to the indoor heat exchanger.
12. Outdoor Air (Heat Exchanger) Plenum - 484350-1240
For Negative Pressure Rooms - When balanced airflow is required, attached the outdoor heat exchanger plenum with a 16-inch diameter duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative pressure. It attaches to the condenser intake side of the unit and is hinged for filter cleaning.
(Use with 16-inch Flexible Duct #13.)
13. Flexible Warm Air Duct / Negative Pressure Condenser Intake Air Duct – LAY45820-0010
16-inch diameter Flexible Exhaust Duct extends up to 25-ft in length. Includes clamp.
(Used as a warm air exhaust duct or intake duct with negative pressure air plenum.)
14. Ceiling Tile Exhaust Kit - HDK-16
MovinCool makes it easy to remove exhaust air. Simply replace your existing ceiling tile with the HDK-16 Ceiling Tile Exhaust Kit. Place the Exhaust Flex Duct on top of the MovinCool unit and insert it into the specially cut ceiling tile.
Includes 1) 2-ft x 2-ft Ceiling Tile with 7-ft of 16-inch diameter Flexible Exhaust Duct.
15. Condensate Pump Kit 230V - INCLUDED
No need to bother with manually emptying the tanks. The condensate pump will remove the water automatically to any remote drain. Maximum lift – 17-ft. Includes 3/8-inch diameter x 20-ft length drainage hose + installation hardware.
16. Storage Cover - LA484420-0860
When your MovinCool Portable Spot Cooler is not in use, protect it with this durable black nylon oxford unit storage cover.
