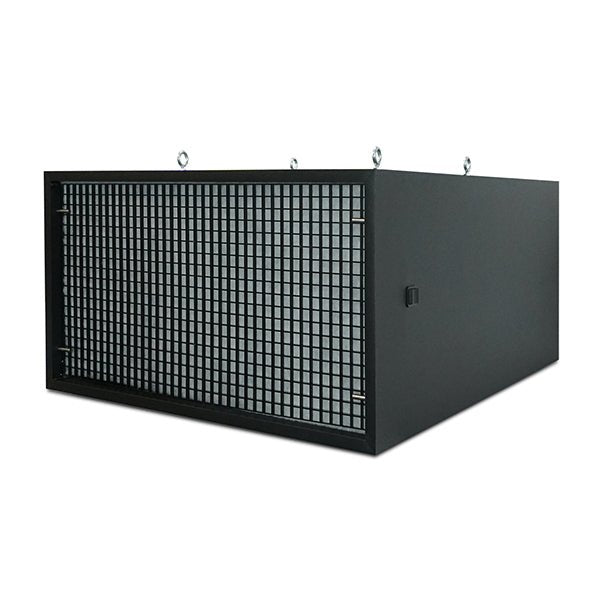

Muscle Machine | Surface Mount Dust and Smoke Air Cleaner - 400-450 CFM

Our Muscle Machine Surface Mount Dust & Smoke Air Cleaner is super-effective at removing dust, tobacco smoke, and offensive odors from the air.

400-450 CFM - Each Muscle Machine Smoke Removal System covers approximately 2,000 cubic feet. Includes installation hardware PLUS all filters needed for the first year!

It is recommended that the Muscle Machine surface mount dust and smoke air cleaner be installed in areas that have 7-1/2 to 9-foot ceiling heights. The Muscle Machine dust & smoke eater air cleaner is equipped with 4 eye bolts installed 16-inch on center on top of each system for easy installation. The installation hardware also includes 4 'S' hooks, 4 eye lags, and industrial hanging wire. 1 Muscle Machine is recommended for every 2,000 cubic feet.

How does the Muscle Machine Surface Mount Dust and Smoke Air Cleaner work? 3 Filter System Provides Excellent Clean Air Results

The Muscle Machine surface mount dust & smoke air cleaner uses a powerful blower to draw the air from smoke-filled areas. As the air is drawn through the high-efficiency filter media, 95% of the tobacco smoke particles are removed on each pass. The clean air that is constantly discharged into the area is refreshing and remarkably free of tobacco smoke and other contaminants.

Stage 1 - Pre-Filter
The pre-filter is important because not only does it remove the larger particles, it also helps prolong the life of the High Efficiency filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system; therefore promoting better indoor air quality.
(12) Polyester pre-filters are supplied with each system. Pre-filters cannot be washed and must be changed monthly.

Stage 2 - Activated Carbon Filter
Activated Carbon removes odors by absorbing odors, gases & VOCs into the filter. Think of carbon as an 'odor sponge'. It can hold many times its weight in odor molecules. However, once carbon becomes saturated it loses its efficiency. Thus, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
(6) Activated Carbon Filter pads are supplied with each system. Carbon Filters cannot be washed and should be changed every 2 months.

Stage 3 - High Efficiency Filter
The High Efficiency filter removes the very small particles, such as smoke (tobacco, burning wood, oil, rosin), dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses just to name a few. The High Efficiency filter is extremely important for superior air filtration and when used and maintained properly it will dramatically improve your indoor air quality. We cannot stress enough the importance of the High Efficiency filter to our system and the fact the High Efficiency filter must be maintained in order to achieve the maximum results.
(1) 12-inch High Efficiency Filter is supplied with each Muscle Machine air cleaner. The High Efficiency filter cannot be washed and should be changed annually.

Muscle Machine Dust and Smoke Air Cleaner Specifications

Capacity	Up to 2,000 cubic feet
Two Speed	High - 450 CFM | Low - 400 CFM
Sound Level @ 5'	High - 60 dB | Low - 58 dB
Installation Options	Ceiling Mount or Wall Mount
The Muscle Machine is equipped with (4) eyebolts installed 16-inch on center on top of each unit for easy installation. Installation hardware also includes (4) 'S' hooks, (4) eye lags and 20' of industrial hanging wire.
Dimensions	24" (L) x 23" (W) x 12.6" (H)

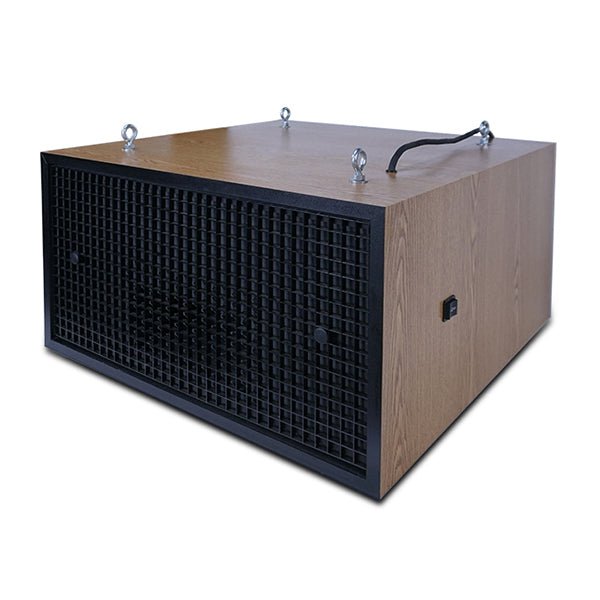

Cabinet Options	Black | White | Woodgrain (Oak) | Cherry Finish
Shipping Weight	60 lbs.
Electrical	1.1 amps | 120V
Power Cord	8-foot long, 3-prong grounded plug - Plugin or Hardwire
Three Filter System	Includes 1 Year Supply of Filters; (1) - 12" High Efficiency Filter (6) - 1/2" Activated Carbon Filters (12) - 1/2" Pre-Filters
Warranty	1 Year Manufacturer's Warranty
Certifications	The fan motor and all electrical components are UL Listed and CSA Certified.
Muscle Machine Owner's Manual
Muscle Machine Cut Sheet/Brochure
This unit has not been tested for compliance with California Air Resource Board requirements and cannot be shipped to California.
This item ships by LTL freight. Please refer to our shipping policy by clicking here.
NOTE: This unit is NOT a stock item. It's built to order up and can take up to several weeks to ship. Please consider this when scheduling your project.
