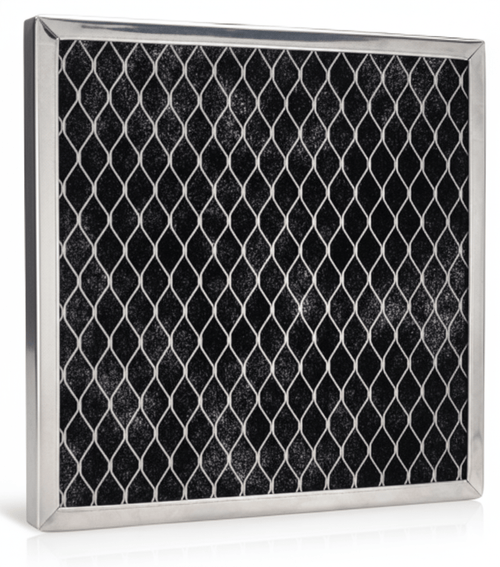

Model HFA Electrostatic Air Filter | Commercial and Industrial Washable Panel Filter
Model HFA is available in any custom size you require up to 1,000 square inches in a 1/4-inch, 1/2-inch, 1-inch, or 2-inch thick galvanized steel frame.
Complete the RFQ Below for Pricing Information.
For a Superior Level of Particle Removal Efficiency, Choose the Model HFA Electrostatic Air Filter
The Model HFA Electrostatic HVAC Air Filter is an excellent choice for hospitals, laboratories, computer rooms, food packaging plants, and pharmaceutical plants.
The Model HFA washable electrostatic air filter for commercial HVAC air handling systems contains multiple layers of custom woven electrostatic polypropylene media, plus non-woven polyester. The result is superior dust holding capabilities.
In addition, the 1-inch and 2-inch models feature the exclusive Accumulator Chamber. By using a unitized filter bank design, multiple layers of media assembled in a steel frame provide a distinct separation to create a triple-action filtration system. The pre-filter/after-filter assembly promotes free airflow while resisting face loading. Excess particles sweep through the pre-filter. Cross-currents within the chamber cause further agglomeration and settlement until the filter is rinsed clean. The outer frame contains strategically placed drain holes for thorough cleaning.
HFA Electrostatic Air Filter Features
- The standard frame is available in galvanized steel. Stainless steel or aluminum frames are also available for an upcharge.
- Combination electrostatic polypropylene and non-woven polyester media with wire reinforcement.
- Exclusive ACCUMULATOR CHAMBER® design for maximum performance.
- Drain holes positioned for easy cleaning
- No system modifications or electrical hook-ups are needed.
HFA Electrostatic Air Filter Specifications
|Average Arrestance Efficiency||89%|
|Available Sizes||Model HFA is available in any custom size you require up to 1,000 square inches in a 1/4-inch, 1/2-inch, 1-inch, or 2-inch thick galvanized steel frame.
Complete the RFQ for Pricing Information.
|Dust Holding Capacity||120 grams|
|Initial Airflow Resistance||0.20" w.g.|
|Classification||UL Classified as to Flammability Only|
|Material||Frame - Galvanized Steel (stainless steel or aluminum available upon request)
Filter - Combination electrostatic polypropylene and non-woven polyester media with wire reinforcement
