Product Overview

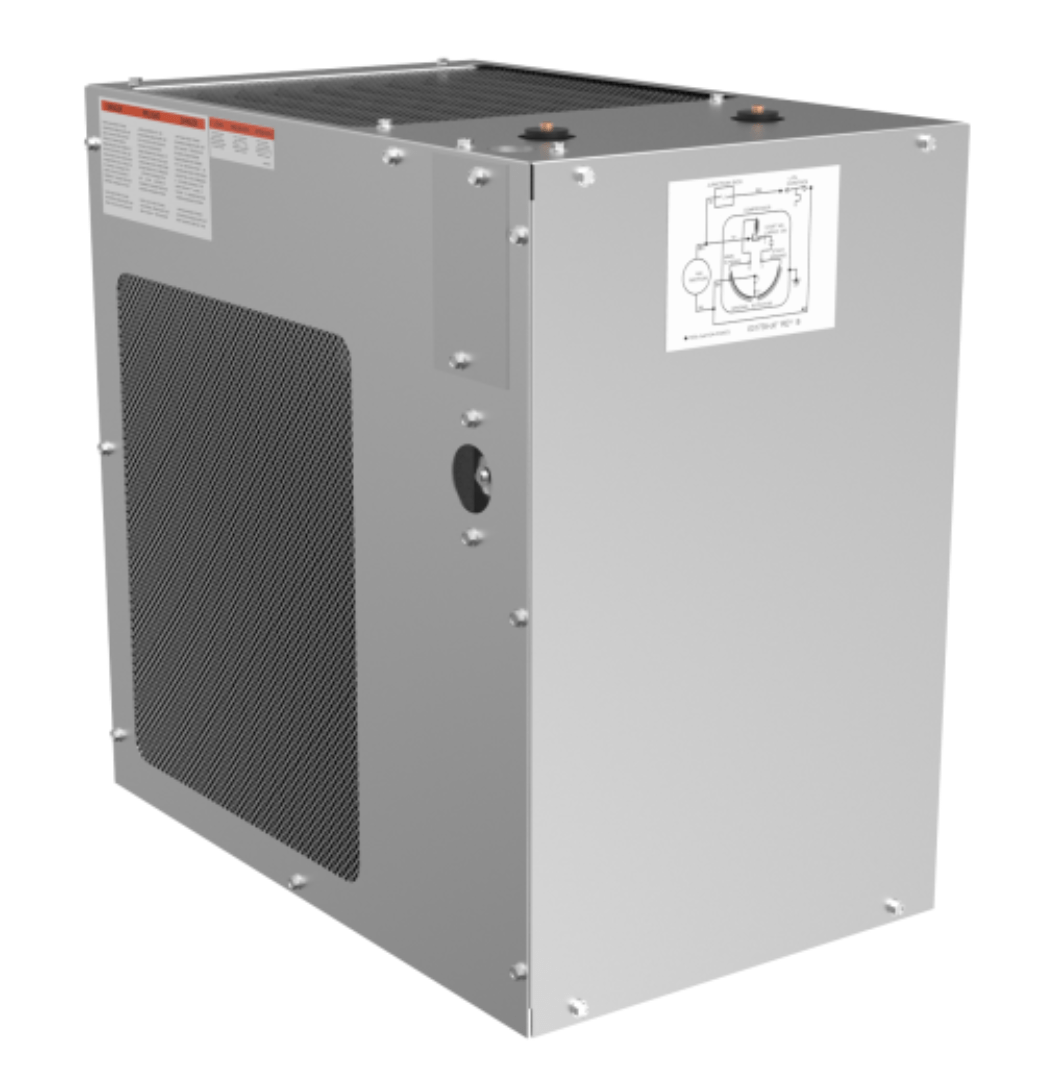

The R8-D300 Water Chiller from Oasis delivers 8 gallons per hour of chilled water at 50°F — ideal for office kitchens, classrooms, and small commercial settings. It’s compact, energy-efficient, and perfect for light-duty installations.
The Oasis R8-D300 Water Chiller is a compact, high-performance unit designed for delivering chilled water at 8 gallons per hour (GPH) capacity. Ideal for under-sink or remote applications in offices, schools, and commercial spaces.
It features a durable stainless-steel casing, energy-efficient 1/4 HP compressor, and simple 115V plug-in operation. This unit is not to be confused with the R12-D300, which offers higher capacity and a larger motor.
Compatible Model: MWEBF R8 delivers 8.0 gallons of chilled water per hour
Options (at additional cost)
- Wall mounting cradle and stainless steel grille (030101-001)
- Shelf support (026929)
Standard Features:
- Waterways are Lead-Free in materials & construction
- Made of heavy gauge galvanized steel
- Cooling tank and coil
- Refrigerant R-134a
- Limited 5-year warranty
- Not for use with RO water
Key Specifications:
| Feature | Details |
|---|---|
| Model | R8-D300, RWCD8-D300 |
| Voltage | 115VAC ±10% / 1PH / 60Hz |
| Cooling Capacity | 8 GPH |
| Compressor | 1/4 HP |
| Full Load Amps | 4.8 Amps |
| Refrigerant | R-134a, 6.8 oz |
| Dimensions (inches) | 16.5” H x 16.5” W x 10.75” D |
| Shipping Weight | 49 lbs |
Oasis Water Chiller Comparison
| Feature | R8-D300 | R12-D300 |
|---|---|---|
| Cooling Capacity | 8 GPH (Gallons per Hour) | 12 GPH |
| Compressor HP | 1/4 HP | 1/3 HP |
| Voltage | 115VAC ±10%, 1PH, 60Hz | 115VAC ±10%, 1PH, 60Hz |
| Full Load Amps | 4.8 Amps | 5.0 Amps |
| Refrigerant Type | R-134a | R-134a |
| Refrigerant Charge | 6.8 oz | 7.5 oz |
| Unit Dimensions | 16.5" H x 16.5" W x 10.75" D | 17.5" H x 17.5" W x 12.5" D |
| Shipping Weight | 49 lbs | 60 lbs |
| Model Numbers | R8-D300, RWCD8-D300 | R12-D300, RWCD12-D300 |
| Typical Use Case | Light-duty, lower water demand | Higher-demand, commercial usage |
| Recommended For | Small offices, classrooms | Cafeterias, large public facilities |
