EBAC WM80-D Dehumidifier

Compact Wall Mountable

Removes 62 Pints per Day

Owner's Manual

EBAC WM80-D Dehumidifier

Name: EBAC WM80-D Dehumidifier
Brand: Ebac
SKU: WM80-D
Price: 2925.0 USD
Availability: InStock

Compact Wall Mountable

Removes 62 Pints per Day

$2,925.00

Usually ships in 5 days; up to 10 for some models

Free Shipping

Bulk order? Request a quote

About this product

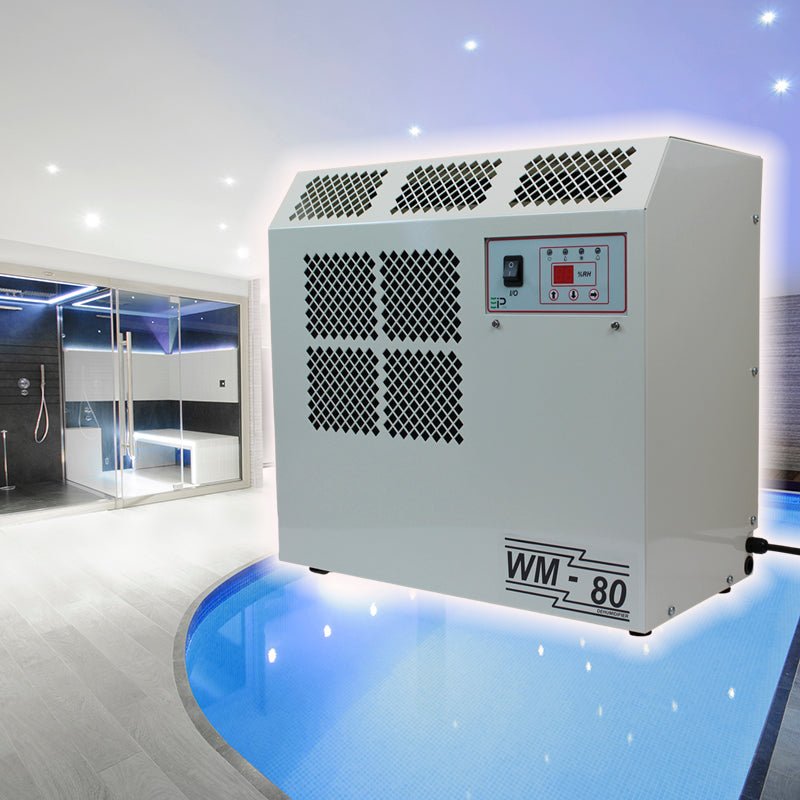

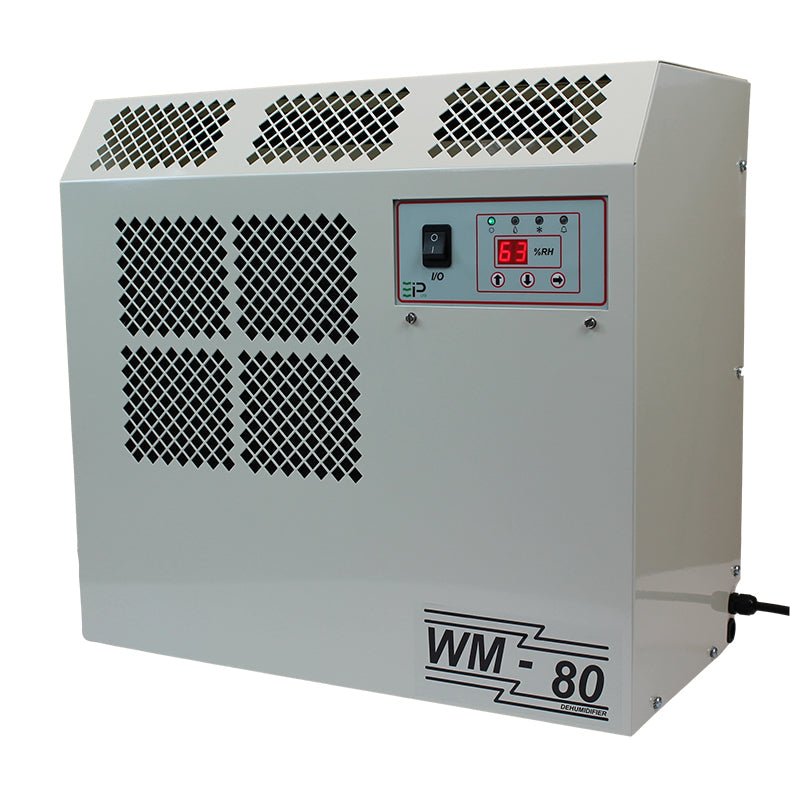

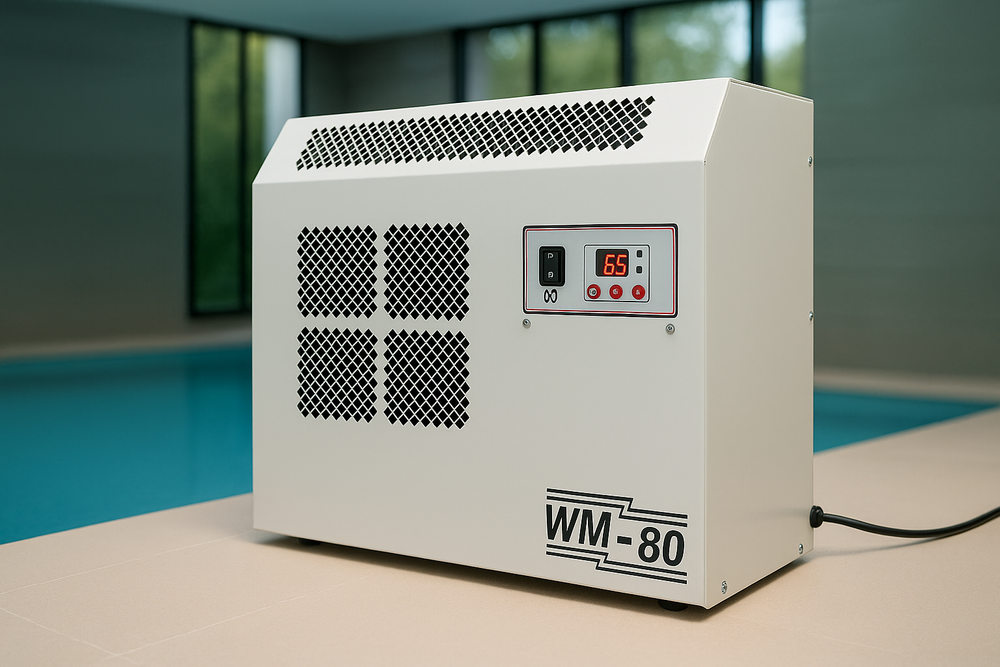

The Ebac WM80-D Dehumidifier is Compact, Quiet, and Can be Wall Mounted

The Ebac WM80-D compact wall-mountable dehumidifier is a practical solution for humidity control in a wide variety of applications. It can be used as a free-standing unit or can permanently wall-mounted. and is ideal for an indoor pool or spa area in homes or hotels/motels. Whatever your moisture removal requirements are, the Ebac WM80-D compact wall-mountable dehumidifier has proven to be a reliable moisture drying unit. In addition to its quiet operation and sturdy cabinet, the ability to operate effectively over a broad range and temperature conditions are part of what makes the WM80-D so attractive in a spa or hot tub application.

Its active hot gas defrost system, controlled by an electronic timer, guarantees positive de-icing, thereby optimizing operation at low temperatures. Because the WM80-D compact wall mounted dehumidifier is equipped with an internal humidistat, it automatically switches on and off to save energy and expense by maintaining the desired level of humidity with intermittent operation.

Ideal applications for the WM80-D Commercial Dehumidifier include Offices - Apartments - Bars - Salons - Music Stores - Shops - Restaurants - Basements - De-Flooding - Storage Areas - Swimming Pools - Laboratories - Kitchens - Pumping Stations - Hospitals - Hotel / Motel

Features of the Ebac WM-80D Compact Wall Mounted Dehumidifier

Cross-flow blower-style fan for efficient, quiet operation
High capacity, fully automatic, integral condensate pump
Status and Mode indicators
Removable, washable air filter
High-efficiency rotary compressor
Robust steel construction
Drainage facility from either end
Low-Temperature Operation - Down to 33º F
Long power cord with molded plug
Includes Wall Mounting Bracket
Digital Control Interface

How the Ebac WM-80D Compact Wall Mounted Dehumidifier Works

How the Ebac WM-80 Wall Mounted Dehumidifier Works

Moist air is drawn into the unit by a fan
The air passes over a cold surface
As the air is cooled, it's moisture condenses
The collected moisture drips into the container
The cooled air is re-heated by the heat recovery system
Air passes back into the room 2°C warmer and considerably dryer
Defrost system automatically de-ices the unit as necessary
The unit switches off automatically when the container is full
When the unit achieves the selected level of dryness, it switches off automatically

High levels of moisture and humidity in your environment can result in corrosion, mold growth and rotting. Staggering costs are incurred every year through damage to properties and inventory as a result of dampness. Even if your building seems dry during the day, at night when the temperature falls the humidity rises and the condensation process begins. The Ebac WM-150 Wall Mounted Dehumidifier is a small price to pay when combating any moisture or humidity issues.

Additional Specifications

Added Features	Integral condensate pump Adjustable humidistat Hot gas defrost system Drainage facility on either end Includes wall-bracket kit
Ebac WM-80D Dehumidifier Owner's Manual
Ebac WM-80D Dehumidifier Product Brochure

Best for

This unit is an excellent choice when you need reliable humidity control in spaces such as:

Offices, stores, restaurants, bars and salons.
Museums, galleries, storerooms, telecom/IT rooms, data closets.
Garages, basements, spas, motels/hotels where humidity can damage equipment or materials.
Facilities where floor space is limited and a wall-mounted solution is preferred.
Environments operating at low ambient temperatures (down to ~33 °F / ~1 °C) where frost/defrost is a concern.

Specifications

Dimensions	19.4" (H) x 22" (W) x 11.4" (D)
Weight	81.5 lbs.
Moisture Removal	62 pints per day (80°F, 60% RH) > 15 gallons per day @ saturation
Operating Temperature Range	33°F - 105°F
Effective Coverage Area	7,062 cubic feet
Refrigerant Type	R407c
Airflow \| Noise Level \| Compressor	360 CFM \| 58 d(B)A \| Rotary
Electrical	110V, 60Hz, 1 Phase \| 8 Amps (max) \| 900 Watts
Warranty	One-year unconditional warranty against any manufacturing defects in workmanship or material.

Certifications

Certifications / Compliance

Designed for commercial/industrial humidity control—no direct health claims.
Electrical safety and refrigerant standards
Manufacturer warranty: 1-Year full, 3-Year compressor/coils in some listings.

What's in the box

Ebac WM80-D Dehumidifier
Quick-release hose coupling
25' PVC drain hose
Product Manual

Wall Mount Installation Kit;1 x Mounting Bracket4 x Rawl plugs and screws4 x M6 Hex Head Bolts, flat and spring washers

Installation tips

Mounting Height & Clearance: Use the included wall-mount bracket. Ensure ~6-12″ clearance above and to sides for airflow and service access.
Electrical Supply: Connect to 110 V/1Ph/60Hz dedicated circuit; unit draws ~8 Amps. Ensure breaker/disconnect meets local codes.
Drainage: The built-in condensate pump allows drainage vertically. Connect the drain hose, ensure slope or lift head is within pump’s lift capability.
Ambient Conditions: For low-temperature spaces (near 33 °F/1 °C) ensure unit’s defrost cycle is operating. The “hot gas” defrost ensures performance in cooler rooms.
Maintenance Access: Filter access should remain clear; schedule regular filter cleaning to maintain performance.
Mounting Location: Avoid direct sun/heat sources; select a wall with structural support. If mounting in a humid or corrosive environment (salons/sea-air), ensure adequate clearance for service.
Start-up: After mounting and drainage connection, plug in and set the digital humidistat to target relative humidity (e.g., ~50%). Monitor first 24 h to verify functionality.

Noise Considerations: At ~58 dB, unit is relatively quiet but still audible—locate in mechanical room or above false-ceiling when used in quiet spaces.

Frequently asked questions

Can this unit be used in a spa or indoor pool area?
Yes. The WM80-D is designed for challenging humidity environments including spas and indoor pools.

Is wall mounting required or can it sit on the floor?
It can be wall-mounted (bracket included) or placed on floor using its rubber feet—so floor placement is possible if wall mounting is not practical.

What is the moisture removal capacity?
Up to about 62 pints per day (≈29 litres/day) under rated conditions.

What is the noise level? Is it okay for quiet environments?
The unit operates at ~58 dB(A), which is comparable to a normal conversation—suitable for many commercial areas, though you may want to evaluate in ultra-quiet zones.

Does it include an automatic drain pump?
Yes, an integral condensate pump is built-in, and many packages include a ~25-foot PVC drain hose for automatic drainage.

What temperature range can it operate in?
The unit is rated for low-temperature operation down to ~33 °F (~1 °C) and up to ~105 °F (~40 °C).

How often should the filter be cleaned or changed?
A washable/removable air filter is included—check monthly (or more frequently in dusty environments), clean as needed to maintain airflow and efficiency.

What about warranty and service?
Warranty details vary by distributor; one listing mentions a 1-year unconditional warranty plus a 3-year warranty on compressor/coils.

How do I choose mounting height and location?
Mount at a height that allows free airflow around the unit (e.g., 6–12″ above ceiling slab or wall obstructions), service access reachable, and drainage/drain-pump outlet unobstructed. Avoid direct sunlight or heat-sources.
