Product Overview

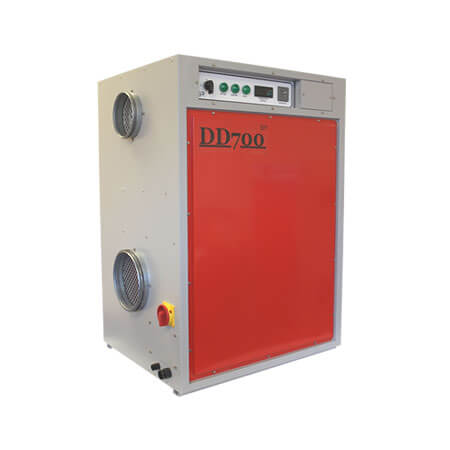

The DD-700 High Capacity Desiccant Dehumidifier Removes Over 231 Pints Per Day of Moisture in High Volume Areas

The Ebac DD-700 desiccant dehumidifier is manufactured from high-grade stainless steel, ensuring a rust-free product when used in the severest environment. The spigot connectors allow quick and easy installation and its high efficiency patented PPS Rotor ensures effective drying. The DD700 low-temperature desiccant dehumidifier incorporates an 82% active Silica Gel to ensure optimum performance over the units' wide operating range of temperatures and humidity levels. The desiccant rotor is washable and designed for high performance / long life. The DD700 is a rugged unit providing easy transportation by one person and is easily accommodated within space-restricted areas. The unit incorporates a Resistive Heater to ensure maximum drying is immediately reached and constantly maintained while the unit is running.

The DD700 performs exceptionally well when used in cooler climates (down to sub-zero temperatures), or when a low dew-point, deep drying or low humidity levels are required. In addition to the hours run meter, which shows the unit's running time, an ammeter is also used to display the electrical current used by the unit and to monitor the units drying effectiveness. Manual / Automatic control is a standard feature of theDD700 low-temperature desiccant dehumidifier. A remote humidistat can quickly and easily be connected for automatic operation and control.

Ideal applications for the DD700 Desiccant Dehumidifier include Offices - Shops - Restaurants - Warehouses - Basements - Factories - De-Flooding - Pharmaceutical - Defense Industry - Confectionery - Laboratories - Medical - Food Industry - Agriculture - Cold Stores - Hospitals - Hotels - Stadiums - Ships

How Does Ebac DD-700 High Capacity Desiccant Dehumidifier Work?

Desiccant operation is simplistic yet extremely effective and reliable. Air (Process Air) is drawn into the dehumidifier, where it passes over a wheel impregnated with Silica Gel. As the air passes over this wheel, any moisture present in the air is absorbed into the Silica Gel wheel before leaving the dehumidifier as warm dry air. The Silica Gel wheel is continually, slowly rotating, typically at three revolutions per hour. As the wheel rotates, a small portion passes through the regeneration segment. During this phase, a second air stream (Regeneration Air) is heated to a high temperature before passing over the wheel. Any moisture present in the wheel is released into this air stream; this hot wet air is then exhausted outside the area being dried.

NOTE: The wet air outlet from the desiccant dehumidifier must be exhausted to outside of the room being dried by means of a suitable duct. All duct connections to the dehumidifier have been designed for connections to standard size ducts. The dry air outlet is also provided with a means of attaching a duct. This can be used to direct the air towards more severe damp patches.

Features of the Ebac DD700 Low-Temperature Desiccant Dehumidifier

• Stainless Steel Construction - Ensures a rust-free product when used in even the most severe of applications. Spigot connectors allow quick and easy installation.
• Electronic Controls - In addition to the hours run meter, which shows the units running time, an ammeter is also incorporated in order to monitor the units drying effectiveness.
• High Capacity Resistive Heater - Ensures maximum drying is immediately reached and constantly maintained while the unit is running.
• Remote Humidistat Facility - Can quickly and easily be connected for automatic operation and control.
• Low-Temperature Operation - Works effectively in sub-zero temperatures down to -4°F (negative four degrees Fahrenheit).
• Dual Inlet Air Filters - The DD700 desiccant dehumidifier has two separate filters. One in the "process" air inlet and one in the "reactivation" air inlet, used to clean the air entering the dehumidifier.
• Rubber Anti-Vibration Feet
• Auto/Manual mode selection

Specifications of the Ebac DD700 High Capacity Desiccant Dehumidifier

Dimensions	40" (H) x 28" (W) x 23" (D)
Weight	170 lbs.
Moisture Removal	High-Efficiency Setting - 184 pints per day (80°F., 60% RH) Deep Drying Setting - 205 pints per day (80°F., 60% RH) High Extraction Setting - 231 pints per day (80°F., 60% RH)
Operating Temperature Range	-4°F - 104°F
Duct Size	Regen Air (wet air) Duct to an outside space - 6" duct (95 CFM) Process Air (dry air) Can be directed to a specific area or another room - 8" duct (883 CFM)
Rotor Wheel Speed	13.6 RPH
Electrical	220V, 60 Hz, 3 Phase | 16 Amps | 6.2 kW 460V, 60 Hz, 3 phase | 8 Amps | 6.2 kW
Noise Level	67 d(B)A
Added Features	Operates in Sub-Zero Temperatures Dual Inlet Air Filters Carrying Handles
Ebac DD-700 Dehumidifier Owner's Manual - 220V
Ebac DD-700 Dehumidifier Owner's Manual - 460V
Ebac DD-700 Dehumidifier Product Brochure / Spec Sheet
What's In The Box?	Ebac DD700 Desiccant Dehumidifier Product Manual
Warranty	1 Year
