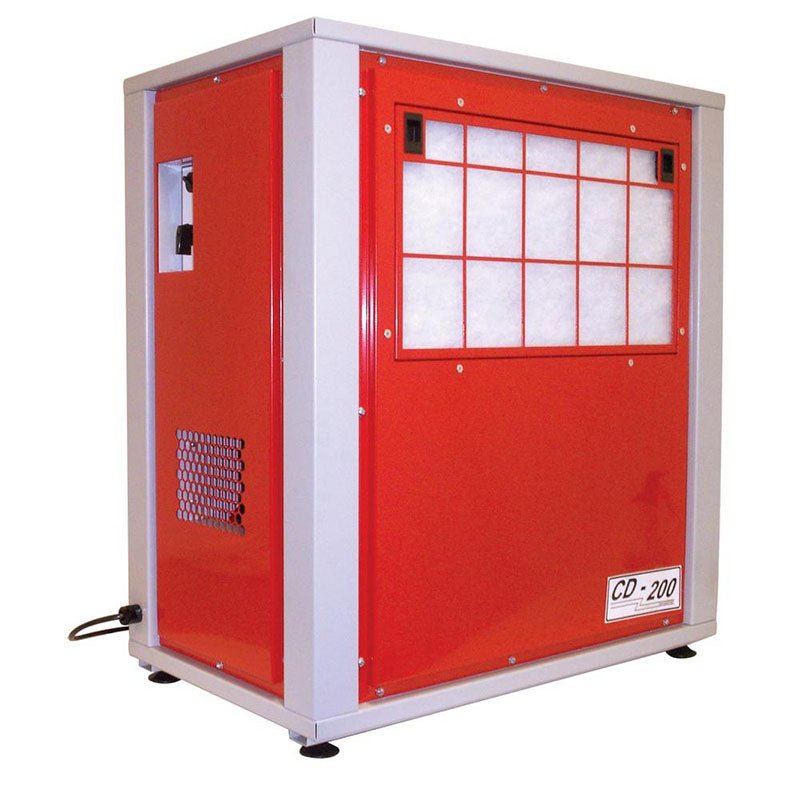

The Ebac CD-200 High Capacity, Low-Temperature Dehumidifier is Designed for High Humidity Problems in Harsh Environments
Eliminate moisture and humidity problems with the Ebac CD200 warehouse commercial dehumidifier. This dehumidifier workhorse is not just another pretty face; condensation and humidity damage can cost your business thousands of dollars every year in inventory and property damage. The CD200 is the answer to your damp and musty warehouse, factory, or office environment that could be breeding unhealthy mold or bacteria. It can easily remove over 137 pints of moisture per day in a variety of commercial and industrial applications including warehouses, factories, and offices.
Designed to work in a wide range of ambient temperatures, down to 33°F, and humidity conditions, the Ebac CD200 commercial dehumidifier will provide protection in any area without over-working your heating, cooling and ventilation systems. The CD200 warehouse dehumidifier performs exceptionally well as a single unit or can be set-up in multiples to provide moisture protection on any scale. Ducted applications are possible where design requirements specify.Â
How The Ebac CD200 Warehouse Dehumidifier Works
- Moist air is drawn into the unit by a fan
- The air passes over a cold surface
- As the air is cooled, it's moisture condenses
- The collected moisture drips into the container
- The cooled air is re-heated by the heat recovery system
- Air passes back into the room 2°C warmer and considerably dryer
- Defrost system automatically de-ices the unit as necessary
- The unit switches off automatically when the container is full
- When the unit achieves the selected level of dryness, it switches off automatically
Ebac CD200 Warehouse Dehumidifier Key Design Features
- Adjustable control humidistat to maintain the level of dryness
- Remote humidistat facility
- Integral condensate pump with a high capacity pumping height
- Ebac's unique temperature-sensitive "Reverse Cycle" defrosting feature which automatically melts away frost build-up providing effective operation in low ambient temperatures
- Quiet, 2-speed fan
- Washable air filter & easy release catch
- Self-contained for quick and easy installation - no ductwork required
- Can be ducted if desired -Â Includes inlet/outlet duct flanges
- Includes 25' detachable drainage hose
- Adjustable feet to facilitate easy installation
- Totally enclosed coils in an epoxy-coated, heavy gauge steel case
Ideal applications for the CD-200 Commercial Dehumidifier Include
Warehouses - Basements - Factories - Sports Halls - Storage Areas - Laboratories - Oil Rigs - Agriculture - Pumping Stations - Stadiums - Ships / Barges
Ebac CD-200 High Capacity Warehouse Dehumidifier Specifications
Dimensions |
32.7" H x 29.5" W x 17.5" D |
Weight |
176 lbs. |
Moisture Removal |
138 pints per day (80°F, 60% RH) > 190 pints per day @ saturation |
Operating Temperature Range |
33°F - 95°F |
Effective Area Coverage |
21,188 cubic feet |
Refrigerant |
R407C |
Airflow |
Low - 585 CFM | High - 664 CFM |
Noise Level |
73 d(B)A |
Compressor |
Reciprocating |
Electrical |
220V, 60 Hz, 1 Phase | 10.6 Amps (max) | 2,250 Watts |
Added Features |
- Internal high lift condensate pump
- Adjustable control humidistat
- Inlet / Outlet duct flanges included
|
Ebac CD200 Owner's Manual |
|
Ebac CD200 Product Brochure / Spec Sheet |
|
What's In the Box? |
- Ebac CD200 Dehumidifier
- Quick-release hose coupling
- 25' PVC Drain Hose
- Free issue socket
- Product Manual
|
Warranty |
One-year unconditional warranty against any manufacturing defects in workmanship or material. |
