Aqua Pointe™ is the Ultimate Choice for Re-Filling Water Bottles. It Provides Sparkling Clean & Chilled Water for your Patrons, Clients, and Employees with Easy Push-Button Operation.

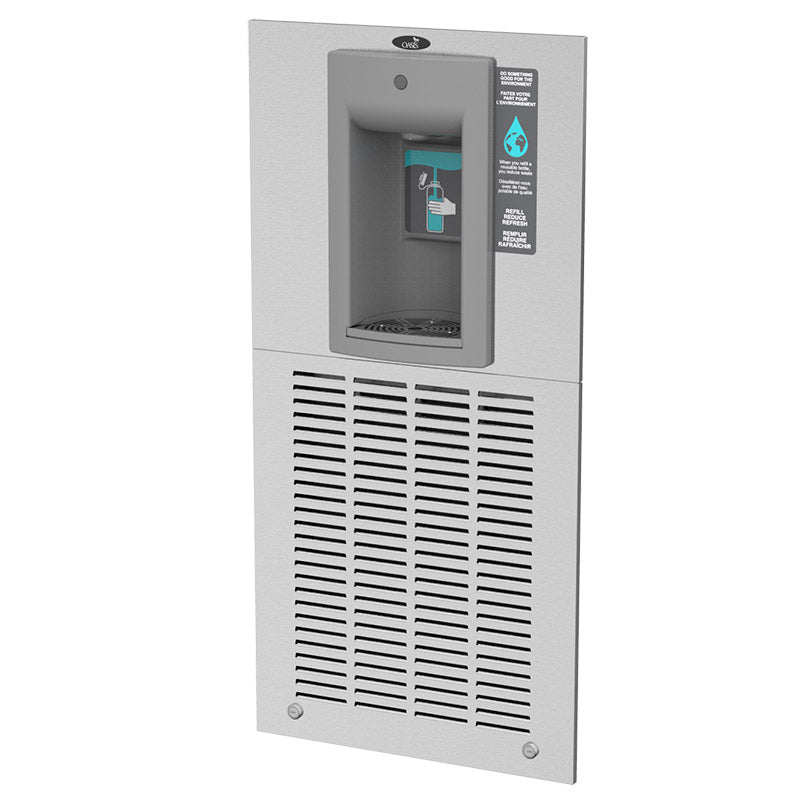

Filtered water never tasted so good with the Aqua Point Sports Bottle Filler. It's large 10-1/2" alcove (dispensing area) easily accommodates large sports bottles for easy, no-mess refills.
3 Bottle Filler Models to Choose From
- MWG8SBF delivers *8 gallons of chilled, filtered drinking water per hour.
- MWG12SBF delivers *12 gallons of chilled, filtered drinking water per hour.
- MWGSBF is a NON-REFRIGERATED unit and delivers an unlimited supply of filtered, ambient temperature water.
*(50°F) per hour (at 90°F ambient and 80°F inlet water).
Perfect for Gyms, Health Clubs, Medical Centers, Schools, Universities, Cafeterias, Public Traffic Areas, Etc.
Features of the Aqua Pointe MWG Series Bottle Filler
- Key molded components contain Freshield, which utilizes a silver-based antimicrobial compound that reduces the growth of micro-organisms and mildew to protect the surfaces from discoloration, odors, and degradation.
- Basin is designed to eliminate splashing and standing water.
- The cooling system utilizes R134a refrigerant.
- Built-in 100 micron strainer stops particles before they enter the waterway.
- Waterways are lead-free in both materials & construction.
- Heavy-duty steel frame with brushed stainless steel cabinet finish
- High-efficiency cooling tank and coil
- Mechanically activated, push-button water flow
- The filtration system is an activated carbon block filter that removes chlorine, tastes, odors, fine particulates, and lead from cold water. Capacity - 1000 USG.
- Removable front panels allow for easy access to the filtration and refrigeration unit.
- Shipped with wall mounting bracket and complete installation instructions.
Specifications of the Aqua Pointe MWG Series Bottle Filler
| Dimensions | 40-3/4" (H) x 19-3/4" (W) 11-5/16" (D) installed behind a wall |
| Weight | MWG8SBF - 78 lbs. MWG12SBF - 78 lbs. MWGSBF - 26 lbs. |
| Rated GPH Capacity |
MWG8SBF - 8 gallons of 50°F water per hour MWG12SBF - 12 gallons of 50°F water per hour MWGSBF - continuous supply of ambient temp. water |
| Compressor | MWG8SBF - 1/4 HP MWG12SBF - 1/3 HP |
| Full Load Amps | MWG8SBF - 4.8 MWG12SBF - 5.4 |
| Rated Watts | MWG8SBF - 550 MWG12SBF - 620 |
| Product Spec Sheet |  |
| ADA Compliant for reach ranges - These models meet guidelines for children's (ages 5 and up) accessibility providing the floor to button height is less than 40 inches and proper clear floor space is provided for frontal approach. (Prior to roughing, consult with local, state, and federal codes for proper mounting height.) | |
| Components in this fountain are lead-free as defined by the Safe Drinking Water Act Amendments of 1986, and the Lead Contamination Control Act of 1988. | |
| This product is certified to NSF/ANSI Standard 61 and is in compliance with California's Health and Safety Code Section 116875 (commonly known as AB1953). The green filter has been tested to ANSI / NSF Standard 42 - not by NSF. | |
| Models covered by the specification comply with all known Plumbing Codes. Listed by Underwriters' Laboratories to U.S. and Canadian standards. | |
