Smokeeter LS | Concealed Ceiling Commercial Smoke Eater Air Cleaner

The Smokeeter Model LS Concealed Electronic Air Cleaner provides a discreet way to clean the air in your business establishment. The Smokeeter Brand is well-known for providing the best air filtration systems.

400 - 1,300 CFM - 1 unit covers up to 2,700 sq. ft. Ionizer and Electrostatic collection cell included.
The LS Smoke Eater is installed above the ceiling or in an adjacent room for quiet and discreet air cleaning.

The Smokeeter model LS is great for cleaning the air in smoking areas including bars, casinos, nightclubs, and restaurants. PLUS - Smokeeters are also extremely effective in non-smoking environments where many harmful contaminants are invisible, including healthcare facilities, offices, and schools.

The LS concealed Smokeeter systems are an innovative concept in electronic air cleaners. Their flexibility enables these units to adapt to any situation or room configuration to effectively solve your particular air cleaning needs. The Smokeeter LS is ideal for locations where aesthetics are important because it is installed above the ceiling and is virtually out of sight. Only the supply and return grilles show. The LS operates quieter than other large-capacity air cleaners and can be ducted to multiple rooms because it is concealed.

How does the Smokeeter LS work?...

Dirty air is drawn into the Smokeeter LS system through inlet grilles, or Return Air Assemblies, which can be located in different areas. The air flows through Aluminized Flexible Ductwork and is directed to the Smokeeter LS via a 'Wye' Connection. Once inside the LS, pollutants and other harmful contaminants are removed from the air stream by the highly effective multi-stage filtration. Next, clean air is sent through more ductwork and another 'Wye' Connection, where it is discharged into different locations through louvered outlet grilles or Supply Air Assemblies. Smokeeter LS air cleaners are far superior to the competition because they use Electrostatic Precipitator (ESP) technology to remove contaminants like smoke, dust, pollen, bacteria, fungi, and viruses from the air. Harmful particles are drawn into the Smokeeter LS unit and given an electronic charge. Then, like a magnet, ESP Collection Cells capture the charged pollutants and send the contaminate-free air through a carbon after-filter to eliminate odors. The result: clean, fresh air circulated throughout the room.

Benefits of the Smokeeter LS Commercial Air Cleaner

In addition to ensuring cleaner air for your customers, guests, and employees, Smokeeters can actually lower utility bills. These systems keep cleaned air moving indoors instead of exhausting costly heated or cooled air outdoors. Also, Smokeeters use less energy than media units, which require more horsepower. These air cleaners can also reduce housekeeping costs by minimizing pollution build-up on walls, windows, and furnishings.

The Smokeeter LS works independently from your building's HVAC, so there is no need for complicated air handling calculations or replacing existing vents. These electronic air cleaners are available with a wide variety of their own ducts, grilles, and accessories allowing you to customize them to fit any room configuration. In fact, the best thing about the LS, with the intake and outflow separated by ducting, is you can set up an extremely effective airflow or air curtain that will continuously sweep away contaminated air from a bar or smoking section that prevents smoke from wandering into a non-smoking area.

Filtering Stages in the Smokeeter LS Concealed Air Cleaner

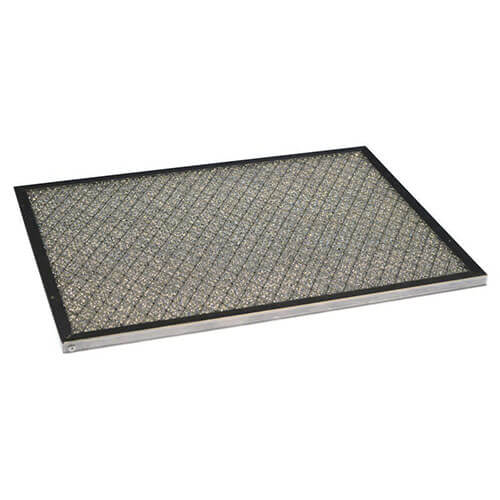

Stage 1 - Pre-Filter
The pre-filter traps the larger particles and evenly distributes the air as it passes through to the ionizing section of the Unicell.

Stage 2 - Ionizer
The ionizing section is made up of fine tungsten wires supported between metal plates. When high voltage is applied to these parts a 'corona' field is generated which imparts a high voltage charge on particles that pass through it.

Stage 3 - Electronic Cell
The electronic cell collection section is made up of a series of convoluted metal plates These plates act like a magnet and attract the charged particles, removing them, from the air. The plates are alternately charged positive and ground. The positive plates repel the particles while the ground plates attract them, yielding a very high efficiency.

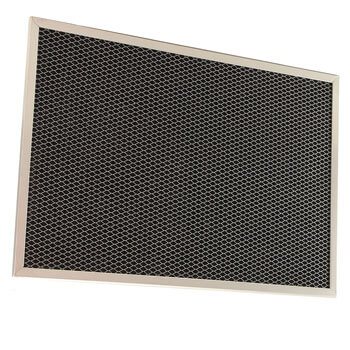

Stage 4 - Activated Carbon After-Filter
Carbon aids in the removal of odors from the air. The carbon after filter removes any residual odors from the system and polishes the air as it exits the system.

Optional - Plenum with 18 Pounds of Activated Carbon
In addition to the carbon after-filter, an optional carbon module, or plenum, holds an additional 18 pounds of activated carbon. Carbon is an excellent adsorbent used to combat strong, pervasive odors. The 20-gauge steel plenum in the Smokeeter LS holds six (6) 3-pound trays of carbon. Its 16-inch inlet/outlet collars allow the Carbon Plenum to connect to either flexible or hard duct. The optional carbon plenum adds 16-7/8 inches to the length of the Smokeeter LS.

The Following Accessories are for Information Purposes Only and Should be Purchased Locally...

(Please refer to the Owner's Manual / Installation guide for more information.)

• Supply Air Assembly - The Supply Air Assembly, or outlet grille, re-circulates clean air into the room.

• Aluminized Flexible Duct - The Aluminized Flexible Duct allows users to channel air up to 25'.

• Wye - 'Y' - Connection - The Wye Connection is a device used to direct air to more than one area of a room.

• Return Air Assembly - Designed to draw air into a concealed Smokeeter.

Smokeeter LS Concealed Ceiling Air Cleaner Specifications

Capacity	Up to 2,700 Sq. Ft.
Three Speed - CFM	High - 1,300 | Medium - 1,050 | Low - 400
Installation Options	Above ceiling with supply/return assemblies
Dimensions	46-1/2" L x 19-5/16" W x 21" H
Cabinet Construction	Steel
4 Stage System	Pre-Filter - Aluminum Mesh pre-filter traps larger particles and evenly distributes the air across the ionizing section to maximize efficiency Ionizer - The ionizing section electronically charges the airborne pollution particles Electrostatic Cell - 'Magnetizes' the electronically charged particles to collector plates where they are held until cleaned Carbon After-Filter - Activated Carbon after-filter helps to control odors and polishes the air coming out of the unit
Particle Removal	As small as 0.01 microns
Weight	Shipping - 157 lbs. | Hanging - 150 lbs.
Electrical	8.4 amps | 115V | 60 Hz
Power Consumption	900 Watts (max)
Warranty	1 year limited warranty
Certifications	All electrical components and fan motor are ETL listed
