MovinCool Climate Pro X14

13,200 BTU Portable Spot Cooler

115V

Owner's Manual

MovinCool Climate Pro X14

Name: MovinCool Climate Pro X14
Brand: Spot Coolers
SKU: MC-CPX14
Price: 5023.5 USD
Availability: InStock

13,200 BTU Portable Spot Cooler

115V

$5,023.50

Usually ships in 5 days; up to 10 for some models

Free Shipping

Bulk order? Request a quote

About this product

The MovinCool Climate Pro X-14 Portable Spot Cooler is a Powerful Cooling Solution for even the Hottest Assembly Lines and Factories

The versatile and newly designed Climate Pro X14 Portable Spot Cooler is ready to provide cool air to the hottest environments. Loaded with new features, the Climate Pro X14 provides 13,200 BTU/h of cooling while operating on standard 115V power. It provides powerful cooling in areas with temperatures up to 113°F. Built-in flanges and 2-Quick Connect nozzles (included) provide plug & play operation. Wrap-around bumpers make it the perfect cooling appliance for rugged environments. Easy to use digital controls and auto operation provide 24/7 programmable back-up of central systems.

The MovinCool Climate Pro X14 is the perfect cooling solution for Warehouses, Assembly Lines, Manufacturing Plants, Factories, Process Cooling, Construction Sites, Moisture Removal, and more.

By cooling only the area that needs it, the MovinCool Climate Pro X14 portable spot cooler saves you money while protecting people and equipment, and by speeding up processes. Self-contained and portable, the Climate Pro X14 requires little or no installation—simply roll it in, plug it in and turn it on.

Production lines, manufacturing processes, injection molding, metal forming, and people, can benefit from spot cooling. Air-cooled portable air conditioners are most often the system of choice for end-users and industry professionals looking for effective spot cooling systems. The fact that air-cooled portable air conditioning units can be installed almost anywhere - usually in minutes - explains their popularity as server room air conditioners, data center air conditioners, and cooling systems for a wide range of other applications.

MovinCool Climate Pro X14 Portable Spot Cooler Features

Programmable digital electronics provide automatic operation after hours and on weekends.
Operates on standard 115V power.
Powerful 13,200 BTUs for maximum spot cooling to just the spot that needs it.
Cools the hottest environments in temperatures up to 113°F.
Wrap around bumper system protects against scratches and dents.
Built-in exhaust flanges with protective grille.
Standard quick-connect nozzles provide a time-saving setup.
Condensate tank is hidden behind the easy-open access door.
Convenient cord storage cubby on the rear of unit.
Wireless connectivity-ready for remote monitoring and e-notifications of performance.
Effective moisture removal for quick drying in humid and water-damaged areas.

Best for

Warehouses and manufacturing floors - cool hot workstations and assembly or packing lines.
Shipping and receiving bays and loading docks with heat spikes at doors.
Process cooling at injection molding, CNC machines, robotics, and presses.
Distribution centers and logistics operations need targeted, flexible spot cooling.
Server rooms, network closets, and telecom spaces—supplemental or emergency backup cooling.
Temporary cooling during HVAC outages, maintenance shutdowns, or seasonal heat waves.

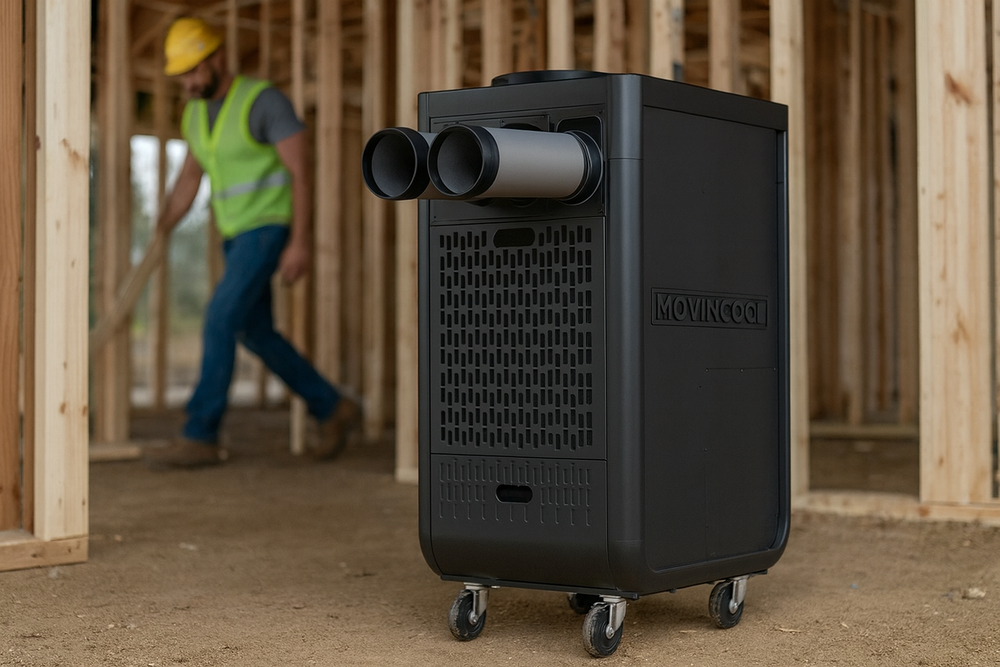

Construction sites and buildouts require portable, plug‑in cooling.
Electronics labs, test benches, and light industrial work cells.
Tool rooms, maintenance shops, and machine enclosures.
Humid or water‑damaged areas need moisture removal during drying.

Specifications

Cooling Capacity	13,200 BTU/hr (95°F @ 60% RH)
Electronic Features	Programmable Control Panel
Electrical	115V, 1 Phase \| 1.3 kW \| 11.5 Amps Recommended Fuse Size - 15 Amps Min/Max Voltage 104 / 127
NEMA Plug Configuration	14 AWG (3-core) 10-foot power cord
Fan Motor Output	0.23 kW
Evaporator	Fan Type - Centrifugal Max Air Flow (High/Med/Low) - 440 / 410 / 385 CFM Max External Static Pressure - 0.31 IWG
Condenser	Fan Type - Centrifugal Max Air Flow (High/Med/Low) - 830 / 770 / 720 CFM Max External Static Pressure - 0.19 IWG
Compressor	Hermetic Rotary - 0.75 kW
Refrigerant	R-410A

Certifications

MovinCool's Office Pro, Classic, Classic Plus, and Climate Pro models come standard with 1-year parts and labor coverage. Registered products are eligible to receive full 3-year parts and labor coverage including the compressor.

What's in the box

MovinCool Climate Pro X14 Portable Spot Cooler
2 Cool Air Outlet Ducts
Product Manual

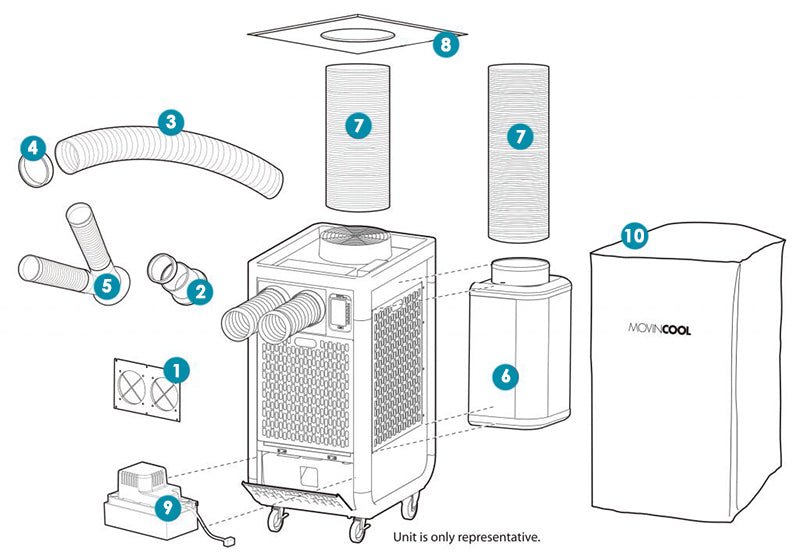

Installation tips

All accessories are sold separately.
All accessories are sold individually unless otherwise noted.
Exhaust duct required in most cases.

All MovinCool Climate Pro X-Series Spot Coolers include two 5-inch diameter Quick-Connect adjustable nozzles.

1. Quick-Connect Dual Duct – 484209-0500
Easily change the (included) 5-inch quick-connect single nozzles to dual-duct nozzles that extend up to 2-feet in length. Divide each 5-inch nozzle opening into two 4-inch outlets to multiply your cooling options.

If your application requires cooling further away from the unit than 2-feet, the following accessories are recommended.

2. Two Hole Base Plate (Supply Air Nozzle Adapter Kit) - 481769-0310
Base plate has two 5-inch diameter holes to convert the airflow from factory-installed quick-connect nozzles to extended nozzles.

3. Supply Air Flange Kit - 481170-0450
5-inch diameter flange kit includes wire clamp and mounting screws. (Used to attach the self-supported cold air duct to the two-hole base plate.)

4. Self-Supported Cold Air Duct - LA481744-0420
5-inch diameter self-supported duct extends from 6.5-ft to 10-ft in length. Provides specific, directional airflow.

5. Trim-Ring - 481851-0200
5-inch diameter Trim Ring mounts on the end of the self-supported duct.
(Not required, but the trim ring prevents sharp edges and/or unraveling and completes the look.)

6. Outdoor Air (Heat Exchanger) Plenum - 484350-1160
For Negative Pressure Rooms - When balanced airflow is required, attached the outdoor heat exchanger plenum with a 12-inch diameter duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative pressure. It attaches to the condenser intake side of the unit and is hinged for filter cleaning.
(Use with 12-inch Self-Supported Duct #7 or 12-inch Flexible Duct #9.)

7. Self-Supported Warm Air Duct / Negative Pressure Condenser Intake Air Duct - LA481744-0410
12-inch diameter Self-Supported Exhaust Duct extends up to 10-ft in length.
(Used as a warm air exhaust duct or intake duct with negative pressure air plenum.)

8. Ceiling Tile Exhaust Kit - HDK-12
MovinCool makes it easy to remove exhaust air. Simply replace your existing ceiling tile with the HDK-12 Ceiling Tile Exhaust Kit. Place the Exhaust Flex Duct on top of the MovinCool unit and insert it into the specially cut ceiling tile.
Includes 1) 2-ft x 2-ft Ceiling Tile with 8-ft of 12-inch diameter Flexible Exhaust Duct.

9. Flexible Duct – LAY45771-0060
12-inch diameter x 8-ft Flexible Air Duct. Can be used in place of the Self-Supported duct.

10. Condensate Pump 115V - 484789-0210
No need to bother with manually emptying the tanks. The condensate pump will remove the water automatically to any remote drain. Maximum lift – 17-ft. Includes 3/8-inch diameter x 20-ft length drainage hose + installation hardware.

11. Storage Cover - LA484420-0870
Durable black nylon oxford unit storage cover. Dimensions - 22-3/4 x 29-3/4 x 42-3/4 inches.

Frequently asked questions

What does the Climate Pro X14 cool best?
It’s sized for one to two heat-dense workstations, equipment areas, or small server/telecom rooms. Larger zones or heavy process loads may need multiple units.

Does it plug into a standard outlet?
Yes. It uses a 115V, 15A dedicated circuit with a NEMA 5-15P plug.

How much power does it draw?
About 1.3 kW at full load (~11 A).

Do I need to vent the hot air?
Yes. Hot-air exhaust ducting is required in most installations. Exhaust is typically run to a ceiling plenum or outdoors. Max hot-air duct length: up to 60 ft and Max cold-air duct length: up to 30 ft

What’s the energy efficiency?
Approximate EER ~10.2 (based on 13,200 BTU/h and 1.3 kW input).

What’s included?
The unit has two 5-inch adjustable cold-air nozzles.
Hot-air ducting, ceiling-tile kits, cold-air ducts, and condensate pump kits are optional.

How is condensate handled?
There is a built-in 5-gallon tank. When full, the unit shows “FL” and shuts off until emptied.
For continuous operation, add the optional condensate pump kit.

How loud is it?
Approximately 57–60 dB(A), depending on fan speed and ducting.

What is the operating temperature range?
Designed for ambient temperatures ranging from 70–113°F.

Can the cold-air nozzles be moved to the top?
Yes. The nozzles can be relocated from the front to the top during installation.

What are the airflow ratings?

Cold-air supply: up to 440 CFM
Hot-air exhaust: up to 830 CFM

What are the dimensions and weight?
22″ W × 29″ D × 48″ H, 165 lb, with locking casters to fit through standard doorways.

Which refrigerant does it use?
The X14 uses R-410A. (A separate X14e version uses R-32 and has a different efficiency.)

What is the warranty?
1 year standard, or 3 years with product registration.

Which accessories are most commonly used?
Hot-air exhaust duct, ceiling-tile kit, cold-air extension duct, dual-duct nozzle, condenser-air plenum, and condensate pump kit.
