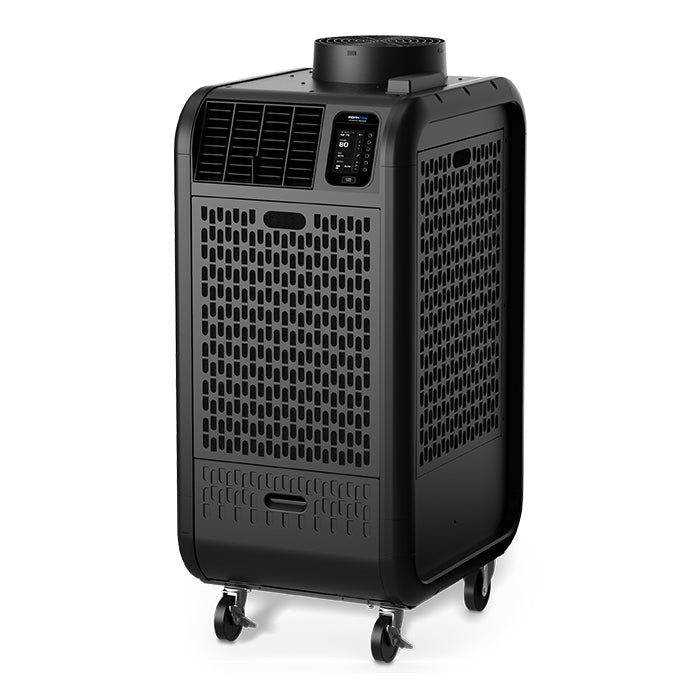

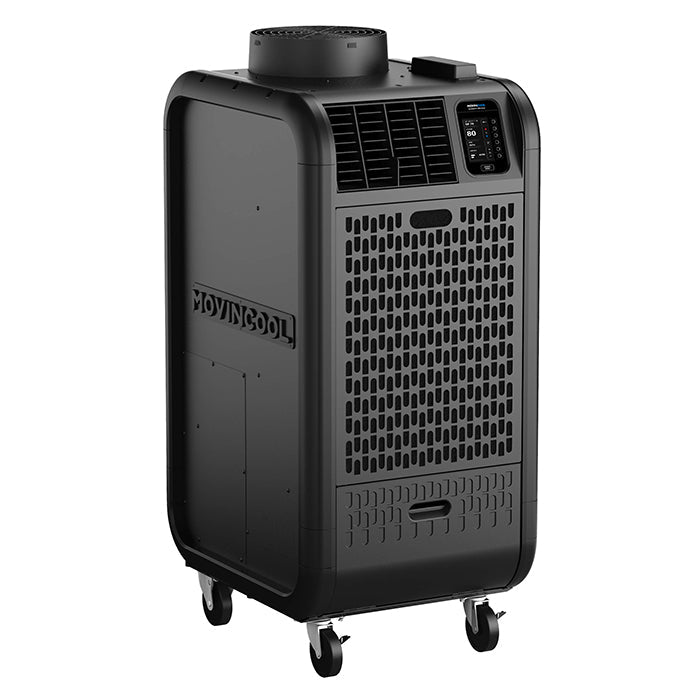

MovinCool Climate Pro K24 | 24,000 BTU Portable Air Conditioner - 208/230V

The MovinCool Climate Pro K24 Portable Air Conditioner Provides Reliable Spot Cooling to Computer Server Rooms, Telecommunication Rooms, and Rooms with Heat Generating Electronics

The MovinCool Climate Pro K24 Portable Air Conditioner is designed for offices filled with heat-generating electronics. Computer server rooms, networks, communications, and office equipment can shut down when the temperature rises, crippling daily operations. By spot cooling the area or room that needs it, the Climate Pro K24 saves money while protecting your company's investment in equipment and customers. Self-contained and portable, the Climate Pro K24 portable air conditioner requires no costly installation - simply roll it in, plug it in and turn it on.

The MovinCool Climate Pro K24 is a portable and self-contained spot cooling unit. Server rooms, computer rooms, data centers, telecommunication rooms, offices, etc. can all benefit in workplace efficiency and energy-savings by installing the Climate Pro K24.

MovinCool Climate Pro K24 Portable Air Conditioner Features

• Color LCD control panel. Simplifies operation, clearing of codes, and is easier to read.
• Matte black cabinet brings stylish utility to the workplace.
• Added bumpers enable safer handling and movement around your facility.
• Larger casters make rolling and navigation easier.
• Built-in cable compartment. Keeps the power cord securely out of the way.
• Hinged tank cover. Keeps drain tank secure.
• Ergonomic drain tank design. Makes for easier handling and emptying.
• Built-in flanges. Standard on all models — no add-ons needed.
• Modest power usage. Runs on 208/230V 20 amp circuit and consumes 2.9 kW.
• Cooling support effective in conditions from 65° to 95°F.
• Moderately quiet. At highest speed with condenser duct, sound level 66 dB(A) — similar to sound levels for conversation.

MovinCool Climate Pro K24 Portable Air Conditioner Technical Specifications

Cooling Capacity	24,000 BTU/h (95°F @ 60% RH)
Electronic Features	Programmable Control Panel
Electrical	208 / 230V, 1 Phase | 2.9 kW | 12.5 Amps Recommended Fuse Size - 20 Amps Min/Max Voltage - 198 / 253
Power Cord	12 AWG (3-core) - 6 feet
NEMA Plug Configuration	6-20 - See Chart Here
Fan Motor Output	3-Speed - 0.56 kW (H)
Evaporator	Fan Type - Centrifugal Max Airflow (CFM) - 650 (H) | 600 (M) | 530 (L) Max External Static Pressure - 0.5 IWG
Condenser	Fan Type - Centrifugal Max Airflow (CFM) - 870 (H) | 760 (M) | 740 (L) Max External Static Pressure - 0.16 IWG
Compressor	Hermetic Rotary - 1.5 kW Output
Refrigerant	R-410A
Dimensions	22" (W) x 27" (D) x 51" (H)
Weight	Net - 205 lbs. | Shipping - 243 lbs.
Condensate Tank Capacity	5 Gallons
Operating Temperature	65°F - 95°F @ 50% RH
Max Duct Length	Cold Duct Hose - 50 ft. Hot Duct Hose - 45 ft.
Sound Level dB(A)	With Condenser - 66 (H) | 64 (M) | 61 (L) Without Condenser - 68 (H) | 66 (M) | 63 (L)
MovinCool Climate Pro K24 Product Brochure
MovinCool Climate Pro K24 Owner's Manual
What's In The Box?	MovinCool Climate Pro K24 Portable AC Unit Product Manual
Warranty	MovinCool's Office Pro, Classic, Classic Plus, and Climate Pro models come standard with 1-year parts and labor coverage. Registered products are eligible to receive full 3-year parts and labor coverage including the compressor.
NOTE: All specifications subject to change without notice. All models feature compressor overload relay and fan motor protection. All models feature compressor short-cycle protection, return air thermostat, automatic restart and accommodate a condensate pump kit. All models are 50 Hertz (Hz) compatible with a slight performance decrease from the specifications listed above.

MovinCool Climate Pro K-24 Installation and Accessory List

All accessories are sold separately.
All accessories are sold individually unless otherwise noted.
Exhaust duct required in most cases.

1. Quick Connect Two Hole Adapter/Flange Base Plate - 481170-0480
Base Plate has two 5-inch diameter Quick Connect holes with molded flanges. Includes wire clamp and mounting screws.
(Use with #2 quick connect nozzle(s).)

2. Quick Connect Nozzle Kit - 484209-0480
5-inch diameter Quick-Connect Nozzle extends up to 2-ft in length. Includes trim ring.
(Use with #1 quick connect adapter/flange base plate.)

3. Two Hole Base Plate - 481769-0280
Base plate has two 5-inch diameter holes to convert the airflow from factory-installed louvers to nozzles or air ducts.

4. Supply Air Flange Kit - 481170-0450
5-inch diameter flange kit includes wire clamp and mounting screws. (Used to attach the self-supported cold air duct to the two-hole base plate.)

5. Self-Supported Cold Air Duct - LA481744-0420
5-inch diameter self-supported duct extends from 6.5-ft to 10-ft in length. Provides specific, directional airflow.

6. Trim-Ring - 481851-0200
5-inch diameter Trim Ring mounts on the end of the self-supported duct.
(Not required, but the trim ring prevents sharp edges and/or unraveling and completes the look.)

7. Outdoor Air (Heat Exchanger) Plenum - 484350-1170
For Negative Pressure Rooms - When balanced airflow is required, attached the outdoor heat exchanger plenum with a 12-inch diameter duct from the side of the unit to an outside air source. The air to the outdoor heat exchanger is pulled from outside the room to eliminate problems associated with negative pressure. It attaches to the condenser intake side of the unit and is hinged for filter cleaning.
(Use with 12-inch Self-Supported Duct #8 or 12-inch Flexible Duct #10.)

8. Self-Supported Warm Air Duct / Negative Pressure Condenser Intake Air Duct - LA481744-0410
12-inch diameter Self-Supported Exhaust Duct extends up to 10-ft in length.
(Used as a warm air exhaust duct or intake duct with negative pressure air plenum.)

9. Ceiling Tile Exhaust Kit - HDK-12
MovinCool makes it easy to remove exhaust air. Simply replace your existing ceiling tile with the HDK-12 Ceiling Tile Exhause Kit. Place the Exhaust Flex Duct on top of the MovinCool unit and insert it into the specially cut ceiling tile.
Includes 1) 2-ft x 2-ft Ceiling Tile with 8-ft of 12-inch diameter Flexible Exhaust Duct.

10. Flexible Duct – LAY45771-0060 (not pictured)
12-inch diameter x 8-ft Flexible Air Duct. Can be used in place of Self-Supported duct.

11. Condensate Pump 230V - 484789-0220
No need to bother with manually emptying the tanks. The condensate pump will remove the water automatically to any remote drain. Maximum lift – 17-ft. Includes 3/8-inch diameter x 20-ft length drainage hose + installation hardware.

12. Storage Cover - LA484420-0690
When your MovinCool Portable Spot Cooler is not in use, protect it with this durable black nylon oxford unit storage cover.
