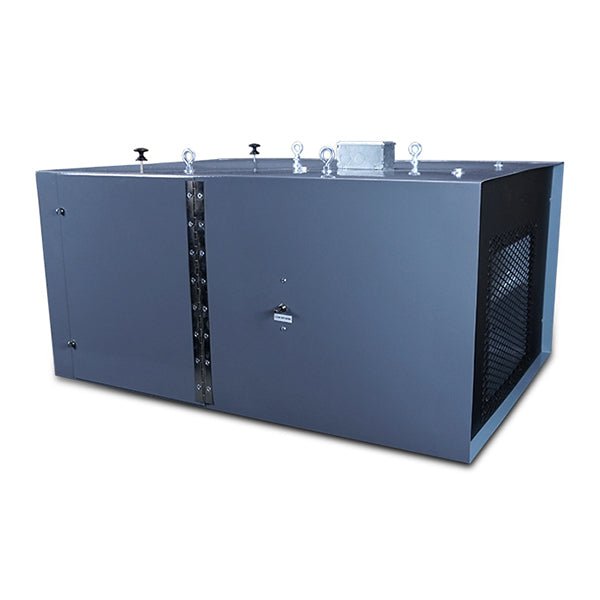

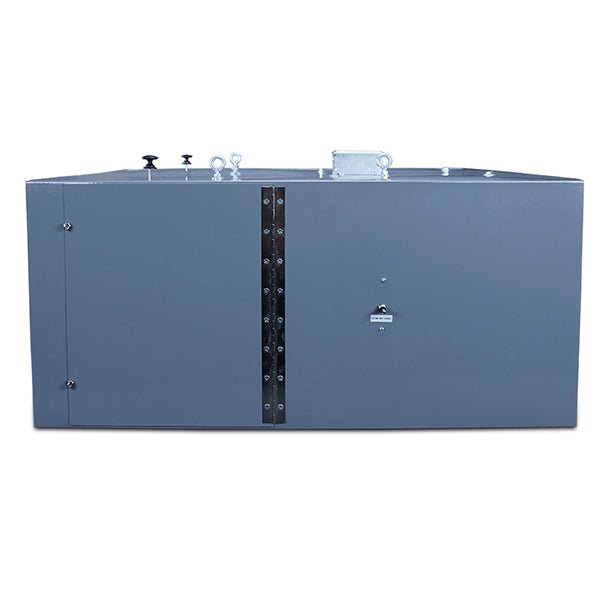

SED-2000V | Ducted Air Purifier for Large Smoking Environments - 1450-1650 CFM

First Year Filters Included!

For areas up to 2,000 sq. ft., High Efficiency filtration combined with 18 pounds of carbon removes odors & gases. 1,450 - 1,650 CFM (2-speed) - Installation hardware included.  Read More...

SKU: SED-2000-V

Regular price
Sale price

The Powerful SED-2000V Ducted Filtration System Provides Excellent Clean Air Results in Large Smoking Areas

1,450 - 1,650 CFM (2-speed) for rooms or large smoking areas up to 2,000 sq. ft. Includes installation hardware PLUS all filters needed for the first year!

Designed for unobtrusive, ducted installation, the SED-2000V works effectively in areas up to 2,000 sq. ft. The SED Air Cleaner is suitable for homes, offices, or commercial establishments. It's not intended to be installed in line with existing HVAC ductwork but rather works independently with its own ducting configuration.

Installation options for the SED-2000V include;

  • Above a solid ceiling or suspended ceiling
  • In a basement, attic, or crawl space
  • In a utility room, furnace room, closet, etc.

Inflow and outflow air circulation can be customized to your specifications. Consult your HVAC contractor for installation and required ducting (not included). Its efficient multistage High Efficiency/Carbon filtering assures quality indoor air year-round. All 3 filters on the SED-2000V air cleaner are easily accessible. 1 unit recommended for every 10,000 cubic feet.

3-Filter System provides Excellent Air Filtration Results

The SED-2000V Concealed High Efficiency Filter System uses a powerful blower to draw the air from smoke-filled areas. As the air is drawn through the high-efficiency filter media, 95% of the tobacco smoke particles are removed on each pass. The clean air that is constantly discharged into the area is refreshing and remarkably free of tobacco smoke and other contaminants.

Stage 1 - Pre-Filter
The pre-filter is important because not only does it remove the larger particles, it also helps prolong the life of the High Efficiency filter in the system. Essentially, the pre-filter is the first line of defense in maintaining your system; therefore promoting better indoor air quality.
Twelve Polyester pre-filters are supplied with each system. Pre-filters cannot be washed and must be changed monthly.

Stage 2 - 18 Pound Carbon V-Bank Filter
The 18 pound Carbon V-Bank Filter in the SED-2000-V is an great choice for cigar, cigarette, and marijuana odors. Activated Carbon removes odors by absorbing gases & VOCs into the porous carbon granules. Think of carbon as an odor sponge. It can hold many times its weight in odor molecules. Once carbon becomes saturated, however, it loses its efficiency. Therefore, proper maintenance of the carbon filter is required to keep your environment fresh & clean smelling.
One 18 Pound Carbon V-Bank is included with each unit. The Carbon V-Bank Filter cannot be washed and should be changed annually.

Stage 3 - High Efficiency Filter
The High Efficiency filter removes the very small particles, such as smoke (tobacco, burning wood, oil, rosin), dust mites, spores, mold spores, pollen, spray paint, spray paint dust, ashes, cement dust, auto emissions, textile fibers, fiberglass, hairspray, insecticide dust, copier toner, and most viruses just to name a few. The High Efficiency filter is extremely important for superior air filtration and when used and maintained properly it will dramatically improve your indoor air quality. We cannot stress enough the importance of the High Efficiency filter to our system and the fact the High Efficiency filter must be maintained in order to achieve the maximum results.
One 6-inch High Efficiency Filter is supplied with each SED-2000V air cleaner. The High Efficiency filter cannot be washed and should be changed annually.

OPTIONAL - Factory Installed Remote Control

Optional Factory-Installed Remote Control is available for the SED-2000 Ducted Air Filtration System for Large Smoking AreasEasily control the settings on your SED-2000V Concealed Smoke Eater with a handy Remote Control Key Fob. It's an excellent choice for concealed systems. Each receiver is factory installed and comes with 2 battery-operated remote control key fobs. (Multiple air cleaners require a separate receiver/transmitter for each unit.) Receiver / Transmitter range is approximately 100 feet under normal operating conditions.

Features and Benefits of the SED-2000V Ducted High Efficiency Air Filter System

  • Powerful 2-Speed Blower - Effectively draws the air from polluted areas.
  • High-Efficiency Filter Media - Over 95% of the airborne particles are removed on each pass.
  • Refreshingly Clean Air - Virtually all of the smoke, pollen, dust, and other particles are removed from the air that passes through the SED-2000V, including microscopic airborne particles.
  • Reduced Discomfort - Discharged air is cleaned of the many pollutants that can cause headaches, eye irritation, discomfort, and stuffiness.
  • Reduced Odors - Offensive odors including smoke residue that absorb into clothing, furniture, and carpeting are reduced.
  • Reduced Allergies & Asthma - Lowering the pollen, spores and fungi count helps to reduce allergies and asthma that may be caused by these contaminants.

SED-2000V Concealed High Efficiency Air Filtration System Specifications

Capacity Up to 2,000 Sq. Ft.
Two Speed (Toggle Switch) High - 1,650 CFM | Low - 1,450 CFM
Dimensions 36" (L) x 24.125" (W) x 24.125" (H)
Cabinet Construction 16 gauge gray steel cabinet
Shipping Weight 160 lbs.
Electrical 120V** | 9.0 Amps | 1/2 Hp Motor
Three Filter System Includes 1 Year Supply of Filters;
(1) 6-inch 95% High Efficiency Filter
(1) Carbon V-Bank
(12) 1/2-inch Pre-Filters
Warranty 1 Year Manufacturer's Warranty
Certifications Fan motor and all electrical components are UL Listed and CSA Certified
This unit has not been tested for compliance with California Air Resource Board requirements and cannot be shipped to California.
** The SED-2000V concealed air cleaner is designed to be wired to a 120 VAC power source. All wiring shall meet local codes.
NOTE: The SED series is designed for contractor-installed ducted use. At a minimum, there should be at least one supply and one return per unit. Contact your local HVAC Contractor for installation and required ducting (not included).
NOTE: The SED-2000V is equipped with 4 eye bolts installed on each system. Also included are 4 "S" hooks and 20' industrial hanging wire.
This item ships by freight truck. Please refer to our shipping policy by clicking here.
